3VR1

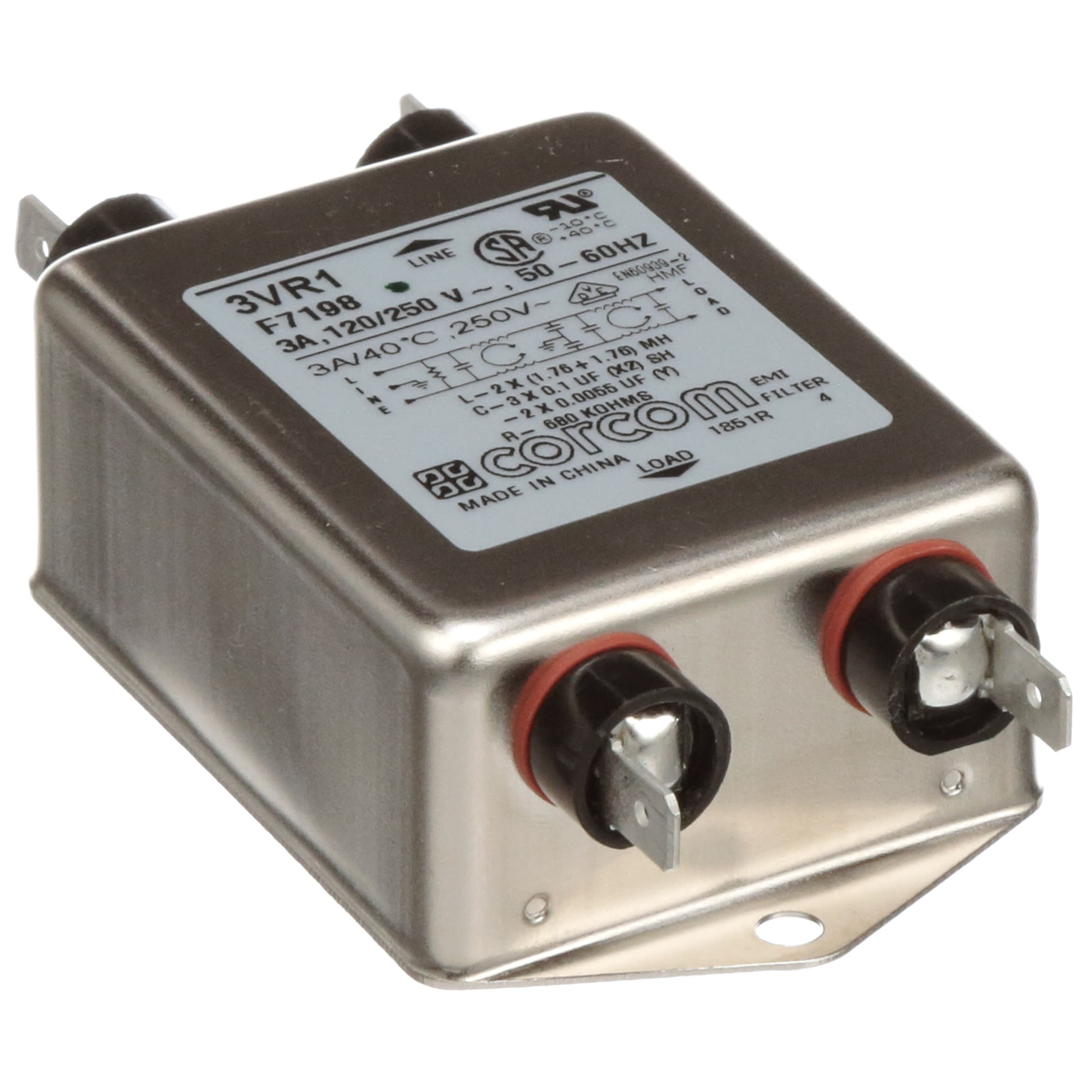

Filter, General Purpose, 3 A, 2250 VDC (Line to Ground), 250 VAC (Max.), | TE Connectivity 3VR1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 3VR1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 3VR1
| Part Name | 3VR1 |
| Manufacturer | TE Connectivity |
| Category | Circuit Breakers, Fuses & Protection |
| Mount Style | Flanged |
| Current Rating (A) | 3 |
| Operating Temperature Range | -10 – 40 |
| TE Internal Number | 6609032-5 |
| Output Type | .250" FASTON |
| Leakage Current (Max) (250VAC, 50Hz) (A) | .7 |
| Leakage Current (Max) (120VAC, 60Hz) (A) | .4 |
| Ground Choke Option | No |
| Voltage (Max) (V) | 250 |
| Input Type | .250" FASTON |
| Filtered | Yes |
| Filter Type | Power Line |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
