4-1123723-4
SnapVerified
Conn Wire to Board HDR 4 POS 3.96mm Solder ST Thru-Hole Bag
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-1123723-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

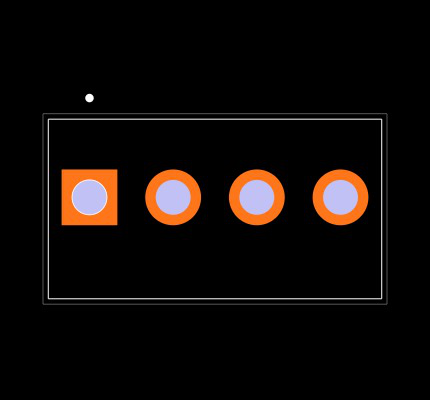

Footprint
No web preview
This Footprint is Available for

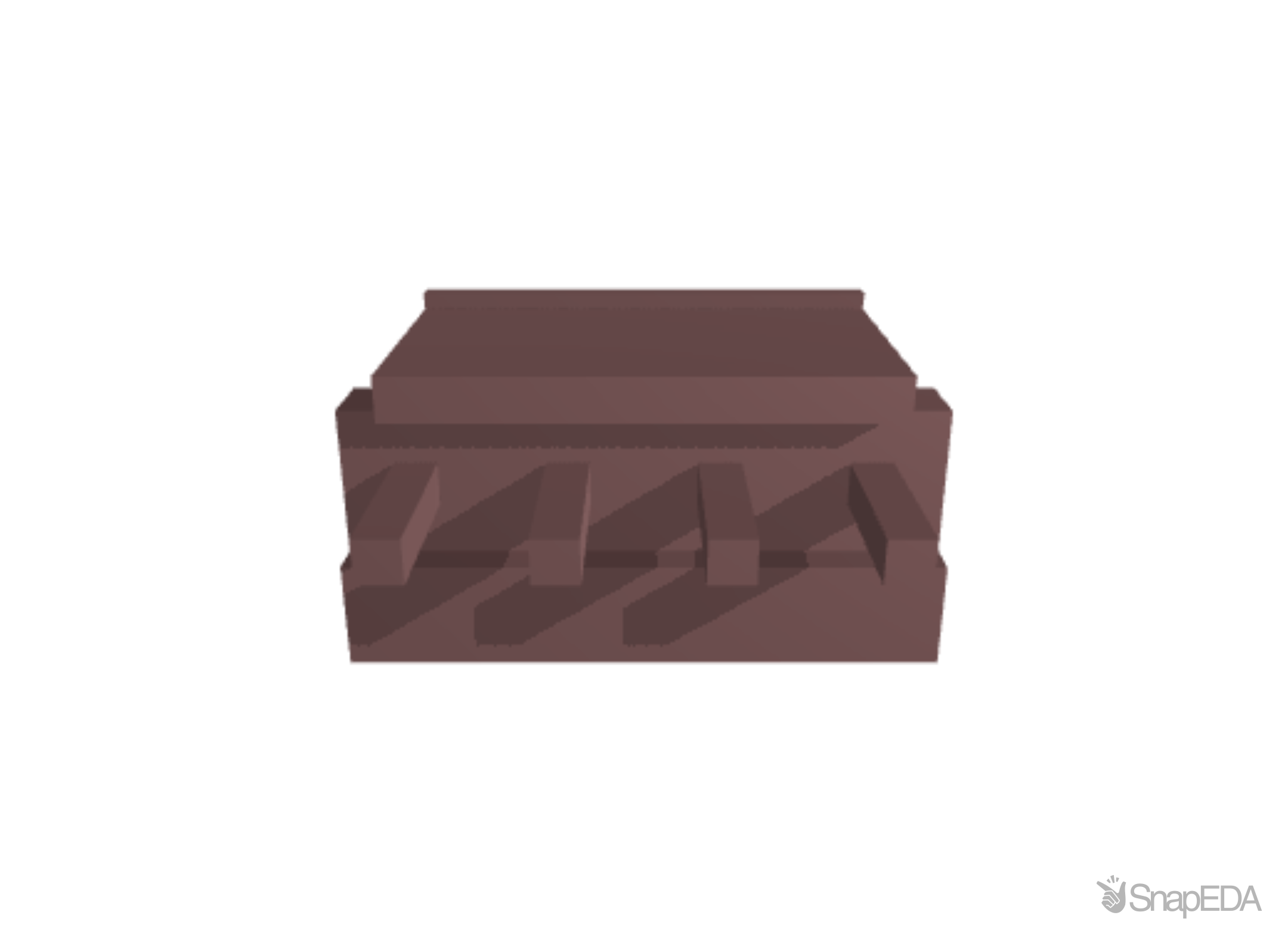

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-1123723-4
| Part Name | 4-1123723-4 |
| Manufacturer | TE Connectivity |
| Contact Termination Area Plating Material | Tin |
| Centerline (Pitch) | .156 |
| Circuit Application | Power |
| Mating Retention Type | Latch |
| Housing Material | PBT GF |
| Width | 10.7 |
| Contact Termination Area Plating Thickness | 100 |
| Number of Power Positions | 4 |
| Operating Voltage (V) | 250 |
| For Use With | Plug Housing |
| Connector & Contact Terminates To | Printed Circuit Board |
| Stacking Configuration | End to End |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | .125 |
| Mating Post Length | 7.7 |
| TE Internal Number | 4-1123723-4 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Housing Type | Plug |
| Housing Color | Red |
| Header Type | Unshrouded |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -25 – 105 |
| Number of Rows | 1 |
| Packaging Method | Bag |
| Packaging Quantity | 2500 |
| Contact Layout | Inline |
| Length | .621 |
| Number of Positions | 4 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Sealable | No |
| Contact Retention | Without |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Height | 8.2 |
| Contact Current Rating (Max) (A) | 8 |
| Contact Mating Area Plating Thickness | 1 |
| Product Type | Header |
| Connector Profile | Low |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the 4-1123723-4
