4-1734598-4
SnapVerified
1.25 WTB HDR DIP L3.7 4 POS
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-1734598-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

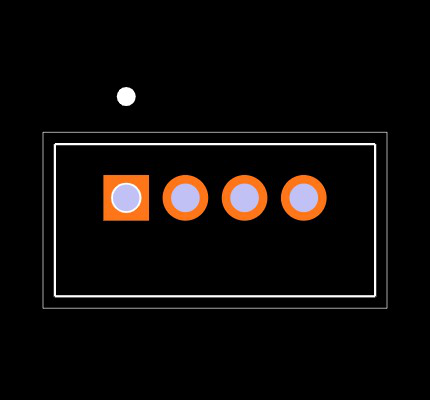

Footprint
No web preview
This Footprint is Available for

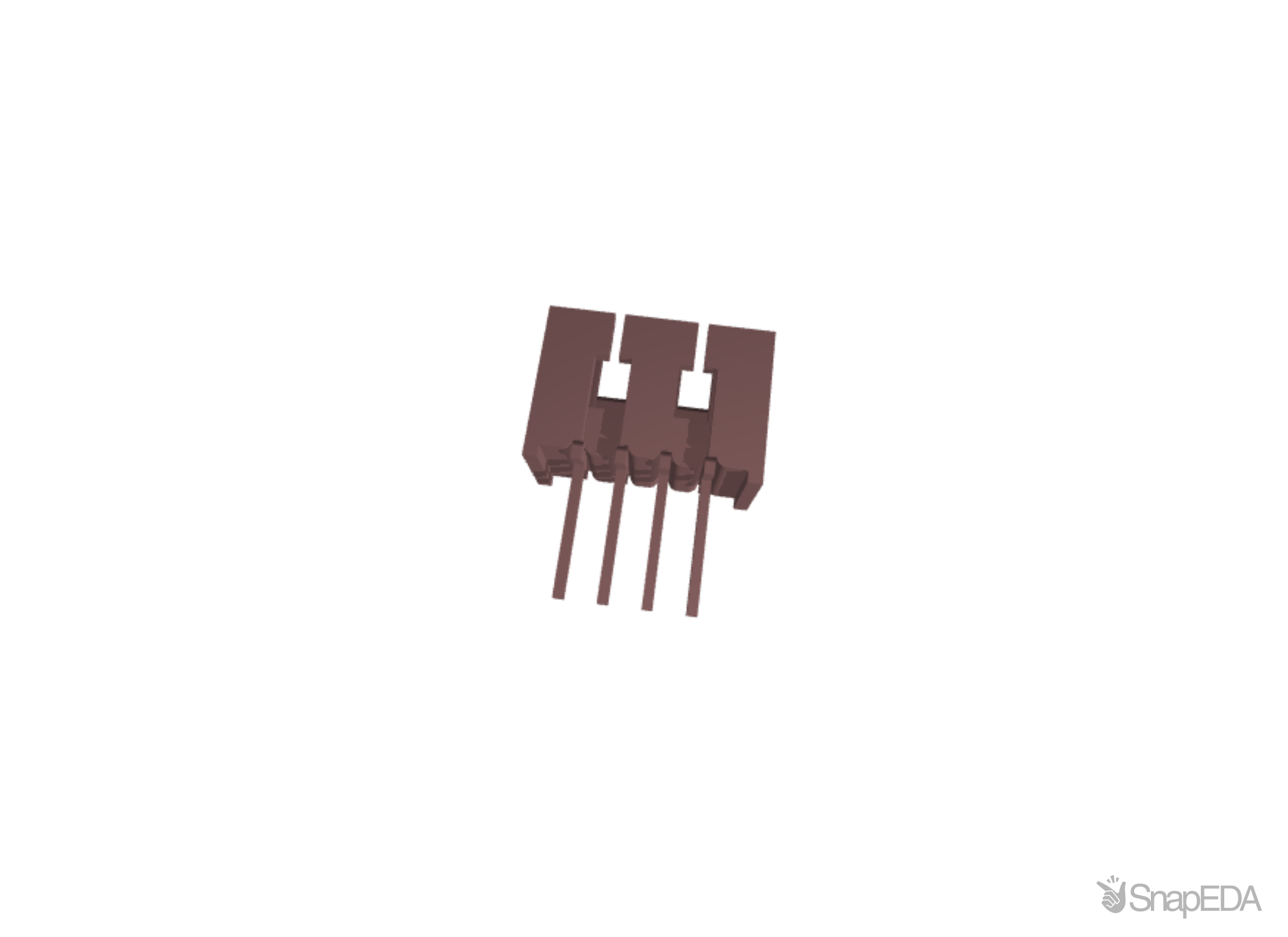

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-1734598-4
| Part Name | 4-1734598-4 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .049 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Operating Voltage (V) | 100 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | 3.7 |
| PCB Connector Assembly Type | PCB Mount Header |
| TE Internal Number | 4-1734598-4 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 4.7 |
| Number of Rows | 1 |
| Housing Color | Natural |
| Header Type | Partially Shrouded |
| Contact Mating Area Plating Material Finish | Matte |
| Strain Relief | Without |
| Connector Mounting Type | Board Mount |
| Termination Method to Wire & Cable | Crimp |
| Mating Retention | Without |
| Connector Length | 6.75 |
| Connector Width | 3.2 |
| Operating Temperature Range | -13 – 185 |
| Terminations per Post (Max) | 3 |
| Packaging Method | Tube |
| Packaging Quantity | 90 |
| Contact Layout | Inline |
| Number of Positions | 4 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Nickel |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Housing Material | High Temperature Thermoplastic |
| Contact Base Material | Phosphor Bronze |
| PCB Contact Termination Area Plating Material Thickness | 3.08 |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 3.048 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Retention | Without |
| Connector Contact Load Condition | Fully Loaded |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 28 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
