4-1775099-4
SnapVerified
Conn Power PL 12 POS 4.2mm Solder ST Thru-Hole 4 Terminal 1 Port Tray
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-1775099-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

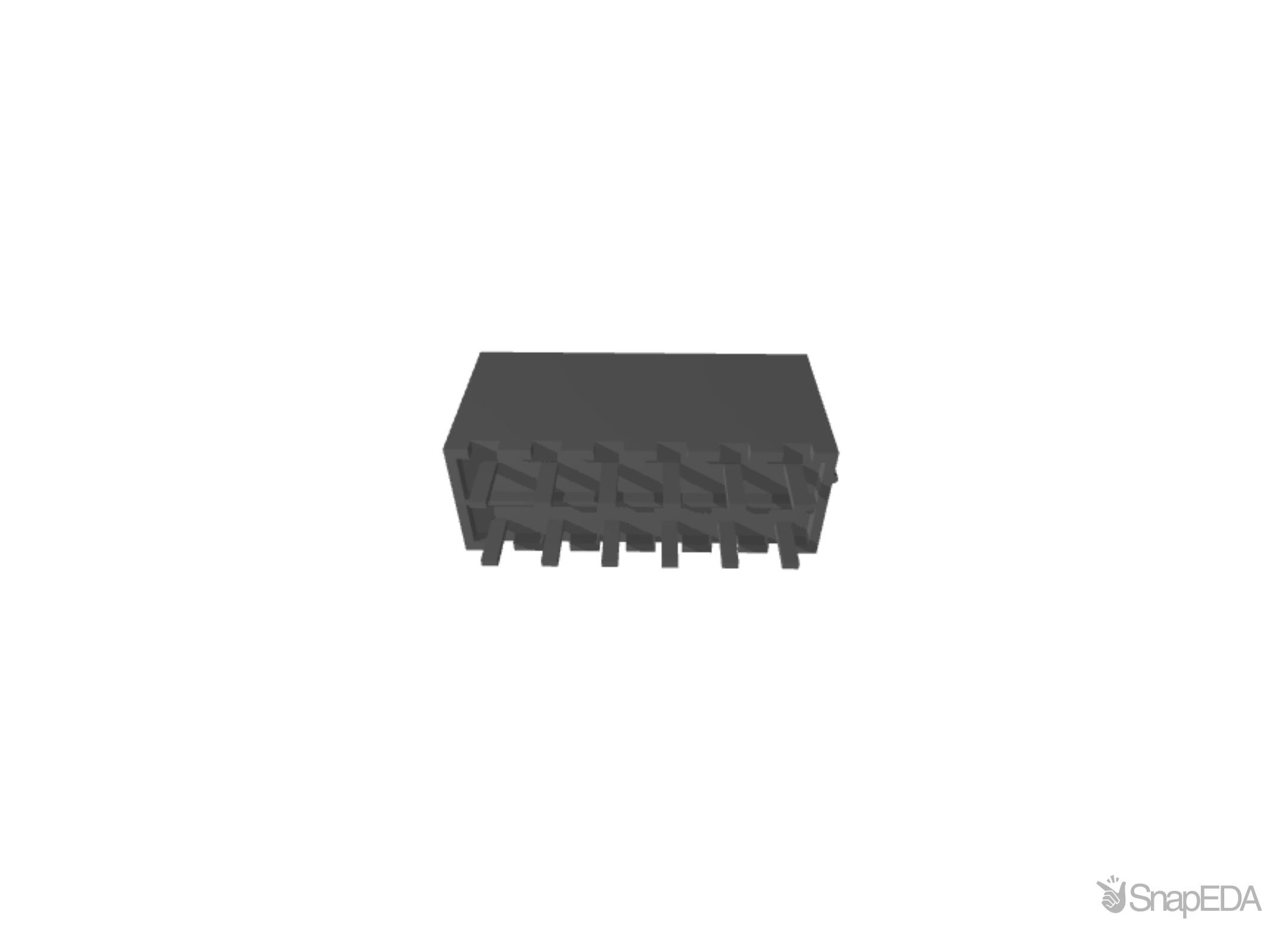

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-1775099-4
| Part Name | 4-1775099-4 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .165 |
| High Temperature Header | No |
| Circuit Application | Power |
| TE Internal Number | 4-1775099-4 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Row-to-Row Spacing | .16535 |
| Number of Power Positions | 12 |
| Operating Voltage (V) | 176 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Contact Plating Material | Tin |
| Flange | Without |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Number of Signal Positions | 0 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -13 to 185 |
| Shielded | No |
| Packaging Method | Box & Tray |
| Connector Type | Connector Assembly |
| Packaging Quantity | 480 |
| Number of Positions | 12 |
| Mating Alignment | With |
| Insertion Force | Standard |
| RoHS | True |
| Housing Material | PA 6T |
| Product Type | Connector |
| Mating Retention Type | Latch |
| ???? | Ivory |
| Contact Current Rating (Max) (A) | 9 |
| Contact Retention | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Type | Socket |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
