4-1971906-6
SnapVerified
Conn Wire to Board HDR 12 POS 3.3mm Solder ST Thru-Hole Tray
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-1971906-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

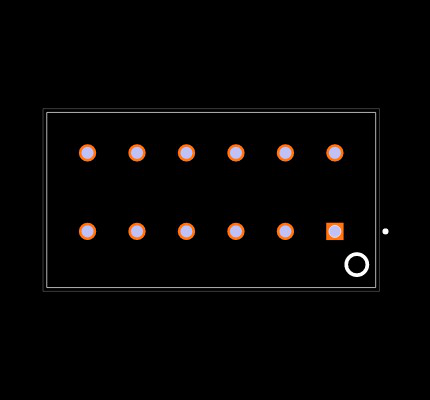

Footprint
No web preview
This Footprint is Available for

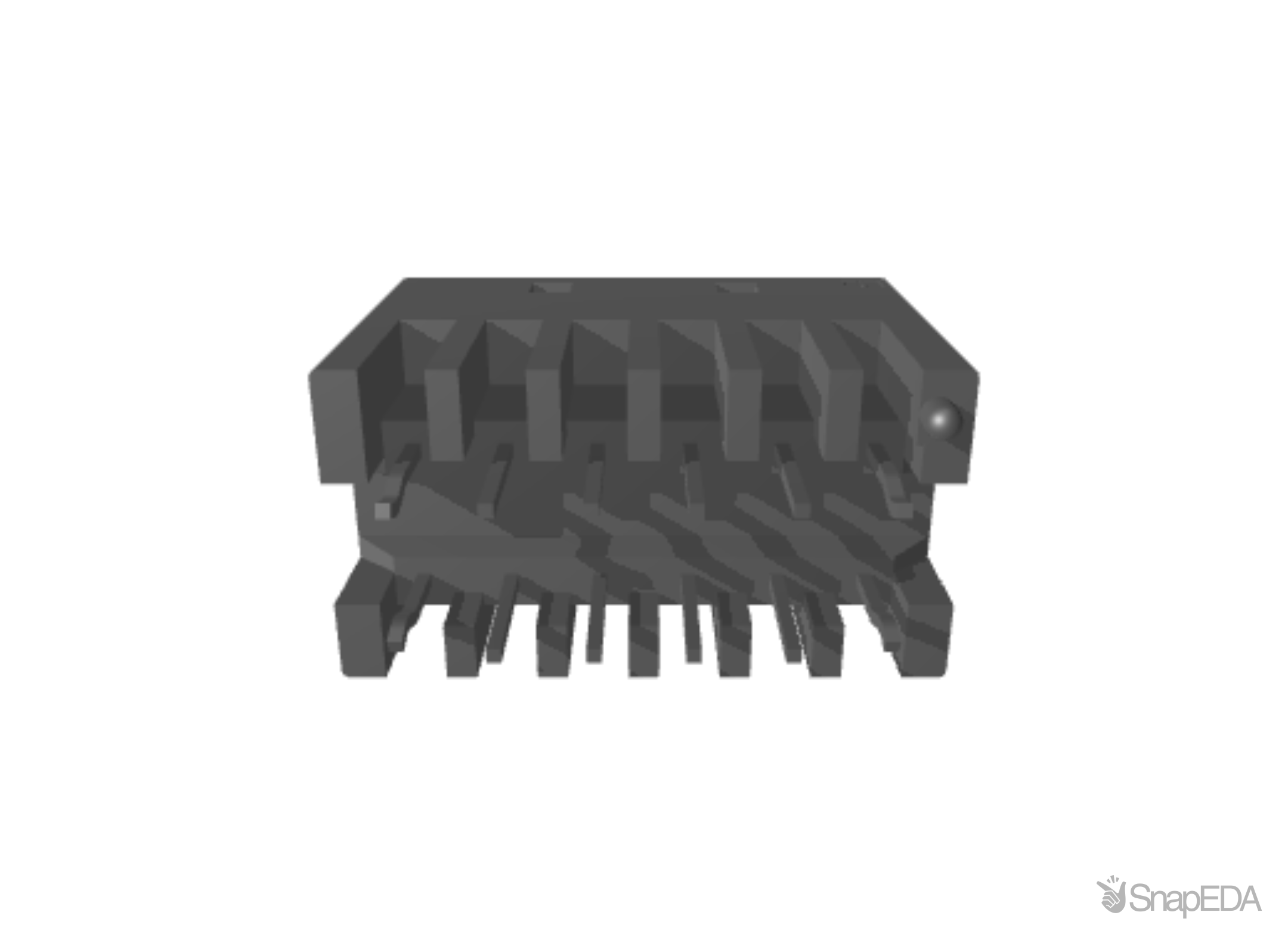

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-1971906-6
| Part Name | 4-1971906-6 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .129 |
| Keying | D |
| Circuit Application | Power & Signal |
| Glow Wire Rating | GWT 750°C (Without Flame) |
| Mating Retention Type | Latch |
| Housing Material | PA 66 GF |
| Row-to-Row Spacing | 5.2 |
| Contact Termination Area Plating Thickness | 100 |
| Operating Voltage (V) | 250 |
| For Use With | Plug Housing |
| PCB Mount Alignment Type | Locating Posts |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 12 |
| PCB Mount Retention Type | Kinked |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .062 |
| Termination Post & Tail Length | 3.18 |
| Mating Post Length | .26 |
| TE Internal Number | 4-1971906-6 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Number of Rows | 2 |
| Housing Color | Yellow |
| Header Type | Shrouded |
| Contact Underplating Material | Nickel |
| Number of Signal Positions | 12 |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| Mating Retention | With |
| Operating Temperature Range | -22 – 221 |
| Packaging Method | Box & Tray |
| Housing Type | Receptacle |
| Packaging Quantity | 175 |
| Contact Layout | Matrix |
| Contact Termination Area Plating Material | Tin |
| Length | 21.9 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| Tab Width | .5 |
| Contact Retention | With |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Height | 14.25 |
| PCB マウント アラインメント タイプ | Locating Posts |
| Contact Current Rating (Max) (A) | 4 |
| Contact Mating Area Plating Thickness | 2 |
| Product Type | Header Assembly |
| Contact Type | Tab |
| Number of Power Positions | 12 |
| Wire Size | 24 – 20 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
