4-2176089-4
RP 1J 0.166W 31K6 0.1% 25PPM 1K RL | TE Connectivity 4-2176089-4
Availability: In Stock
Package Type: 0603
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-2176089-4 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

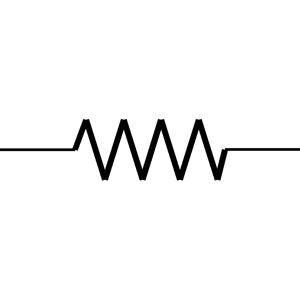

Symbol
No web preview
This Symbol is Available for

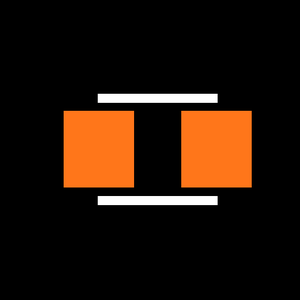

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-2176089-4
| Part Name | 4-2176089-4 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mount Style | Surface Mount |
| Dimensions | 1.55 x .8 x .45 |
| Size Code | 0603 |
| Packaging Method | Taped & Reeled |
| Resistor Type | Precision Resistor |
| Voltage Rating (V) | 100 |
| Element Type | Thin Film |
| TE Internal Number | 4-2176089-4 |
| Temperature Coefficient | ±25 |
| Resistance | 31.6K |
| Number of Resistors | 1 |
| Termination Type | Solder |
| Number of Terminations | 2 |
| Power Rating | .166 |
| Product Type | Fixed Resistor |
| Tolerance | .1% |
| Resistance Range | 1kΩ – 1MΩ |
| RoHS | True |
