4-641119-5
SnapVerified
15P MTA156 HDR ASSY FL/ST LF
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-641119-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

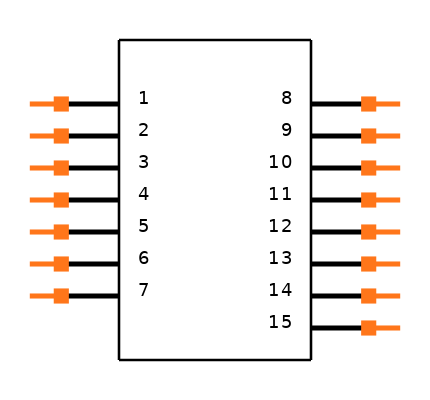

Symbol
No web preview
This Symbol is Available for

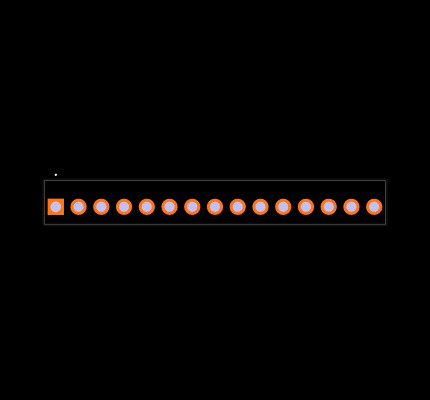

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-641119-5
| Part Name | 4-641119-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .156 |
| Agency/Standard | CSA |
| Circuit Application | Power |
| Contact Termination Area Plating Finish | Matte |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Polyester - GF |
| Contact Termination Area Plating Thickness | 100 |
| Number of Power Positions | 15 |
| Operating Voltage (V) | 600 |
| For Use With | MTA .156 Connector Assembly or SL .156 Connector Assembly |
| UL Rating | Recognized |
| Number of Positions | 15 |
| PCB Mount Retention | Without |
| Sealable | No |
| PCB Thickness (Recommended) | 1.57 |
| Termination Post & Tail Length | .125 |
| Contact Current Rating (Max) (A) | 7 |
| Connector & Contact Terminates To | Printed Circuit Board |
| TE Internal Number | 4-641119-5 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Housing Type | Plug |
| Agency/Standard Number | E28476 |
| Housing Color | Natural |
| Header Type | Unshrouded |
| Contact Underplating Material | Nickel |
| Strain Relief | Without |
| Connector Mounting Type | Board Mount |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Mating Area Plating Thickness | 15 |
| Operating Temperature Range | -55 – 105 |
| Number of Rows | 1 |
| Packaging Method | Package |
| Packaging Quantity | 1000 |
| Contact Layout | Inline |
| Contact Termination Area Plating Material | Tin |
| 端子の下地めっきの材料 | Nickel |
| Length | 2.34 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| CSA Rating | Certified |
| RoHS | True |
| Mating Retention | With |
| Contact Base Material | Copper Alloy |
| PCB Mount Alignment | Without |
| Mating Retention Type | Friction Lock |
| Height | 10.79 |
| Panel Mount Feature | Without |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Product Type | Header |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Mating Post Length | 10.16 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 4-641119-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
1,000 x $5.81
|
Visit Site |
No issues have been reported for the 4-641119-5
