4-6437630-8
Switch Toggle ON OFF (ON) SPDT Round Lever Hooking Wire Lead 6A 250VAC Panel Mount with Threads Bulk
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-6437630-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

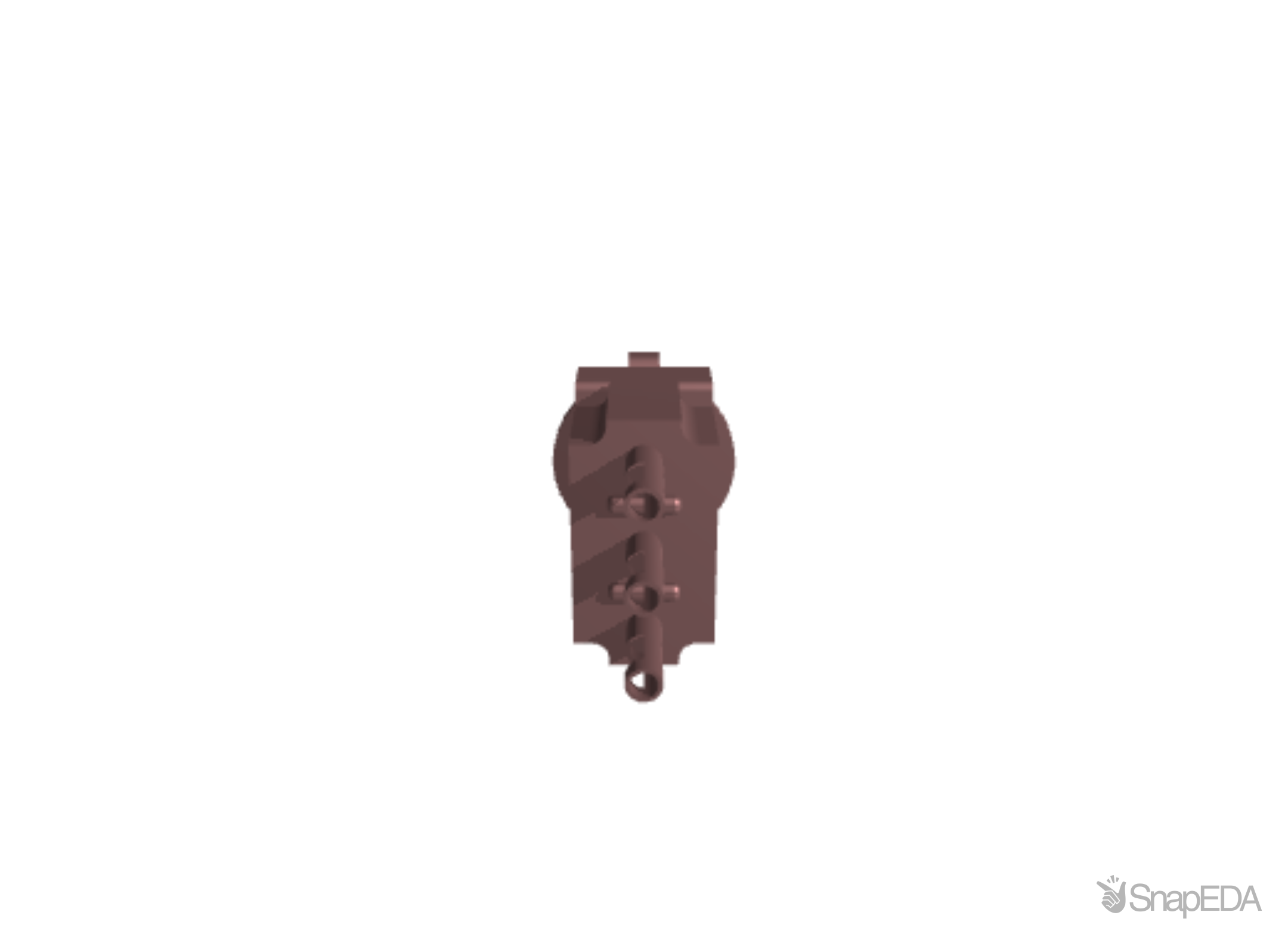

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-6437630-8
| Part Name | 4-6437630-8 |
| Manufacturer | TE Connectivity |
| Contact Resistance | 10 |
| Bushing Thread Size | M6 x .75 |
| Operating Function | On Off (On) |
| Toggle Actuation | Vertical |
| Insulation Resistance | 1000 |
| Sealed | Yes |
| Seal Type | Waterproof |
| Contact Current Rating (A) | 6 |
| TE Internal Number | 4-6437630-8 |
| Contact Base Material | Copper Alloy |
| Voltage Rating (V) | 250 V |
| Dielectric Strength | 1500 |
| Configuration (Pole-Throw) | Single Pole - Double Throw |
| Process Sealed | No |
| RoHS | True |
| Product Type | Switch |
| Toggle Length | .413 |
| Mounting Type | Solder |
| Color | Black |
| UL Flammability Rating | UL 94V-0 |
| Toggle Style | Baton Standard |
| Termination Type | Vertical |
| Bushing Style | Threaded |
| Switch Contact Plating Material | Silver |
| Switch Type | Toggle |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Resistance | 0.01 (Ω) |
| Switch Operation | On-Off-(On) |
| Actuator Length | 10.5 (mm) |
| Standards Met | RoHS |
| Mounting Type | Panel Mount |
| Voltage Rating (V) | 125 V, 250 (V) |
| Contact Current Rating (A) | 6 A @ 250 V ac |
| Panel Cut Out Diameter | 6.2 (mm) |
| Operating Temperature Range | -20 → +70 (°C) |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20 (°C) |
| Actuator Material | Chromium Plated Brass |
| Mechanical Life | 50000 (Cycles) |
| Panel Cut Out Size | 6.2 (mm) |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Solder |
| Contact Material | Silver Plated Brass Alloy |
