4-87964-1
SnapVerified
MOD II DBL ROW RECP ASSY
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4-87964-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

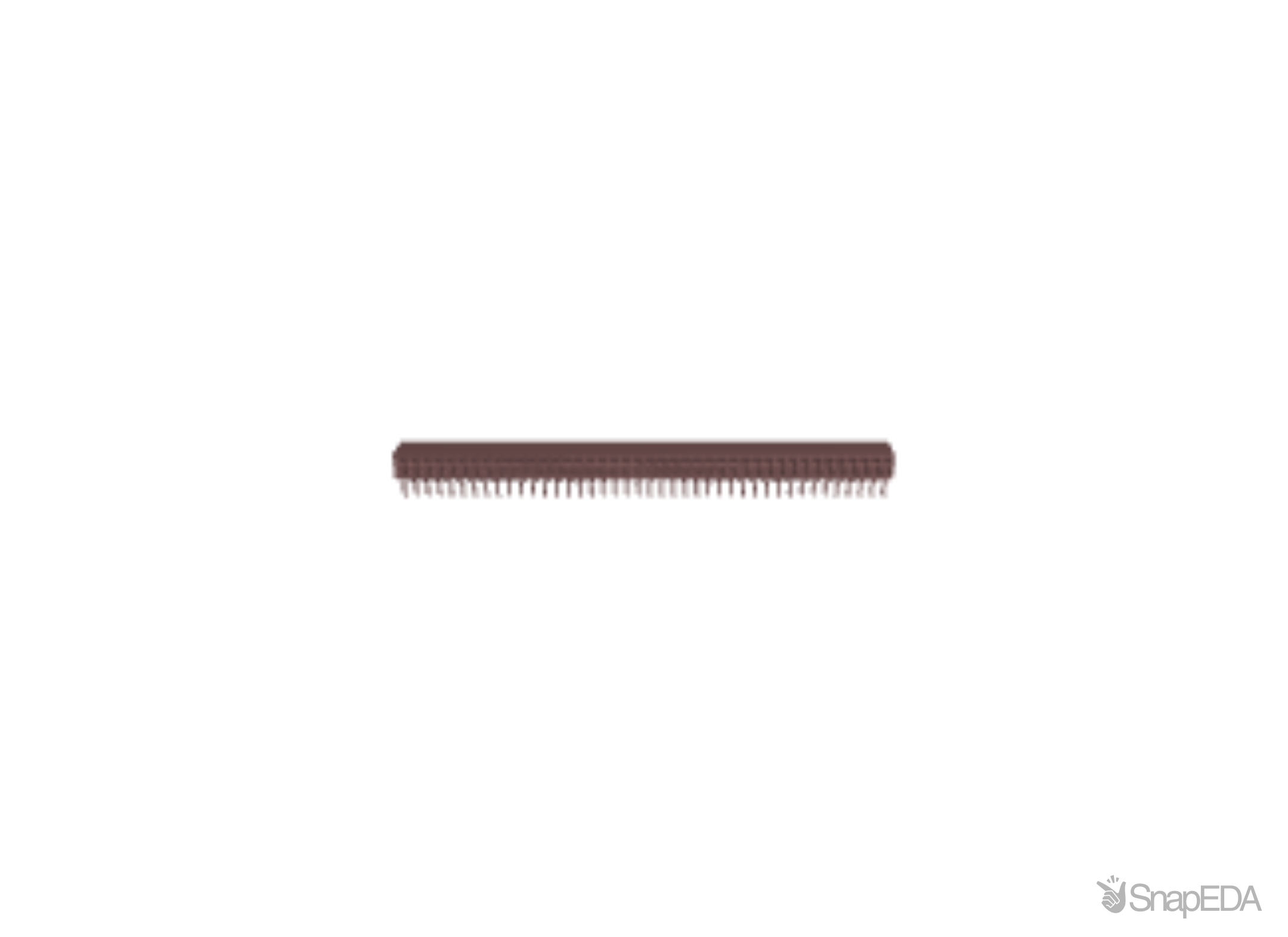

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4-87964-1
| Part Name | 4-87964-1 |
| Manufacturer | TE Connectivity |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Centerline (Pitch) | 2.54 |
| Mating Entry Location | Side |
| High Temperature Compatible | No |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| Contact Configuration | Short Point |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Row-to-Row Spacing | .1 |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 50 |
| PCB Mount Orientation | Right Angle |
| Stackable | No |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Contact Base Material | Phosphor Bronze |
| PCB Thickness (Recommended) | .093 |
| Solder Process Feature | Board Standoff |
| Termination Post & Tail Length | 3.68 |
| TE Internal Number | 4-87964-1 |
| Number of Positions | 84 |
| Contact Protection Type | Closed Entry Housing |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| Connector Height | .238 |
| Number of Rows | 2 |
| PCB Contact Termination Area Plating Material Thickness | 50 |
| Connector Profile | Standard |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Gold Flash |
| Sealable | No |
| Housing Color | Natural |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
