40.52.9.024.0000
General Purpose Relay, DPDT, 8 A, 250 VAC, PCB Terminal, Socketable 40 Series | Finder 40.52.9.024.0000
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 40.52.9.024.0000 by Finder and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

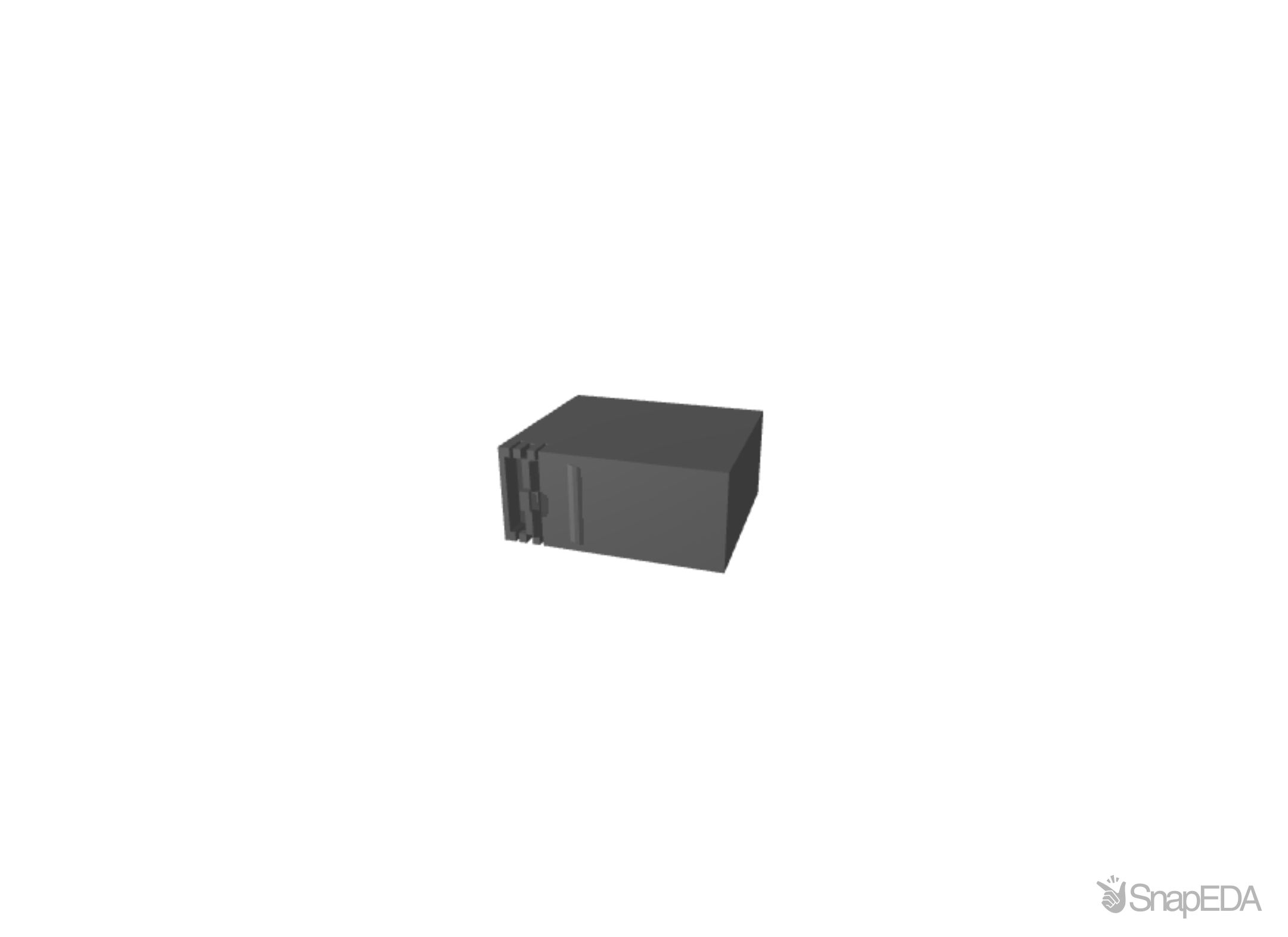

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 40.52.9.024.0000
| Part Name | 40.52.9.024.0000 |
| Manufacturer | Finder |
| Category | Relays |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Life | 10 x 10^6 cycles |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage (Ac) (V) | 400 (V) |
| Coil Power | 650 (mW) |
| Series | 40 Series |
| Latching | No |
| Coil Voltage (V) | 24 (V dc) |
| Number Of Poles | 2 |
| Depth | 12.4 (mm) |
| Height | 25 (mm) |
| Coil Resistance | 900 (Ω) |
| Length | 29 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Terminal Type | Plug In |
| Isolation Coil To Contact | 6 (kV) |
| Contact Configuration | DPDT |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 8 (A) |
| Contact Material | Silver Alloy |
