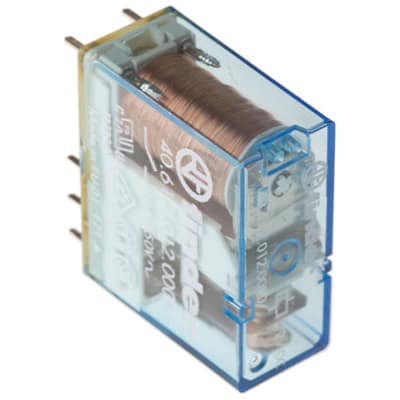

40.61.7.012.0000
SPDT PCB Mount Non-Latching Relay Through Hole, 12V dc | Finder 40.61.7.012.0000
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 40.61.7.012.0000 by Finder and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

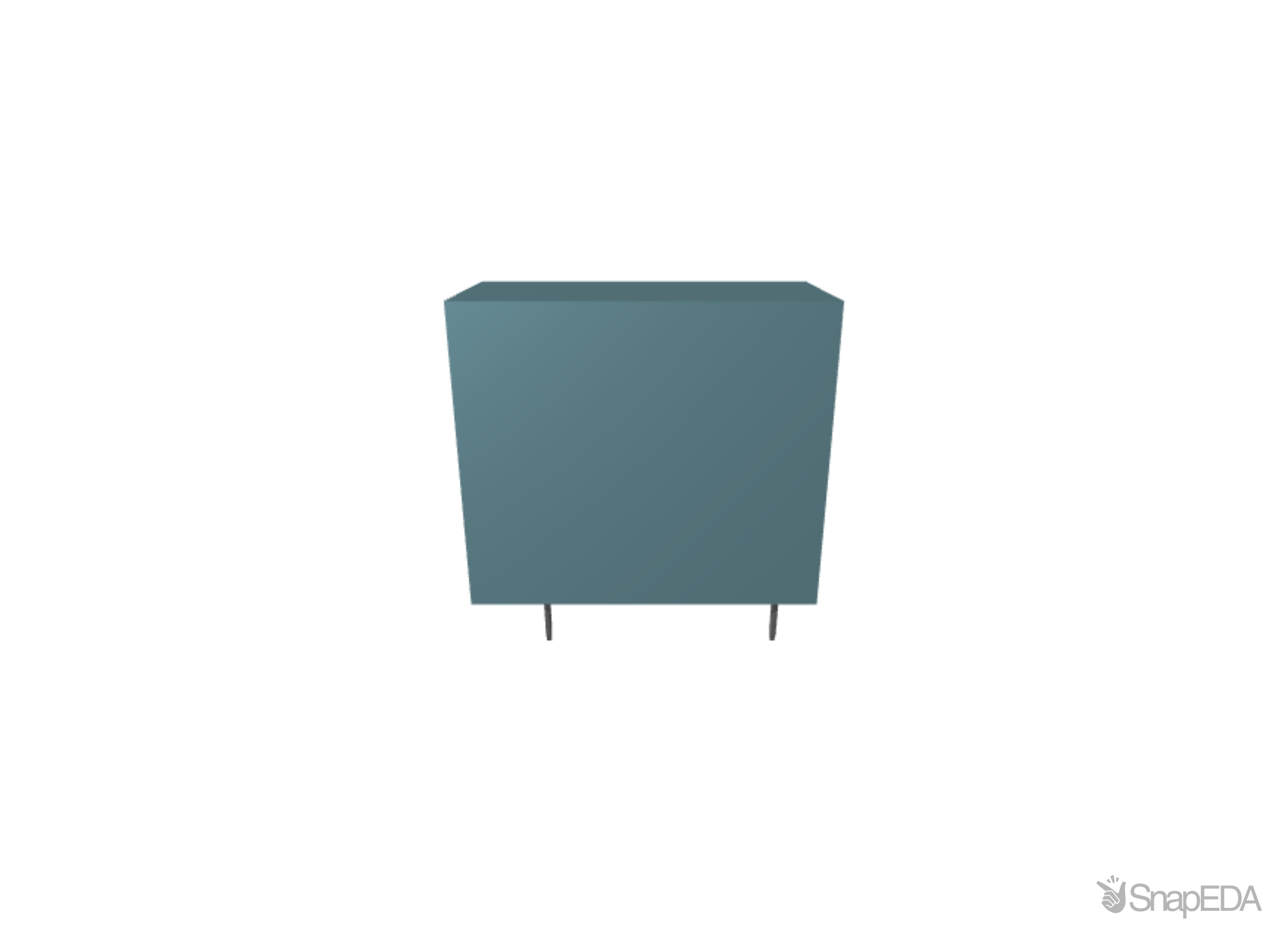

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 40.61.7.012.0000
| Part Name | 40.61.7.012.0000 |
| Manufacturer | Finder |
| Category | Relays |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Coil Voltage (V) | 12 (V dc) |
| Application | PCB |
| Terminal Type | Through Hole |
| Coil Resistance | 220 O |
| Life | 10000000 Cycles |
| Standards Met | EAC |
| Coil Power | 500 (mW) |
| Isolation Coil To Contact | 6 (kV) |
| Maximum Operating Temperature | +85 (°C) |
| Switching Current (A) | 16 (A) |
| Latching | No |
| Contact Configuration | SPDT |
| Depth | 12.4 (mm) |
| Maximum Switching Voltage Ac (V) | 400 (V ac) |
| Maximum Switching Power Ac | 4 kVA |
| Number Of Poles | 1 |
| Mounting Type | PCB Mount |
| Series | 40 Series |
| Length | 29 (mm) |
| Height | 25 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Contact Material | Silver Alloy |
