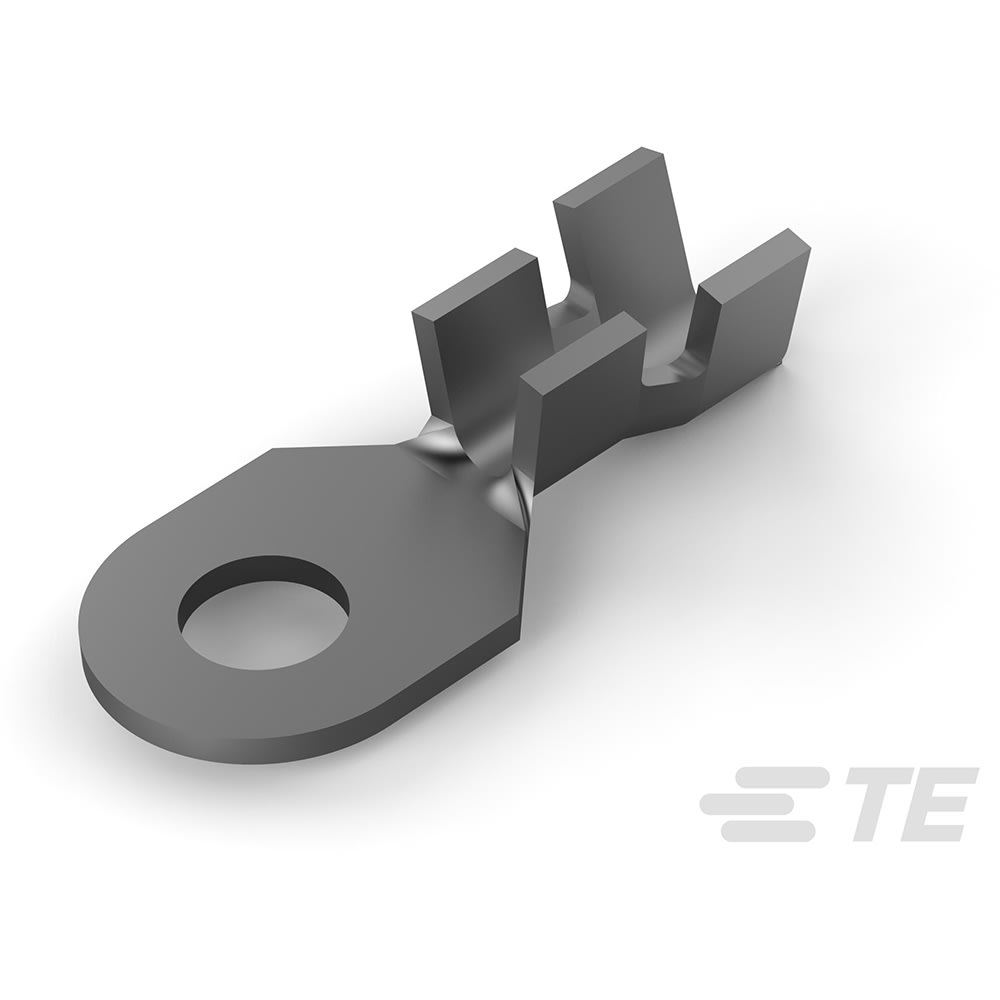

RING TERMINAL 14-12 AWG TPBR | TE Connectivity 40960
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 40960 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

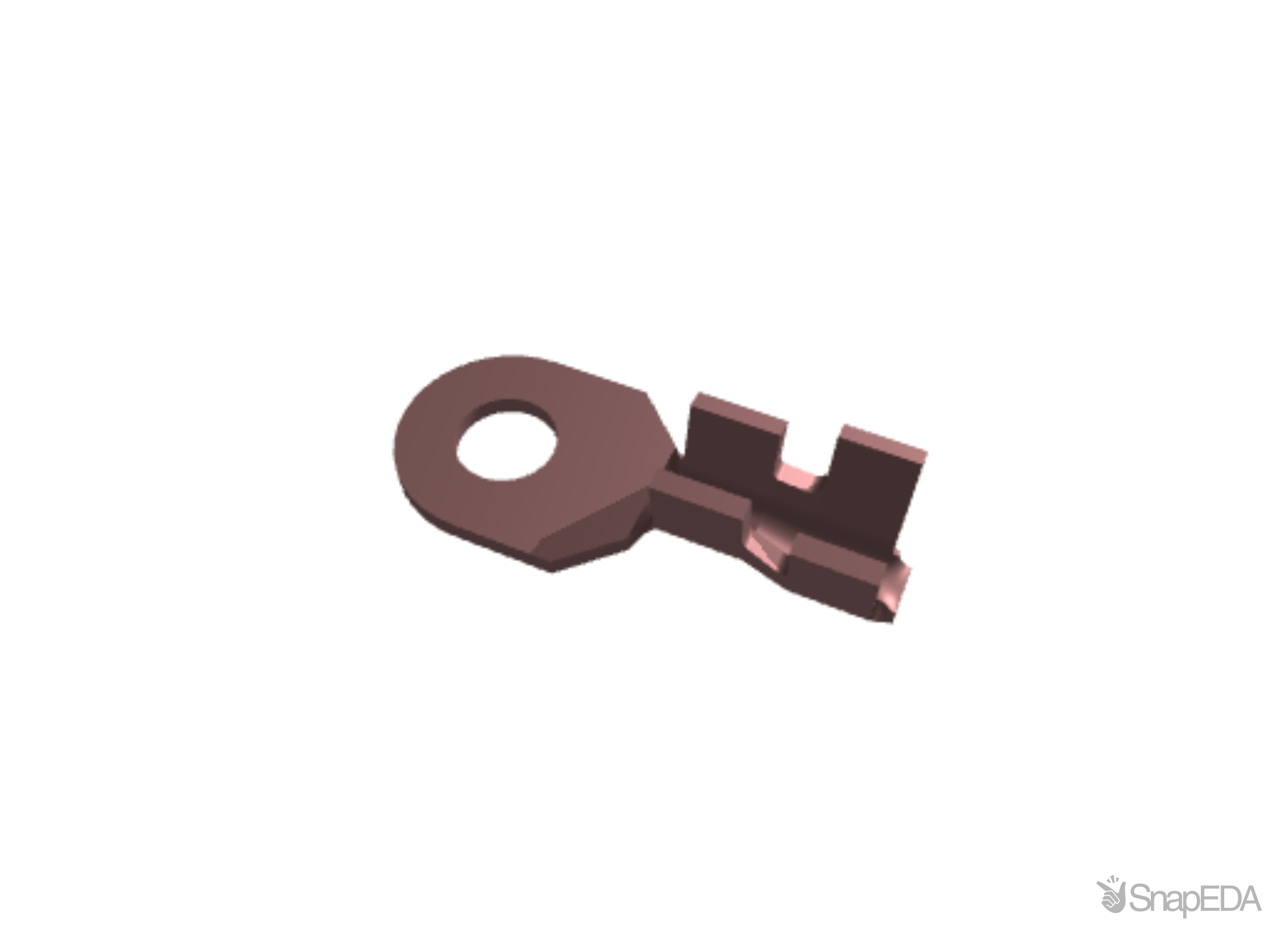

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 40960
| Part Name | 40960 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Wire Insulation Diameter (Max) | 4.572 |
| Wire Insulation Diameter | 3.3 – 4.57 |
| Support Style | Insulation Support |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Insulated | No |
| Barrel Inside Diameter | .13 |
| Plating Material | Tin |
| TE Internal Number | 40960 |
| Stud Diameter | .197 |
| Overall Length | 24.13 |
| Contact Base Material | Brass |
| Wire Insulation Support | With |
| Number of Holes | 1 |
| Operating Temperature Range | -40 – 230 |
| Terminal & Splice Type | Ring Tongue |
| Packaging Method | Strip/Reel |
| Packaging Quantity | 5000 |
| Terminal Orientation | Straight |
| Barrel Type | Open Barrel |
| Inspection Slot | No |
| Wire Insulation Diameter (Min) | .13 |
| RoHS | True |
| Shape Description | D Shaped |
| Underplating Material | Nickel |
| Weight per Piece | 1.971 |
| Heavy Duty | No |
| Stud Size | #10 |
| Government Qualified | No |
| Tongue Thickness | .04 |
| Wire Size | 4106 – 6529 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
