41330

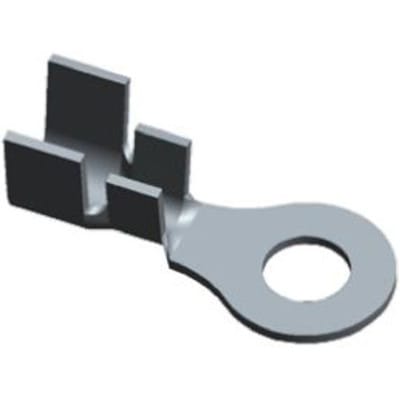

Uninsulated Tin Plated Crimp Ring Terminal, M3.5 Stud Size, 18 - 14 AWG | TE Connectivity 41330
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 41330 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 41330
| Part Name | 41330 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Wire Insulation Diameter (Max) | 4.318 |
| Wire Insulation Diameter | 3.05 – 4.32 |
| Wire Insulation Diameter (Min) | .12 |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Insulated | No |
| Barrel Inside Diameter | 3.55 |
| Plating Material | Tin |
| TE Internal Number | 41330 |
| Stud Diameter | .145 |
| Overall Length | 16.26 |
| Sealable | No |
| Wire Insulation Support | With |
| Number of Holes | 1 |
| Operating Temperature Range | -40 – 230 |
| Terminal & Splice Type | Ring Tongue |
| Packaging Method | Strip/Reel |
| Packaging Quantity | 12500 |
| Terminal Orientation | Straight |
| Underplating Material | None |
| Barrel Type | Open Barrel |
| Inspection Slot | No |
| Support Style | Insulation Support |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Shape Description | Circular/Oval |
| Contact Base Material | Brass |
| Weight per Piece | .484 |
| Heavy Duty | No |
| Stud Size | M3.5 |
| Government Qualified | No |
| Tongue Thickness | .51 |
| Wire Size | 18 – 14 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
