414026-2
Connector, SMB, 50 Ohms, Right Angle, Gold, Zinc, Teflon, Gold (Center), PCB | TE Connectivity 414026-2
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 414026-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

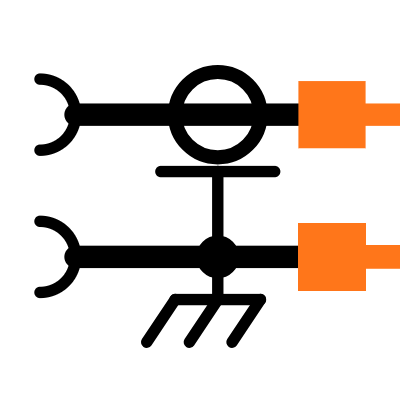

Symbol
No web preview
This Symbol is Available for

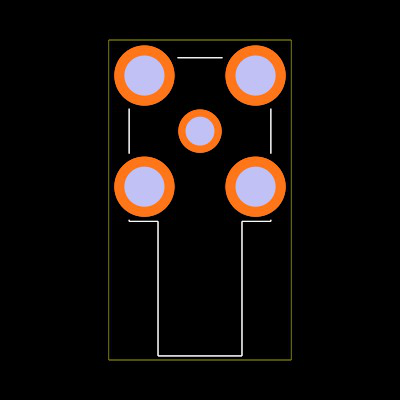

Footprint
No web preview
This Footprint is Available for

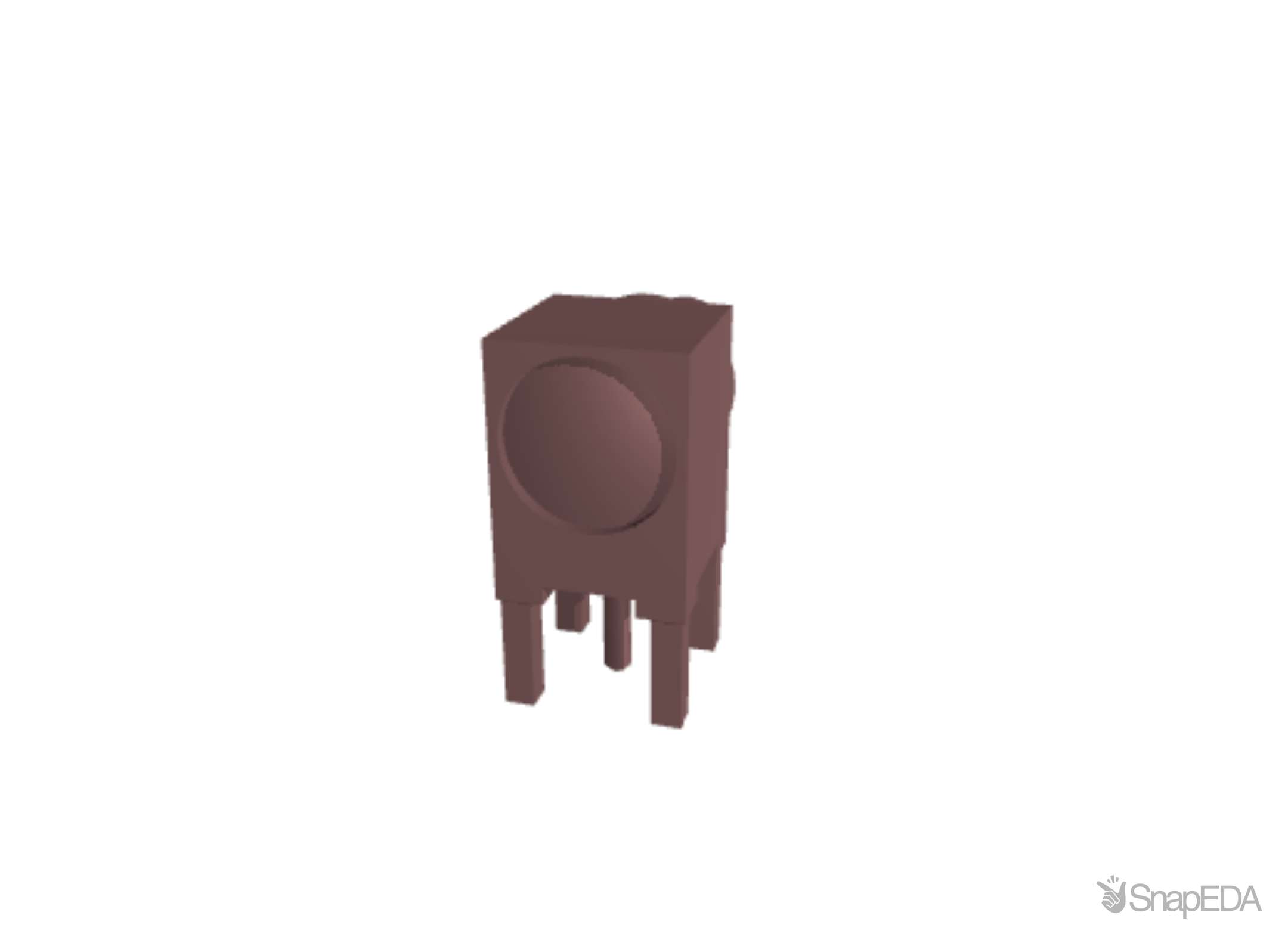

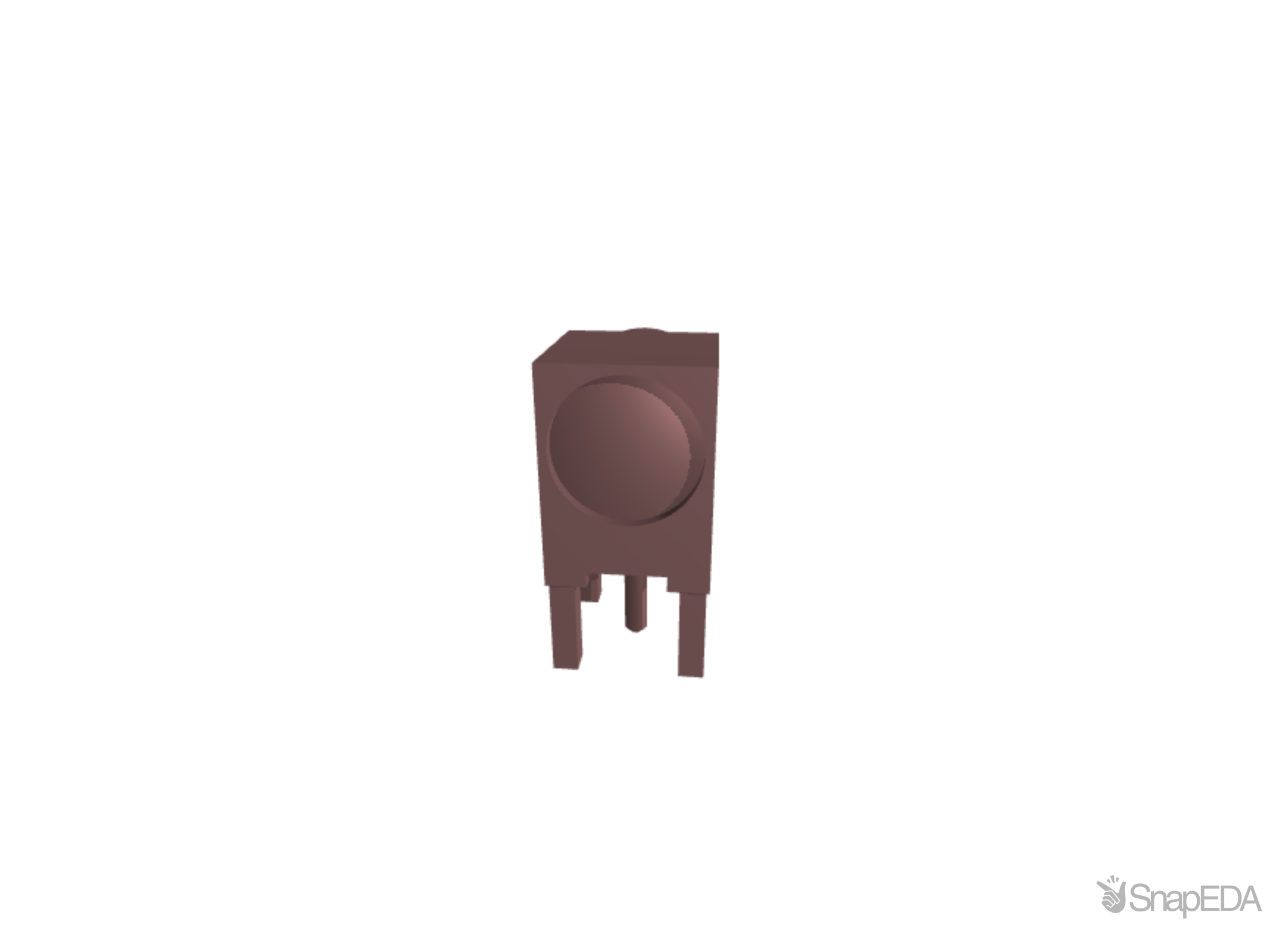

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 414026-2
| Part Name | 414026-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Termination Method to Printed Circuit Board | Through Hole |
| RF Connector Style | Jack |
| RF Connector Coupling Mechanism | Snap-Fit |
| RF Connector Center Contact Material | Brass |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Leg Plating Material | Nickel |
| TE Internal Number | 414026-2 |
| PCB Tail Length | 3.937 |
| PCB Mount Orientation | Right Angle |
| Connector System | Cable-to-Board |
| Body Plating Material | Gold |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Additional Features | Board Standoff |
| Connector Mounting Type | Board Mount |
| RF Connector Mated Outer Diameter (Approximate) | 4.75 |
| Operating Temperature Range | -65 – 165 |
| Body Shape | Square |
| Packaging Method | Carton |
| RF Interface | SMB |
| Detent | Without |
| Body Material | Brass |
| Number of Positions | 1 |
| Operating Frequency | 4 |
| RoHS | True |
| Sealable | No |
| Grade | Mil-Type |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | 8.51 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Gold |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Right Angle |
| Coaxial Connector Type | SMB Connector |
| Contact Plating | Gold |
| Termination Method | Solder |
| Operating Frequency | 0 to 4 (GHz) |
| Impedance | 50 (Ω) |
| Contact Material | Brass |
