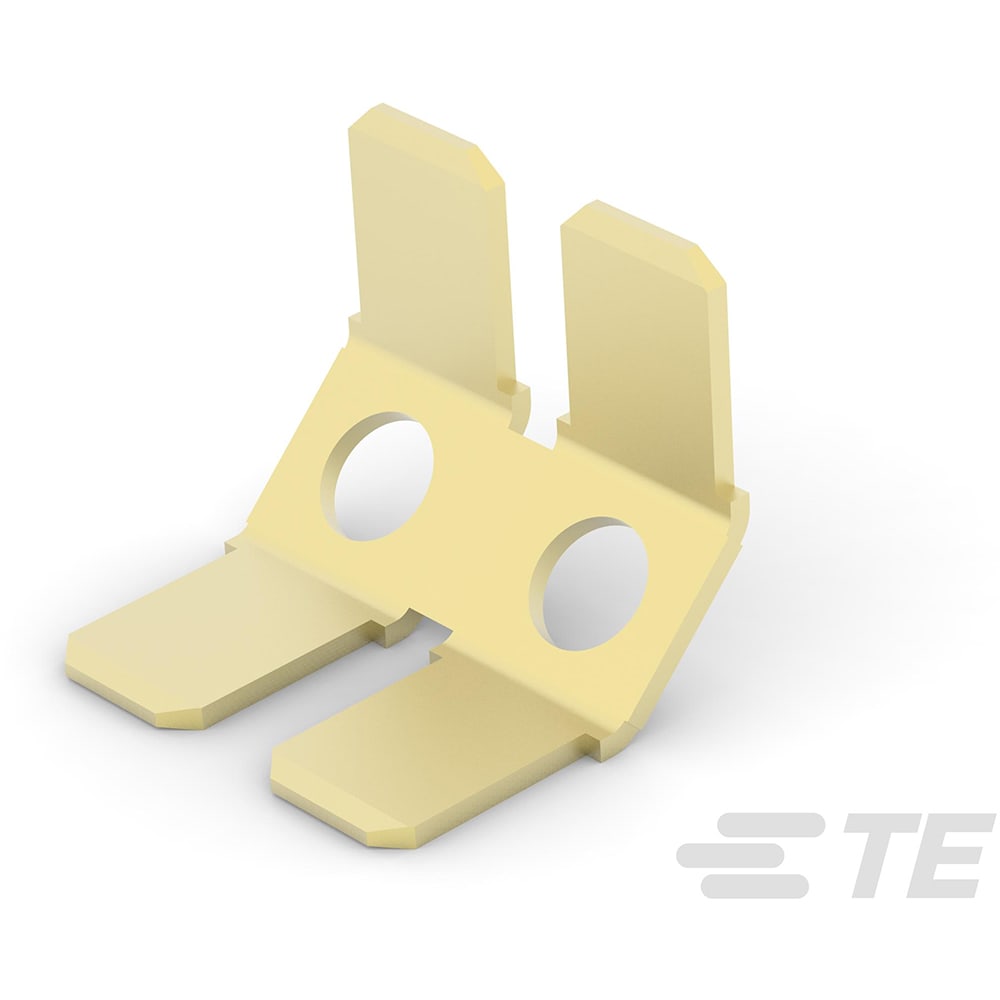

FASTON .250 SERIES (6.3 MM) TAB BR | TE Connectivity 41617
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 41617 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

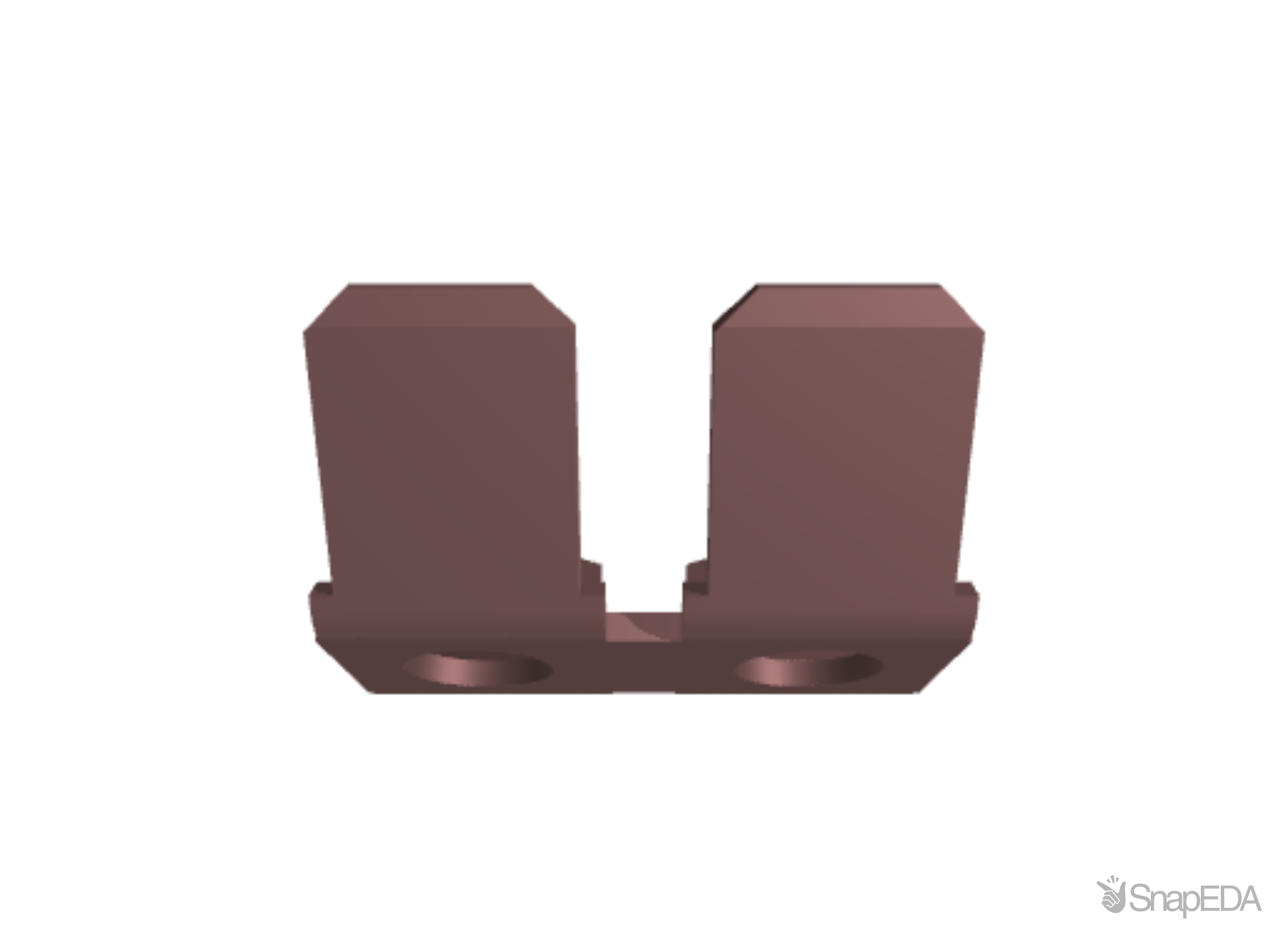

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 41617
| Part Name | 41617 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Underplating Material | Brass |
| Operating Temperature Range | -22 – 230 |
| Terminal & Splice Type | Tab |
| Termination Method | Through Hole |
| Packaging Method | Loose Piece |
| TE Internal Number | 41617 |
| Packaging Quantity | 1000 |
| Mounting Style | Stud Mount |
| Plating Material | Unplated |
| Terminal Orientation | Straight |
| PCB Hole Diameter | 4.34 |
| Mating Tab Thickness | .81 |
| Stud Diameter | 4.34 |
| Terminal Angle | 45° |
| Terminates To | Printed Circuit Board |
| Stud Hole | Yes |
| Terminal Type | Tab |
| RoHS | True |
| Mating Tab Width | 6.35 |
