42820-4214

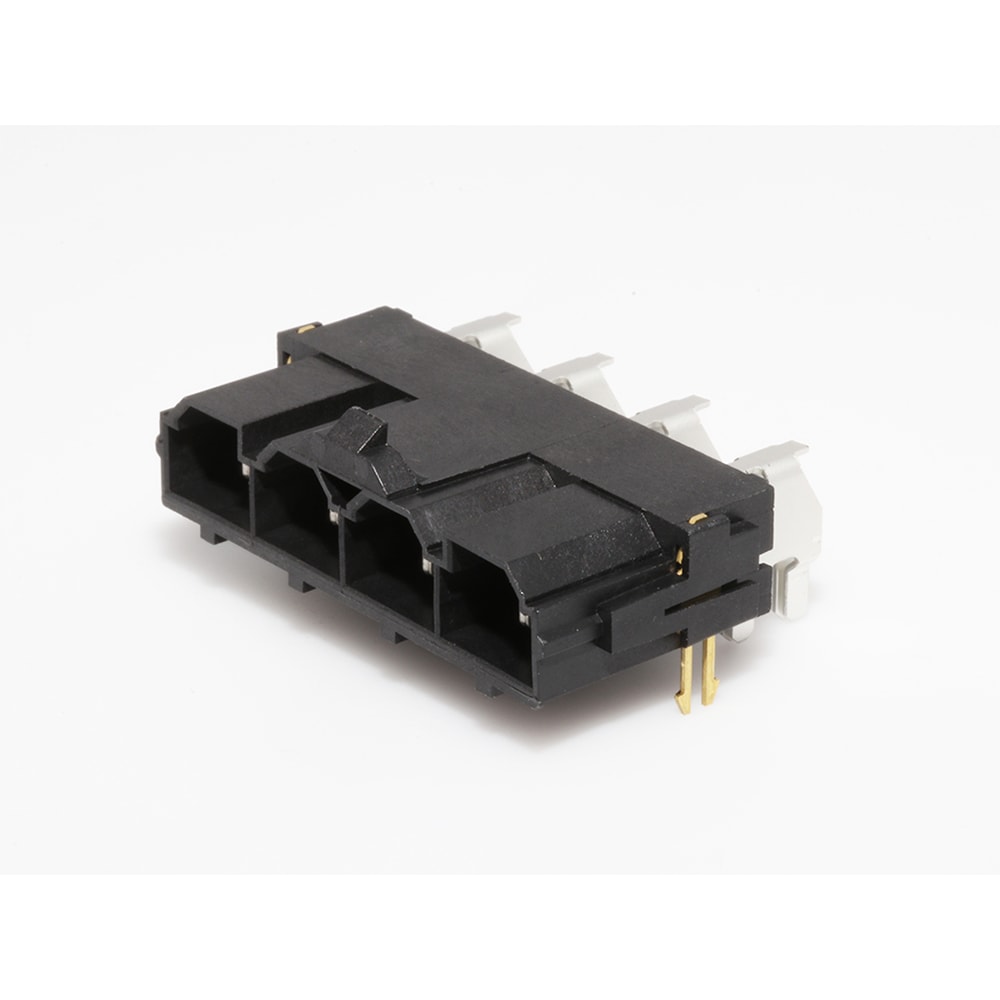

Conn;Rect;Header;10.00mm Pitch;4 Pos;Rt Ang;1-Row;Mini-Fit Sr;1.57mm Thick;Silvr | Molex Incorporated 42820-4214
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 42820-4214 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

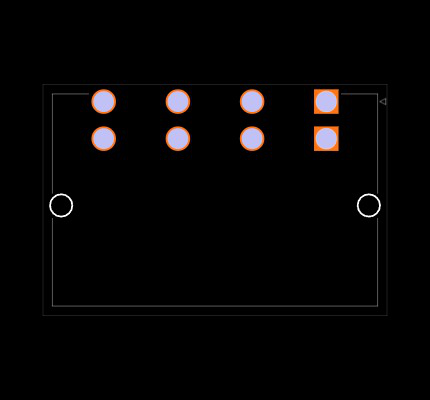

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 42820-4214
| Part Name | 42820-4214 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Tail Pin Length | 3.5 (mm) |
| Current Rating (A) | 50.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 600.0 V |
| Series | Mini-Fit Sr. |
| Body Orientation | Right Angle |
| Pitch | 10.0 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Termination Method | Solder |
| Number Of Contacts | 4 |
| Series Number | 42820 |
Inventory for the 42820-4214 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,170
|
|
Visit Site | |
|
★ Featured
|
13
|
27 x $11.45
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
1,712
|
|
Visit Site | |
| Verical |
960
|
|
Visit Site |
No issues have been reported for the 42820-4214
If you experienced any issues with the symbol or footprint, please report it.
