42820-6213

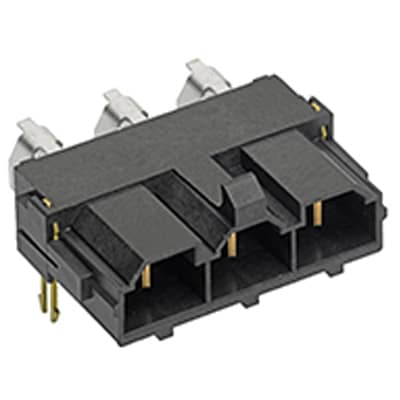

Conn, Rect, Header, PCB, Rt Angle, 10.00 mm Pitch, 6, W-2-B, Black | Molex Incorporated 42820-6213
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 42820-6213 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

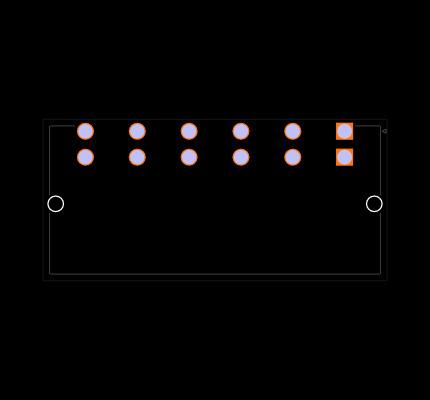

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 42820-6213
| Part Name | 42820-6213 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Current Rating (A) | 50.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 600.0 V |
| Series | Mini-Fit Sr. |
| Body Orientation | Right Angle |
| Pitch | 10.0 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 6 |
| Series Number | 42820 |
Inventory for the 42820-6213 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
2,907
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
81
|
|
Visit Site | |
| Farnell UK |
26
|
|
Visit Site | |
| Heilind Europe |
8,221
|
|
Visit Site | |
| Newark |
4
|
1 x $2.70
|
Visit Site | |
| Powell Electronics |
53
|
|
Visit Site | |
| RS UK |
83
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
81
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site | |
| element14 Singapore |
26
|
|
Visit Site |
No issues have been reported for the 42820-6213
If you experienced any issues with the symbol or footprint, please report it.
