43045-1021

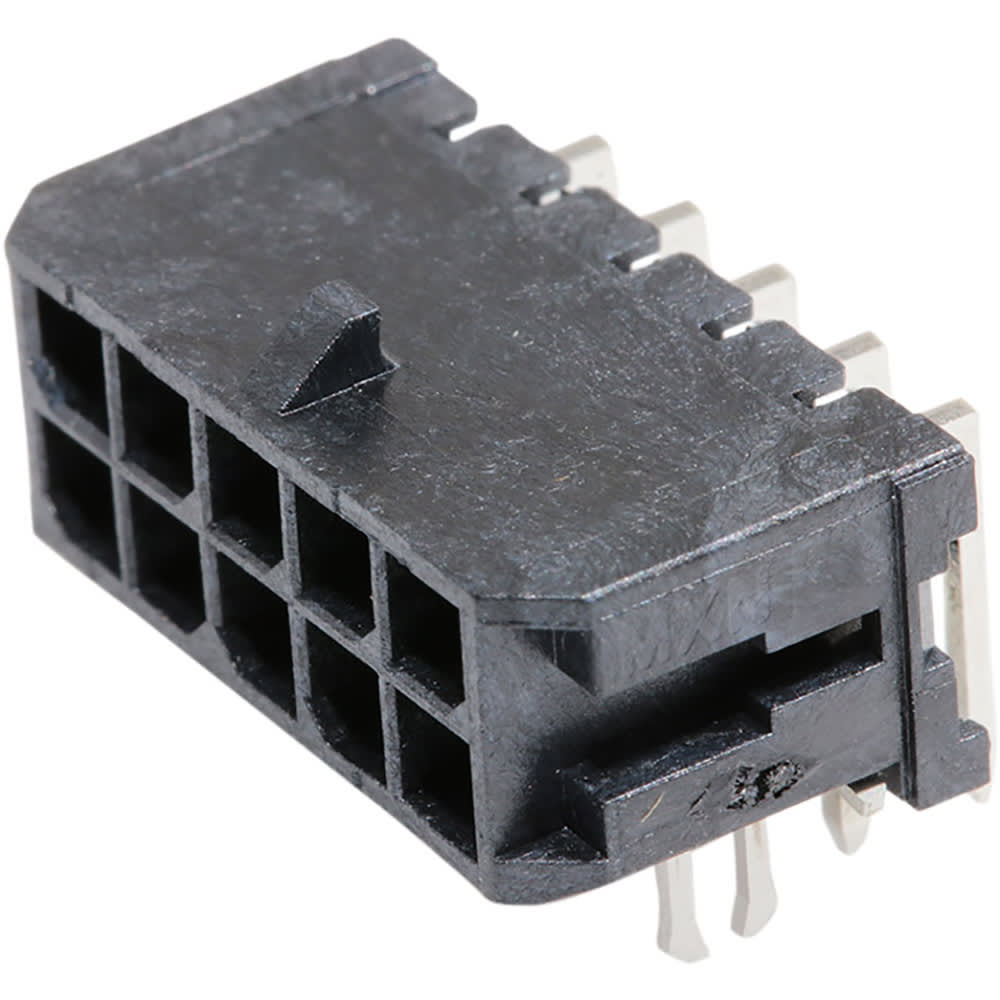

Header 3.00mm, WTB, dual row, RA,10w | Molex Incorporated 43045-1021
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 43045-1021 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

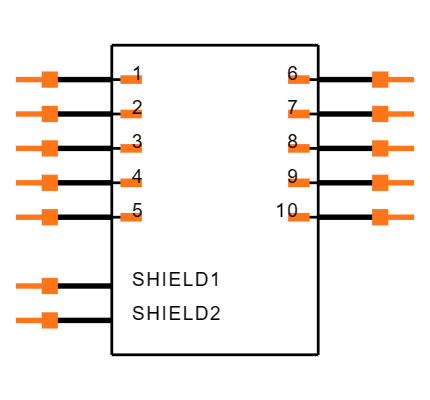

Symbol
No web preview
This Symbol is Available for

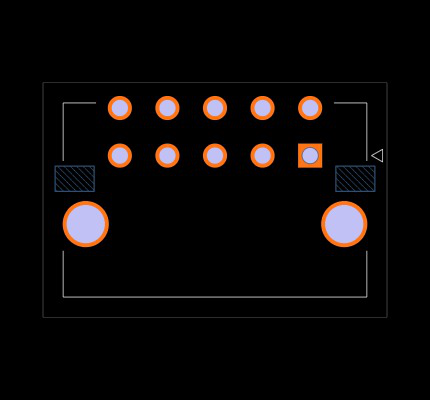

Footprint
No web preview
This Footprint is Available for

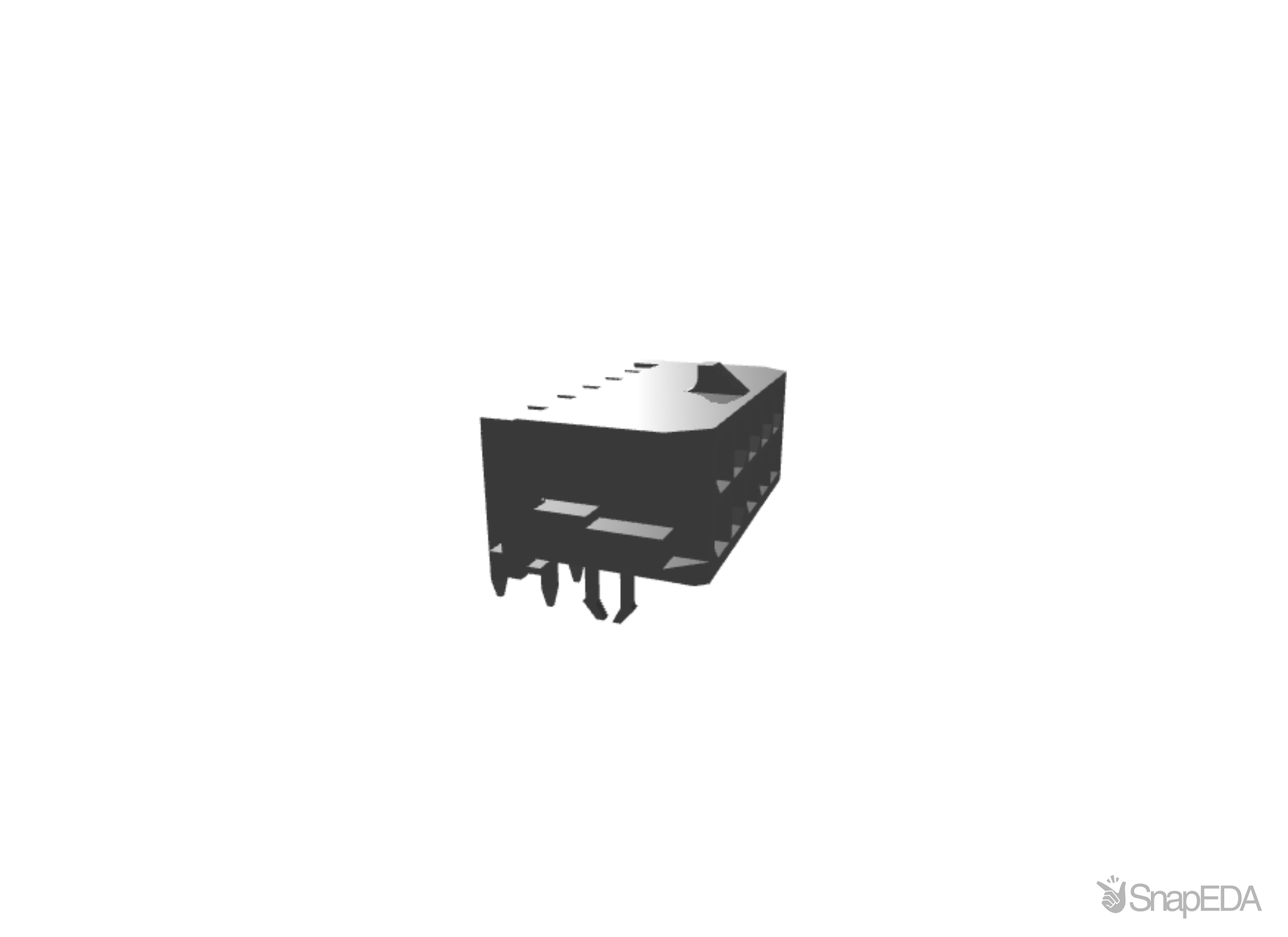

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 43045-1021
| Part Name | 43045-1021 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Current Rating (A) | 5.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | Micro-Fit 3.0 |
| Body Orientation | Right Angle |
| Pitch | 3.0 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Contact Material | Brass |
| Number Of Contacts | 10 |
| Series Number | 43045 |
