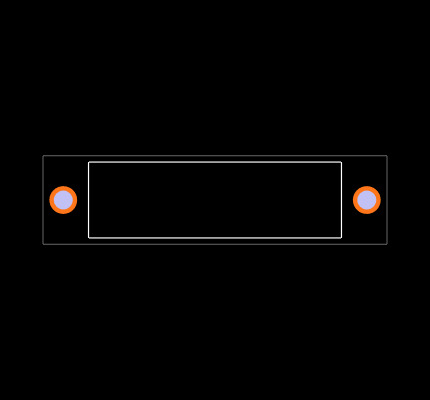

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

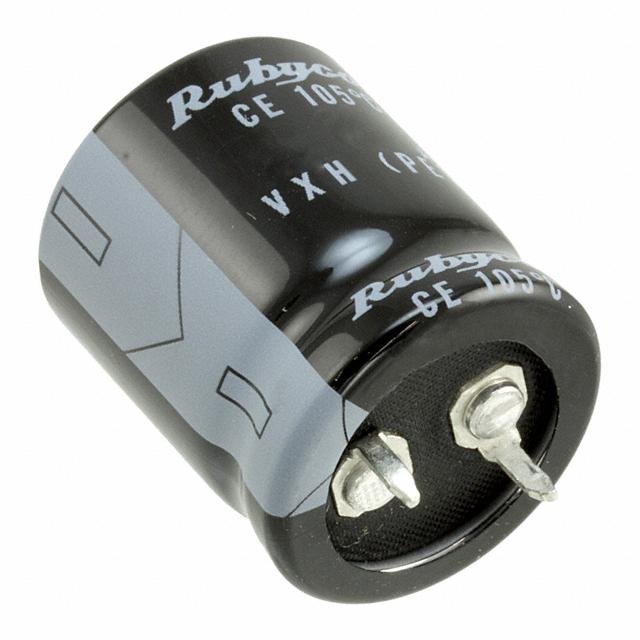

450VXH100MEFCSN22X25
100 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 5000 Hrs @ 105°C
Availability: In Stock
Package Type: RADIAL CAN - SNAP-IN
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 450VXH100MEFCSN22X25 by Rubycon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 450VXH100MEFCSN22X25
| Part Name | 450VXH100MEFCSN22X25 |
| Manufacturer | Rubycon |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 22 (mm) |
| Ripple Current (A) | 0.73 (Arms) |
| Dimensions | 22 (Dia.) x 25 (mm) |
| Mounting Type | Snap-In |
| Series | VXH |
| Height | 25 (mm) |
| Capacitance | 100 (µF) |
| Voltage (V) | 450 (V dc) |
| Leakage Current (A) | 3<sq/>CV (After 5 min) |
| Lifetime | 5000 (h) |
| Lead Pitch | 10 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -25 (°C) |
| Technology | Aluminium Electrolytic |
