46015-0803

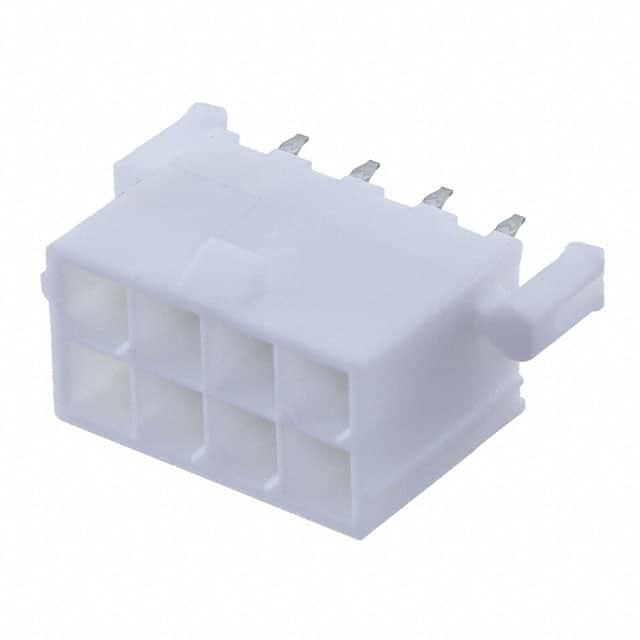

Headers, MF+ HCS VERT HDR DR 8CKT V-0 PEG TIN | Molex Incorporated 46015-0803
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 46015-0803 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

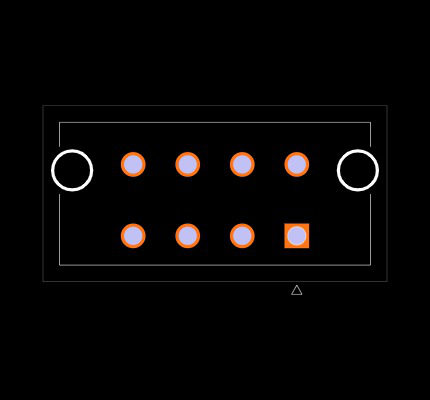

Footprint
No web preview
This Footprint is Available for

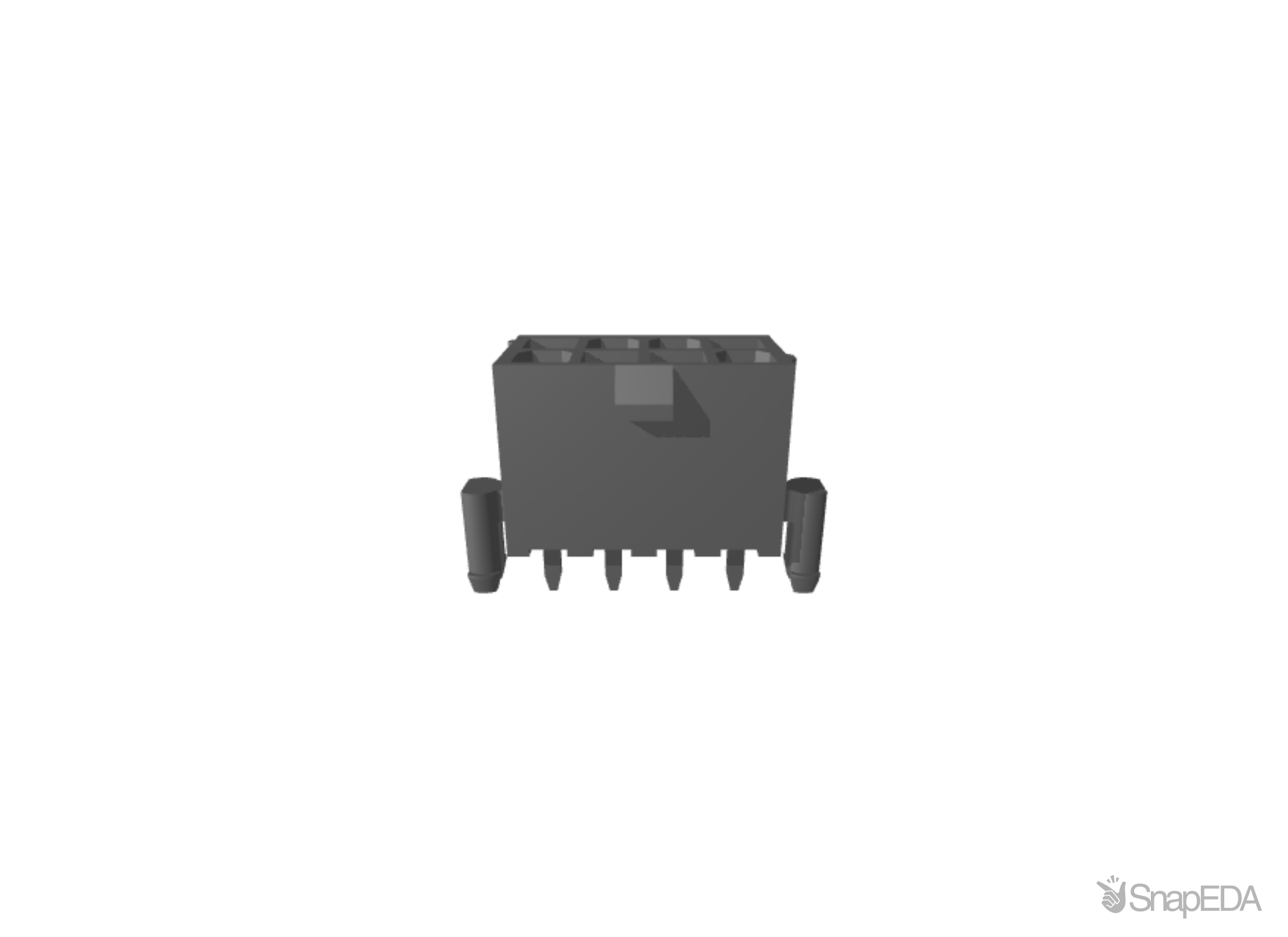

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 46015-0803
| Part Name | 46015-0803 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Current Rating (A) | 12.0 (A) |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 600.0 V |
| Series | Mini-Fit Plus |
| Body Orientation | Straight |
| Pitch | 4.2 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Number Of Contacts | 8 |
| Series Number | 46015 |
Inventory for the 46015-0803 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,234
|
|
Visit Site | |
|
★ Featured
|
6,255
|
|
Visit Site | |
|
★ Featured
|
60
|
240 x $1.44
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Conrad |
|
|
Visit Site | |
| Farnell UK |
3,391
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
3,391
|
|
Visit Site | |
| RS UK |
22
|
|
Visit Site | |
| Sager |
|
12,480 x $1.03
|
Visit Site | |
| TME |
272
|
|
Visit Site | |
| TTI Americas |
17,524
|
|
Visit Site | |
| Verical |
337
|
|
Visit Site | |
| element14 Singapore |
3,391
|
|
Visit Site |
No issues have been reported for the 46015-0803
