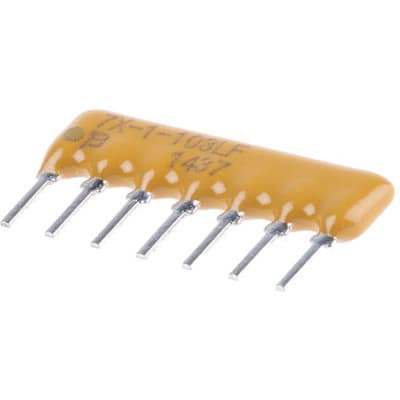

4607X-101-103LF
Resistor,10 Kilohms,1 W,2 %,100 V (Max.),100 ppm/ DegC | Bourns 4607X-101-103LF
Availability: In Stock
Package Type: SIP-7
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4607X-101-103LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4607X-101-103LF
| Part Name | 4607X-101-103LF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 17.73 x 2.49 x 5.08 (mm) |
| Package Case | SIP |
| Series | 4600X |
| Number Of Terminals | 7 |
| Resistance | 10 (kΩ) |
| Temperature Coefficient | ±100 (ppm/°C) |
| Height | 5.08 (mm) |
| Depth | 2.49 (mm) |
| Length | 17.73 (mm) |
| Number Of Resistors | 6 |
| Minimum Operating Temperature | -55 (°C) |
| Case Style | Conformal |
| Power Rating | 0.88 (W) |
| Circuit Designator | BUS |
| Tolerance | ±2 (%) |
| Maximum Operating Temperature | +125 (°C) |
| Power Rating Per Resistor | 0.2 (W) |
