46765-0301

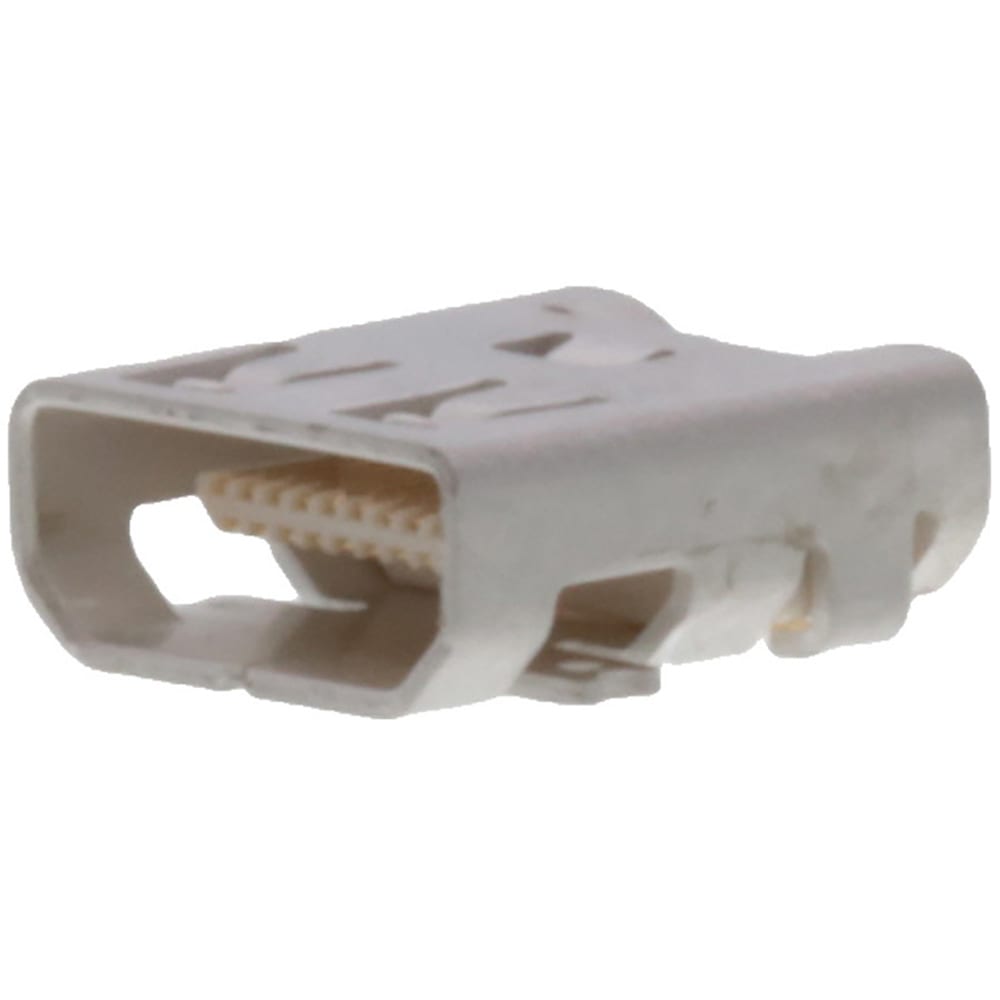

.4mm MicroHDMI SMT Rec .38AuLF | Molex Incorporated 46765-0301
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 46765-0301 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

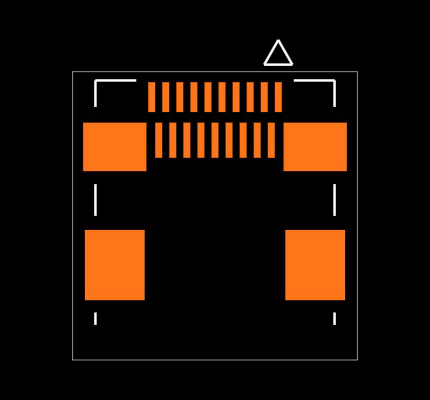

- Symbol and Footprint
- 3D Model

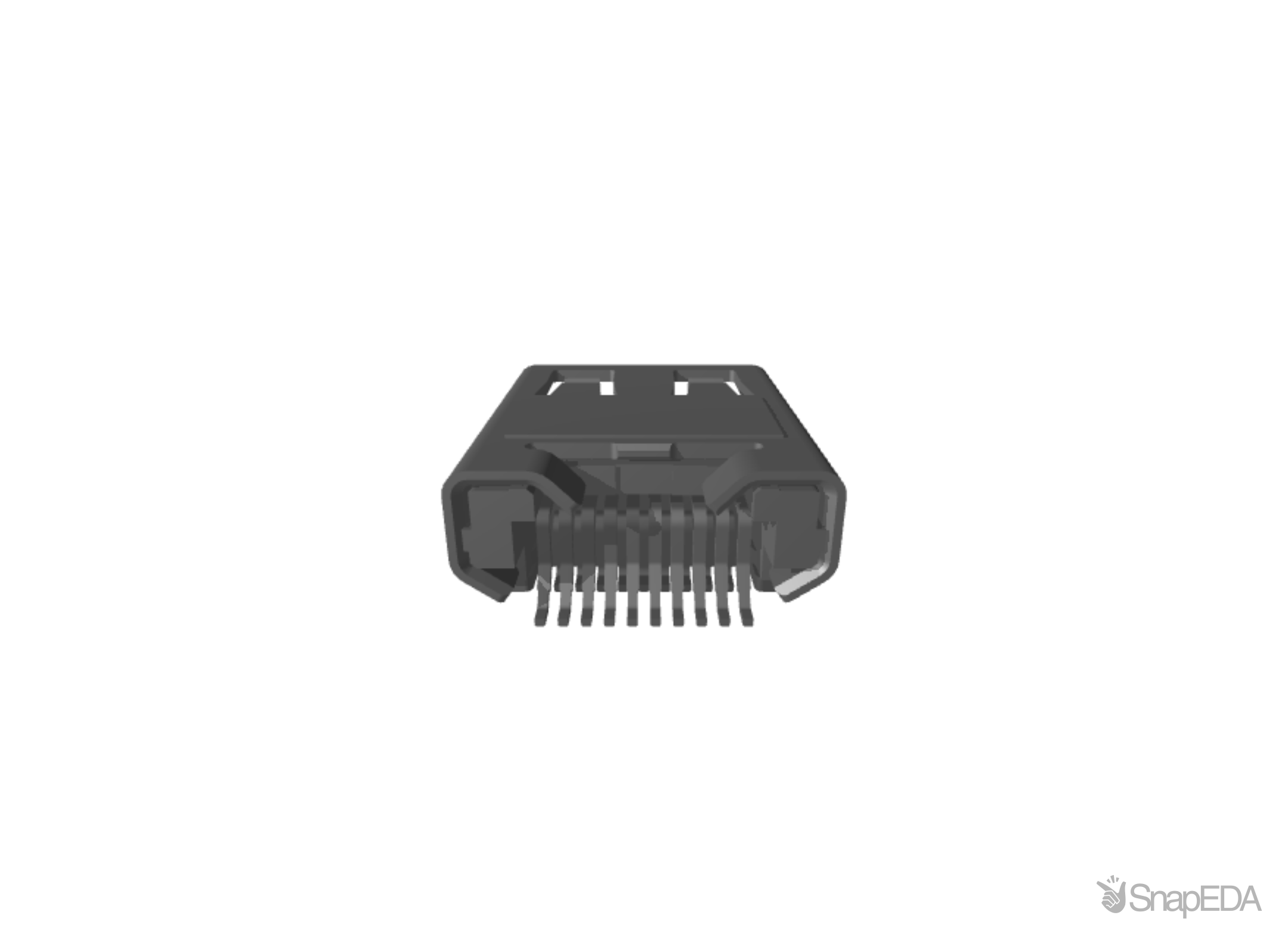

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 46765-0301
| Part Name | 46765-0301 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Number Of Contacts | 19 |
| Current Rating (A) | 800 (mA) |
| Minimum Operating Temperature | -30 (°C) |
| Voltage Rating (V) | 30 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Housing Material | Liquid Crystal Polymer |
| Contact Plating | Gold |
| Termination Method | Solder |
| Size | Type D |
| Maximum Operating Temperature | +85 (°C) |
| Series Number | 46765 |
Inventory for the 46765-0301 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,246
|
|
Visit Site | |
|
★ Featured
|
3,415
|
|
Visit Site | |
| RS Americas |
2
|
1 x $1080.27
|
Visit Site | |
| Verical |
389
|
34 x $2.09
|
Visit Site |
No issues have been reported for the 46765-0301
If you experienced any issues with the symbol or footprint, please report it.
