47352-1001

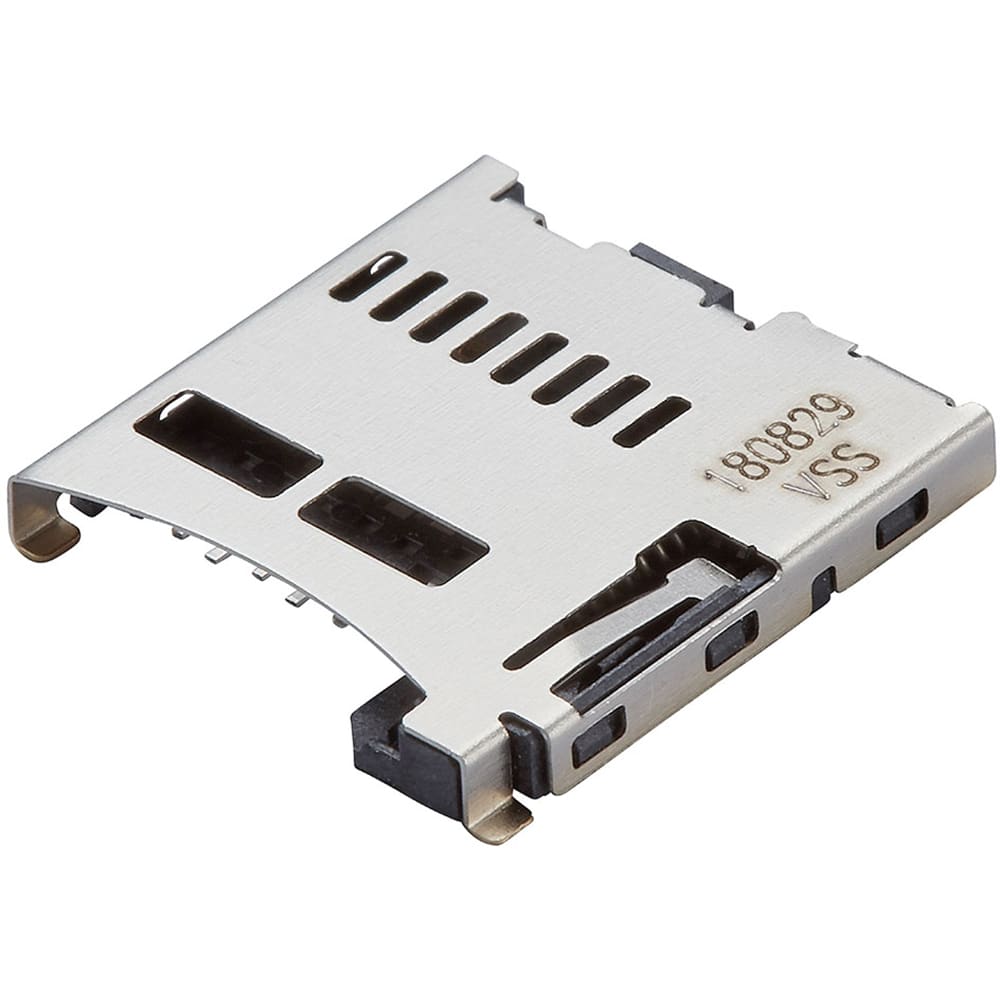

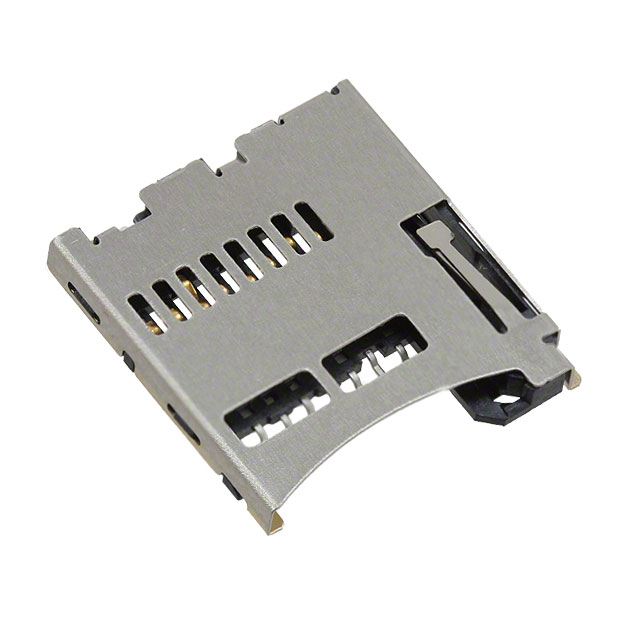

Right Angle Surface Mount Micro SD Card Connector, with Solder Termination | Molex Incorporated 47352-1001
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 47352-1001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

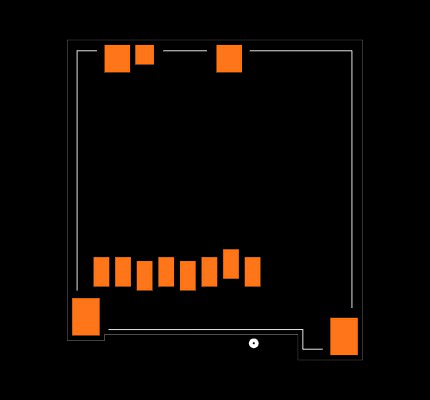

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 47352-1001
| Part Name | 47352-1001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Termination Method | Solder |
| Dimensions | 14 x 1.88 x 15.2 (mm) |
| Mounting Type | Surface Mount |
| Card Type | MicroSD |
| Gender | Male |
| Body Orientation | Right Angle |
| Pitch | 1.1 (mm) |
| Depth | 15.2 (mm) |
| Housing Material | Liquid Crystal Polymer |
| Width | 1.88 (mm) |
| Length | 14.0 (mm) |
| Number Of Rows | 1 |
| Minimum Operating Temperature | -20 (°C) |
| Series | TRANSFLASH|MICROSD CARD |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 8 |
| Series Number | 47388 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Copper Alloy |
No issues have been reported for the 47352-1001
