47388-2001

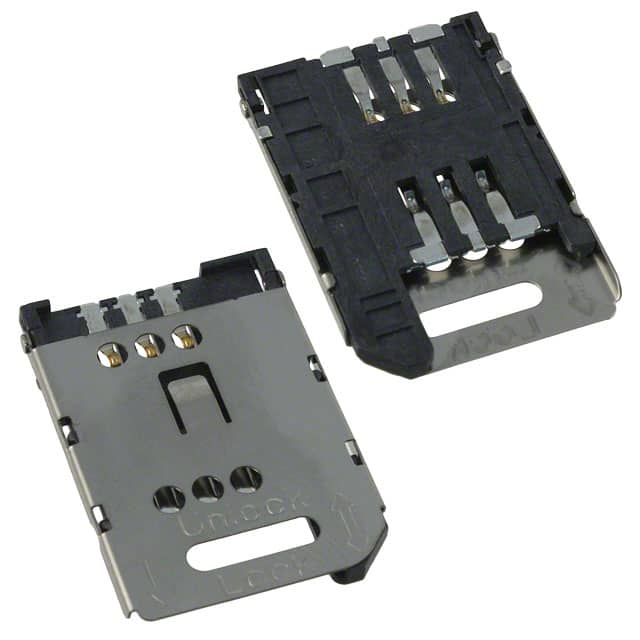

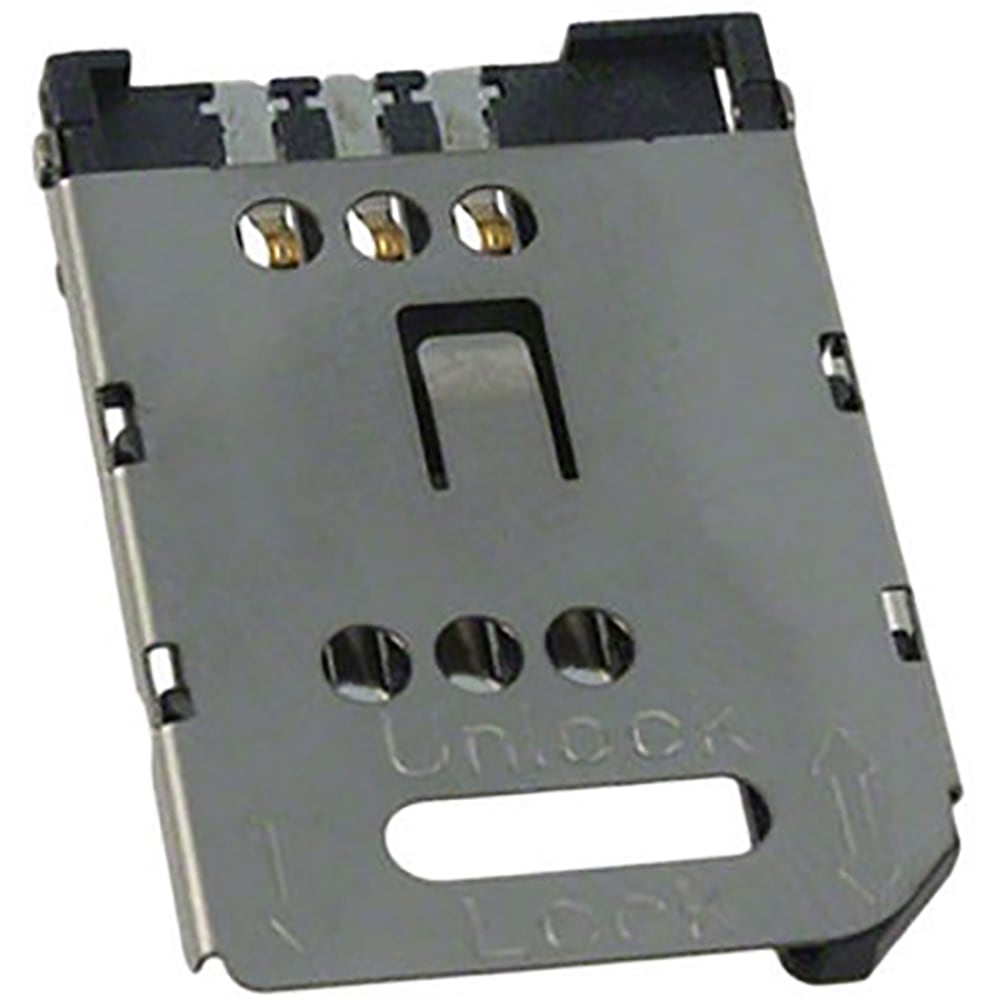

Horizontal Surface Mount SIM Card Connector, with Push In Termination | Molex Incorporated 47388-2001
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 47388-2001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

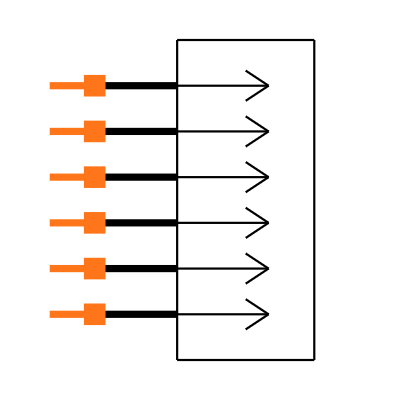

Symbol
No web preview
This Symbol is Available for

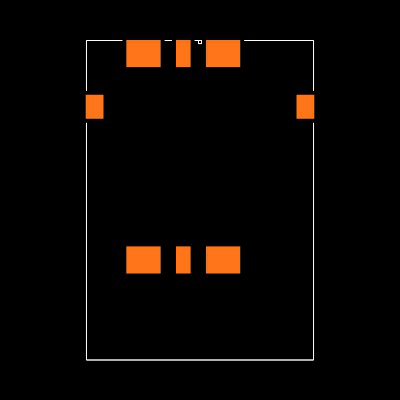

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 47388-2001
| Part Name | 47388-2001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Termination Method | Solder |
| Dimensions | 25.52 x 17.7 x 1.9 (mm) |
| Mounting Type | Surface Mount |
| Card Type | SIM |
| Gender | Female |
| Series Number | 47388 |
| Length | 25.52 (mm) |
| Housing Material | Thermoplastic |
| Width | 17.7 (mm) |
| Depth | 1.9 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Pitch | 2.54 (mm) |
| Contact Plating | Tin |
| Number Of Contacts | 6 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Copper Alloy |
No issues have been reported for the 47388-2001
If you experienced any issues with the symbol or footprint, please report it.
