47553-0001
ASSY FOR PUSH-PUSH 6 PINS SIM CONN. | Molex Incorporated 47553-0001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 47553-0001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

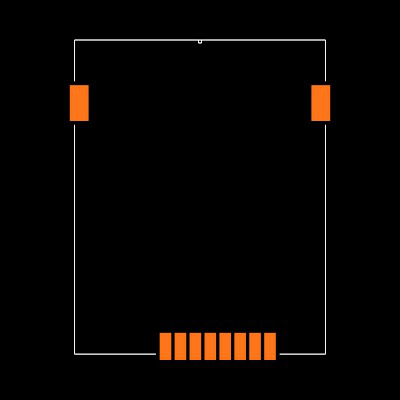

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 47553-0001
| Part Name | 47553-0001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | mini-SIM |
| Termination Method | Solder |
| Dimensions | 26.5 x 19.35 x 2.34 (mm) |
| Mounting Type | Surface Mount |
| Card Type | Mini SIM Card |
| Gender | Female |
| Body Orientation | Straight |
| Series Number | 47553 |
| Length | 26.5 (mm) |
| Housing Material | Thermoplastic |
| Width | 19.35 (mm) |
| Depth | 2.34 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Pitch | 1.27 (mm) |
| Contact Plating | Gold |
| Number Of Contacts | 6 |
| Maximum Operating Temperature | +85 (°C) |
| Insertion Removal Method | Push/Push |
| Contact Material | Copper Alloy |
Inventory for the 47553-0001 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
1,200
|
|
Visit Site | |
| Chip One Stop |
117
|
|
Visit Site | |
| Compona AG |
|
1,200 x $1.12
|
Visit Site | |
| Conrad |
562
|
|
Visit Site | |
| Farnell UK |
45,360
|
|
Visit Site | |
| Newark |
600
|
|
Visit Site | |
| RS UK |
141
|
1 x $2.50
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
3,810
|
|
Visit Site | |
| TTI Europe |
31,200
|
|
Visit Site | |
| element14 Singapore |
4,321
|
|
Visit Site |
No issues have been reported for the 47553-0001
