48037-0001
Conn.; Data; USB; Plug; Shielded; Type A; Rt. Angle; Through Hole; Gold Plating | Molex Incorporated 48037-0001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 48037-0001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

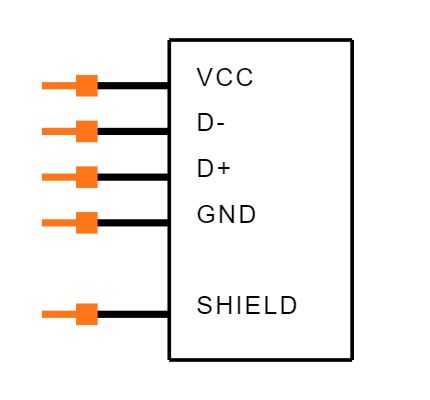

- Symbol and Footprint
- 3D Model

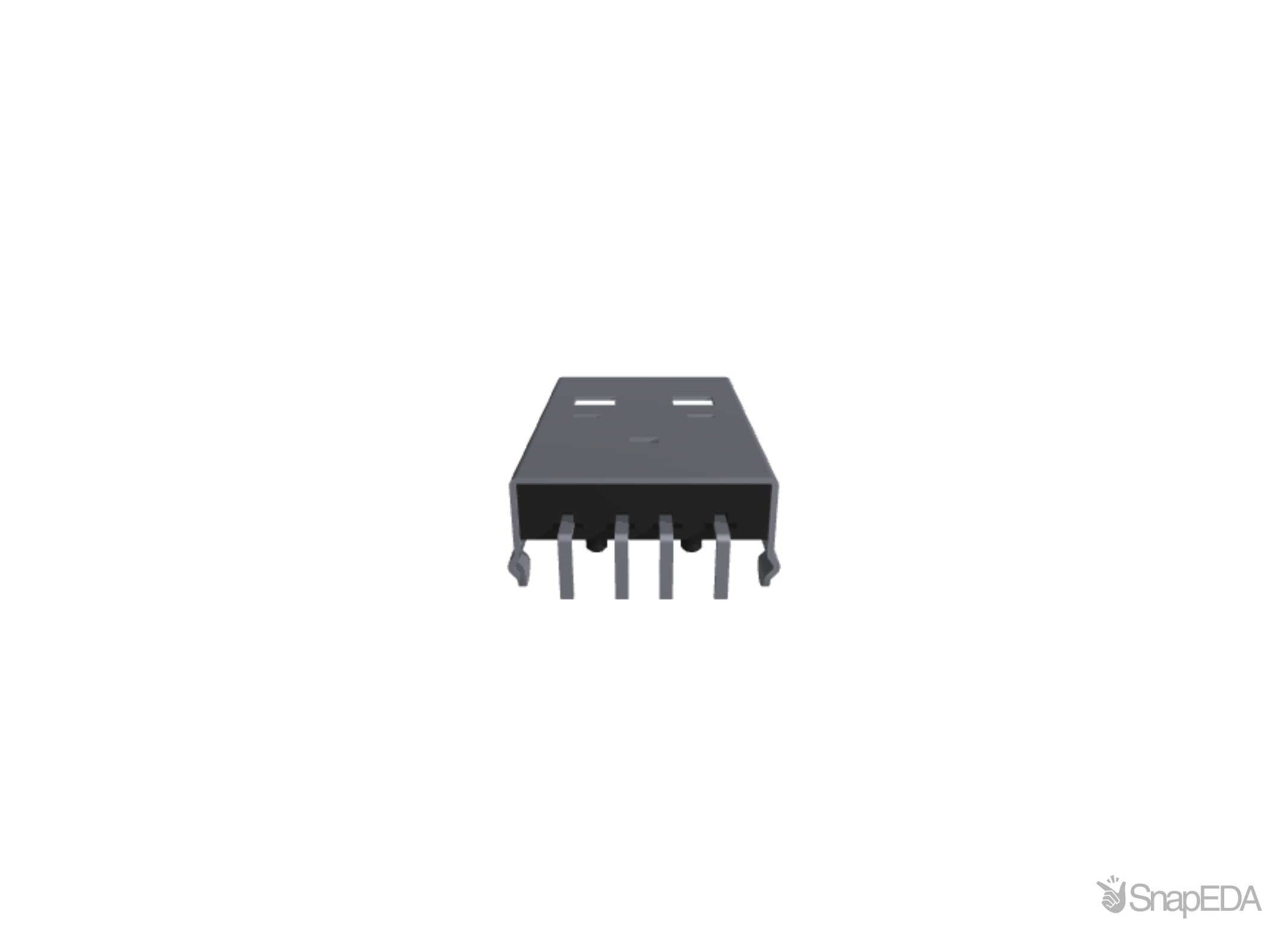

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 48037-0001
| Part Name | 48037-0001 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.5 (A) |
| Usb Version | 2.0 |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 150.0 V |
| Gender | Male |
| Usb Type | A |
| Number Of Ports | 1 |
| Minimum Operating Temperature | -20.0 (°C) |
| Termination Method | Solder |
| Series Number | 48037 |
| Maximum Operating Temperature | +85 (°C) |
| Body Orientation | Right Angle |
| Contact Material | Brass |
