4816P-1-471LF
Resistor,Network,Thick Film,Res 470 Ohms,Pwr-Rtg 1.28 W,Tol 1%,DIP,16 Pins | Bourns 4816P-1-471LF
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4816P-1-471LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

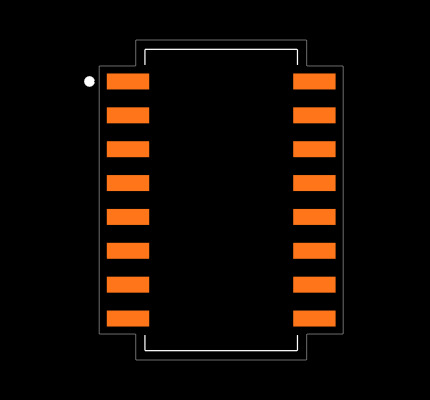

Footprint
No web preview
This Footprint is Available for

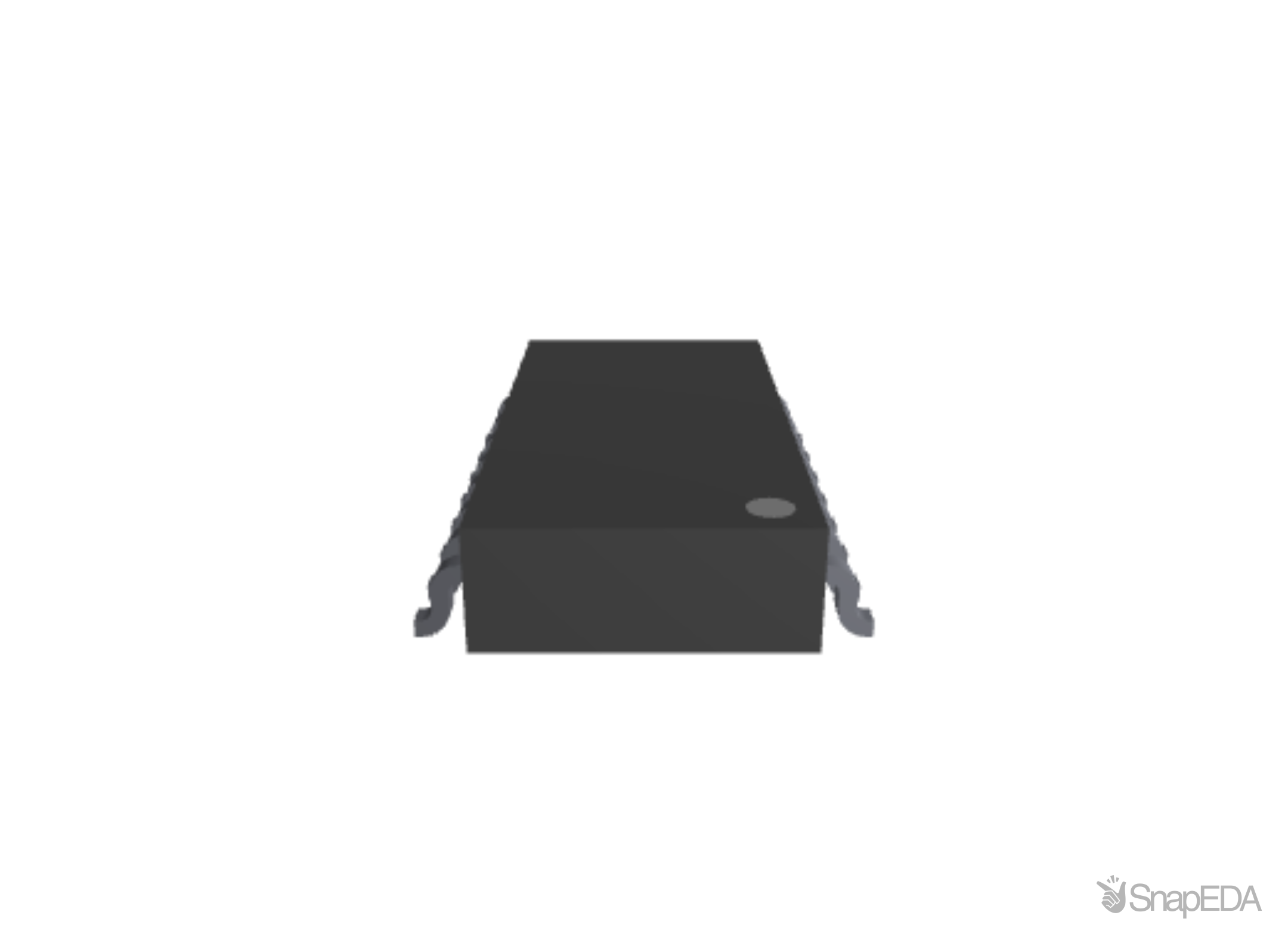

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4816P-1-471LF
| Part Name | 4816P-1-471LF |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Automotive Standard | AEC-Q200 |
| Maximum Operating Temperature | +125 (°C) |
| Power Rating Per Resistor | 0.16 (W) |
| Series | 4800P |
| Number Of Terminals | 16 |
| Termination Style | Standard SMT |
| Resistance | 470 (Ω) |
| Temperature Coefficient | ±100 (ppm/°C) |
| Height | 7.62 (mm) |
| Depth | 2.03 (mm) |
| Length | 12.45 (mm) |
| Number Of Resistors | 8 |
| Minimum Operating Temperature | -55 (°C) |
| Package/Case | DIP |
| Case Style | Moulded |
| Power Rating | 1.28 (W) |
| Circuit Designator | ISOL |
| Tolerance | ±2 (%) |
| Resistor Type | Network |
| Dimensions | 12.45 x 7.62 x 2.03 (mm) |
