4816P-1-472LF

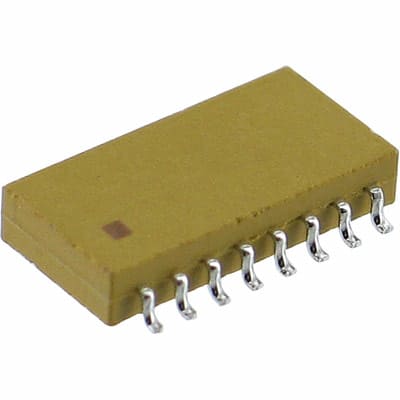

Resistor,4.7 Kilohms,1.28 W @ DegC,50 V (Max.),100 ppm/ DegC,16 | Bourns 4816P-1-472LF
Availability: In Stock
Package Type: SOIC-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4816P-1-472LF by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol

No web preview
This Symbol is Available for
Footprint

No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 4816P-1-472LF
Part Name | 4816P-1-472LF |
Manufacturer | Bourns |
Category | Electronic Components |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Automotive Standard | AEC-Q200 |
Power Rating Per Resistor | 0.16 (W) |
Tolerance | ±2 (%) |
Package Case | SOIC |
Series | 4800X |
Resistor Type | Network |
Termination Style | Standard SMT |
Resistance | 4.7 (kΩ) |
Temperature Coefficient | ±100 (ppm/°C) |
Height | 2.03 (mm) |
Depth | 5.59 (mm) |
Length | 11.18 (mm) |
Number Of Resistors | 8 |
Minimum Operating Temperature | -55 (°C) |
Case Style | Moulded |
Power Rating | 1.28 (W) |
Circuit Designator | ISOL |
Maximum Operating Temperature | +125 (°C) |
Number Of Terminals | 16 |
Dimensions | 11.18 x 5.59 x 2.03 (mm) |
