482020514001

Name: 482020514001
Brand: Würth Elektronik Midcom

Rotary Encoder Mechanical 20 Quadrature (Incremental) Vertical

Availability: Out of Stock

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the 482020514001 by Würth Elektronik Midcom and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

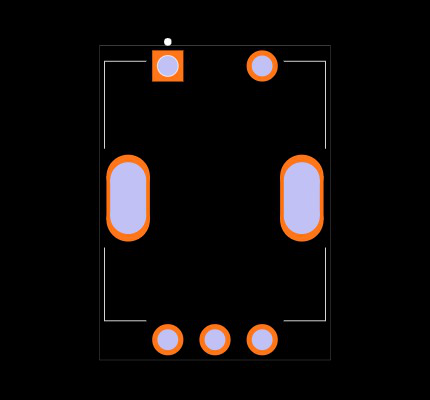

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the 482020514001

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the 482020514001

Part Name	482020514001
Manufacturer	Würth Elektronik
Product Series Size	11x13.75x26.6mm Shaft with bushing THT vertical with Push button switch WS-ENTV
Division	Electromechanics
Article Description Long	11.7x13.75mm incremental Encoder, 20 pulse with 20 Detent, vertical operation ,THT , metal shaft length 20 mm with cut flat shaft ,with Bushing , with switch function, Tray
Width	{'is_url': False, 'value': u''}
Product Family	Encoder Switches
Ro Hs Approval	2011/65/EU&2015/863
Rated Current (A)	0.01
Spq	100
Current Revision (A)	2.1.0
Packaging Type	Tray
Height	{'is_url': False, 'value': u''}
Reach Approval	Conform or declared
Weight	4.2
Length	{'is_url': False, 'value': u''}
Withstanding Voltage (V)	300
Product Unit	eiCan
Product Group Description	Switches
RoHS	True
Life Cycle Status	Active
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF

We could not find inventory or pricing across major distributors for the 482020514001 by Würth Elektronik Midcom.
