Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
48204-0001
Conn.; Data; USB; Recept.; Shielded; Rt. Angle; Reverse Mount; Gold Plating | Molex Incorporated 48204-0001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 48204-0001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

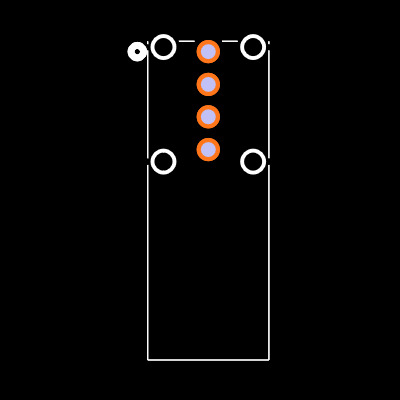

Footprint
No web preview
This Footprint is Available for

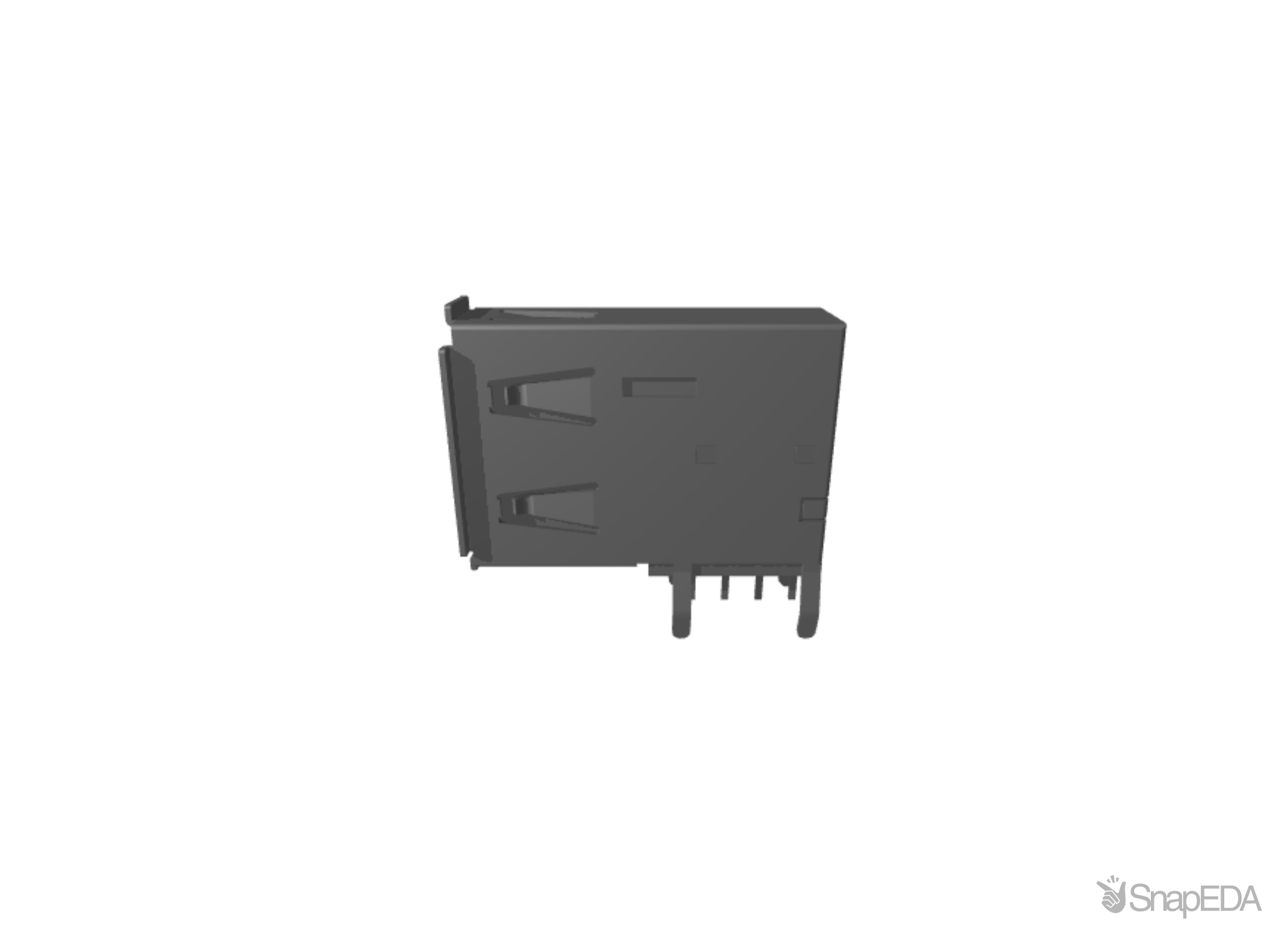

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 48204-0001
| Part Name | 48204-0001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Current Rating (A) | 1.5 (A) |
| Usb Version | 2.0 |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 30.0 V |
| Series | 48204 |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Number Of Ports | 1 |
| Minimum Operating Temperature | -55.0 (°C) |
| Gender | Female |
| Series Number | 48204 |
| Maximum Operating Temperature | +85 (°C) |
| Usb Type | A |
| Orientation | Right Angle |
Inventory for the 48204-0001 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,233
|
|
Visit Site | |
|
★ Featured
|
139
|
|
Visit Site | |
|
★ Featured
|
12,630
|
1,050 x $0.29
|
Visit Site | |
| Avnet America |
1,276
|
|
Visit Site | |
| Conrad |
90
|
|
Visit Site | |
| CoreStaff |
7
|
|
Visit Site | |
| Farnell UK |
952
|
|
Visit Site | |
| Heilind Europe |
10,798
|
|
Visit Site | |
| Interstate Connecting Components |
601
|
|
Visit Site | |
| Newark |
1
|
|
Visit Site | |
| Onlinecomponents |
10,000
|
|
Visit Site | |
| Powell Electronics |
9,229
|
|
Visit Site | |
| Sager |
1,070
|
|
Visit Site | |
| TME |
22
|
|
Visit Site | |
| TTI Americas |
14,082
|
|
Visit Site | |
| Verical |
45,420
|
240 x $0.77
|
Visit Site | |
| element14 Singapore |
952
|
|
Visit Site |
No issues have been reported for the 48204-0001
If you experienced any issues with the symbol or footprint, please report it.
