48258-0001

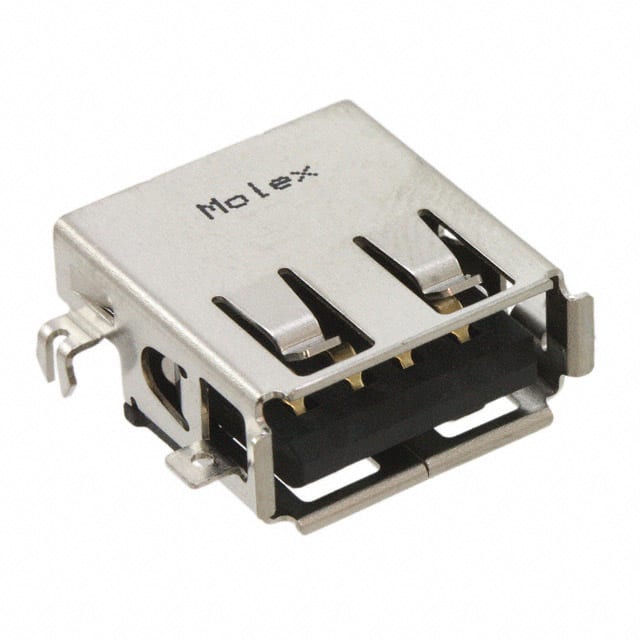

Universal Serial Bus Shielded I O Receptacle, Type A, Right Angle | Molex Incorporated 48258-0001
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 48258-0001 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

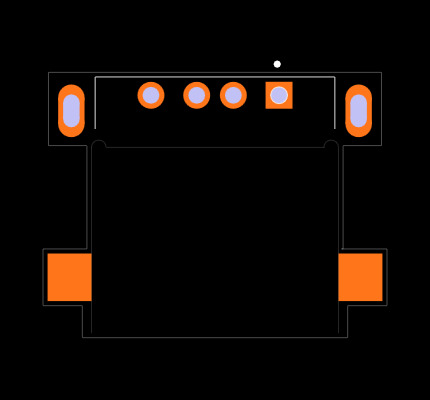

- Symbol and Footprint
- 3D Model
- Alternates
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 48258-0001
| Part Name | 48258-0001 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.5 (A) |
| Usb Version | 2.0 |
| Mounting Type | Panel Mount |
| Voltage Rating (V) | 250.0 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Number Of Ports | 1 |
| Minimum Operating Temperature | -25.0 (°C) |
| Termination Method | Solder |
| Contact Material | Brass, Phosphor Bronze |
| Maximum Operating Temperature | +85 (°C) |
| Usb Type | A |
| Series Number | 48258 |
Inventory for the 48258-0001 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
7,462
|
|
Visit Site | |
|
★ Featured
|
4,541
|
|
Visit Site | |
|
★ Featured
|
10,400
|
54 x $6.46
|
Visit Site | |
| Avnet America |
3,150
|
|
Visit Site | |
| Chip One Stop |
15,838
|
|
Visit Site | |
| Conrad |
15,838
|
|
Visit Site | |
| Farnell UK |
14,255
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Onlinecomponents |
11,437
|
|
Visit Site | |
| Powell Electronics |
10,684
|
|
Visit Site | |
| RS Americas |
345
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Americas |
3,500
|
350 x $0.58
|
Visit Site | |
| Verical |
10,150
|
|
Visit Site |
