499252-6

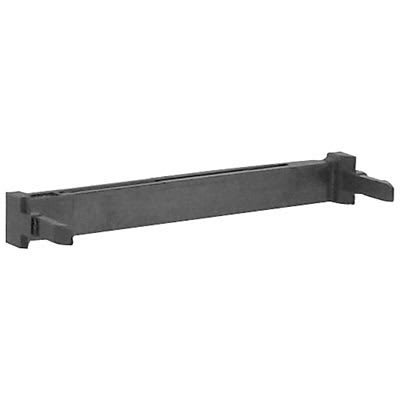

Strain Relief Cable Connector 34 Thermoplastic UL 94V-0 Black | TE Connectivity 499252-6
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 499252-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

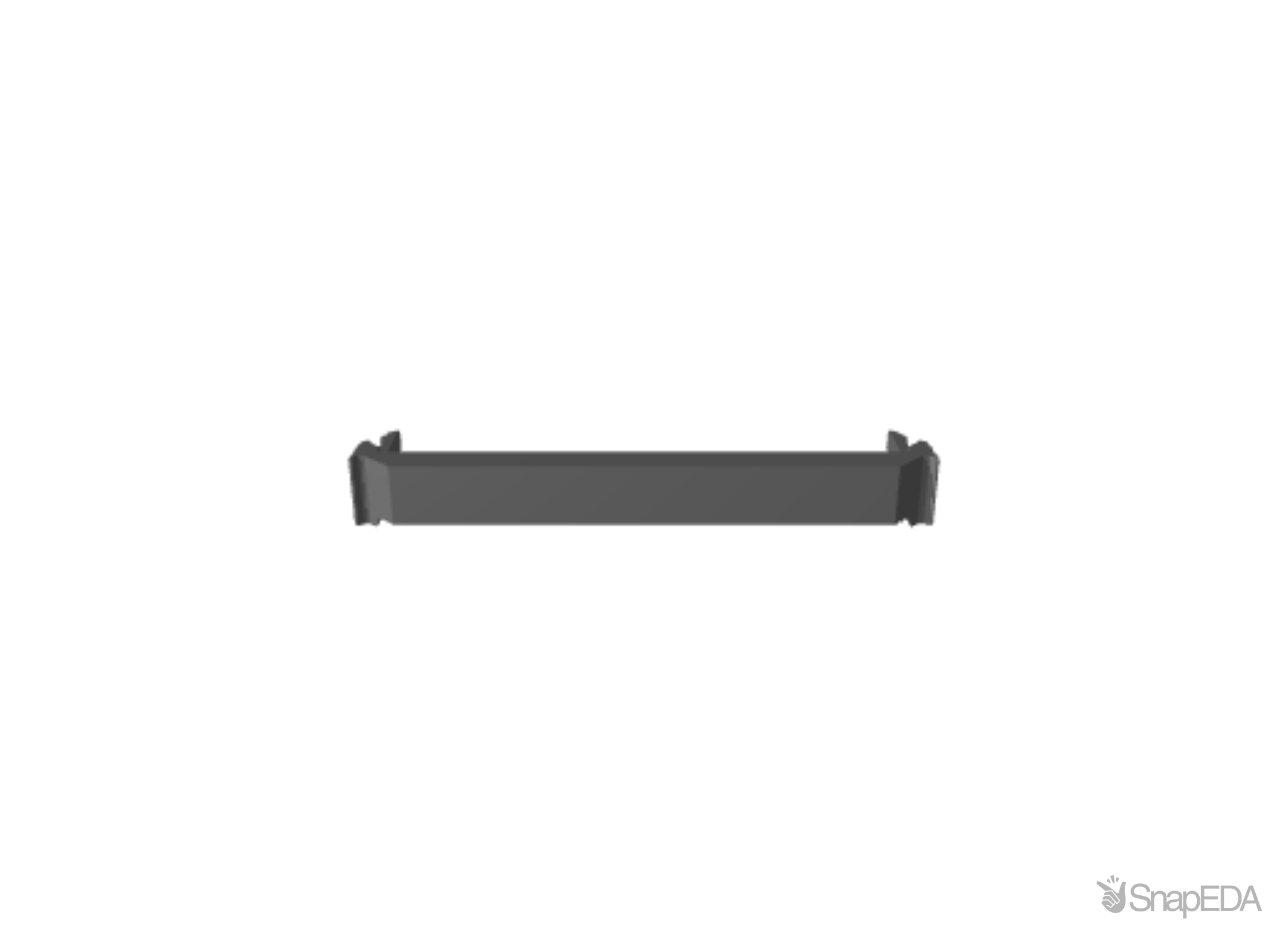

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 499252-6
| Part Name | 499252-6 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Transmits (Typical) | Signal (Data) |
| Contact Base Material | Phosphor Bronze |
| UL File Number | E28476 |
| Width | .2402 |
| Color | Black |
| Accessory Type | Strain Relief |
| Accessory Color | Black |
| TE Internal Number | 499252-6 |
| Packaging Quantity | 500 |
| UL Rating | Recognized |
| Agency/Standard | UL |
| CSA File Number | LR 7189 |
| Body Material | Thermoplastic |
| Height | .581 |
| Length | 48.01 |
| Contact Mating Area Plating Material | Gold or Palladium Nickel or Performance Based |
| For Use With | Receptacle Connector |
| Product Type | Accessory |
| Packaging Method | Bag/Box |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | AMP Novo Series |
| Series | AMP-LATCH |
| Accessory Type | Strain Relief Connector |
Inventory for the 499252-6 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
12,474
|
|
Visit Site |
No issues have been reported for the 499252-6
If you experienced any issues with this part, please report it.
