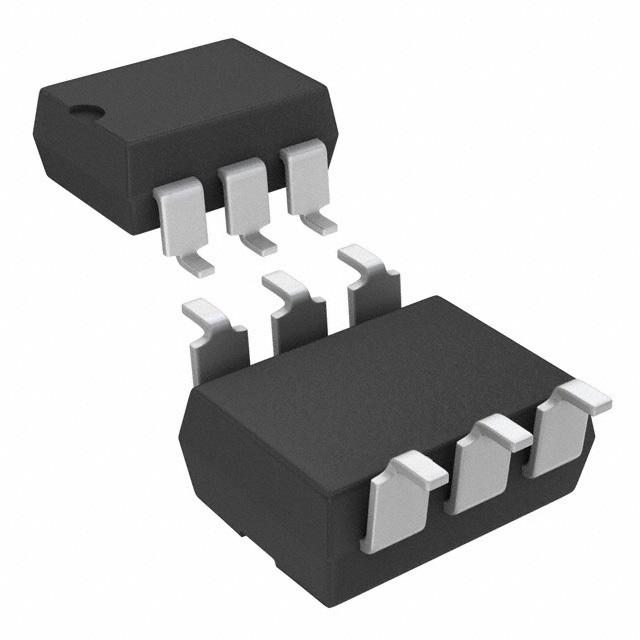

4N35-X009T
Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Availability: Out of Stock
Package Type: SMD-6
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4N35-X009T by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4N35-X009T
| Part Name | 4N35-X009T |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Forward Voltage (V) | 1.7 (V) |
| Output Device | Phototransistor |
| Input Current Type (A) | DC |
| Mounting Type | Surface Mount |
| Series | 4N35 |
| Number Of Channels | 2 |
| Typical Rise Time | 10 (µs) |
| Maximum Current Transfer Ratio (A) | 50 (%) |
| Isolation Voltage (V) | 5000 Vrms |
| Package Type | SMD |
| Number Of Pins | 6 |
| Special Features | Industry standard dual-in-line 6 pin package, Input-output coupling capacitance 0.5 pF, Interfaces with common logic families |
| Maximum Input Current (A) | 60 mA |
| Typical Fall Time | 10 (µs) |
No issues have been reported for the 4N35-X009T
If you experienced any issues with this part, please report it.
