4PCV-08-006
SnapVerified
8 Circuit 0.325" (8.26mm) Barrier Block Connector, Screws with Captive Plate
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4PCV-08-006 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

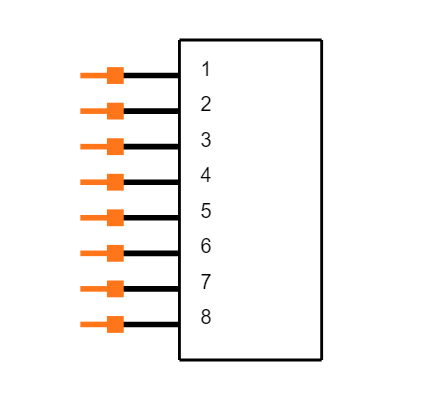

Symbol
No web preview
This Symbol is Available for

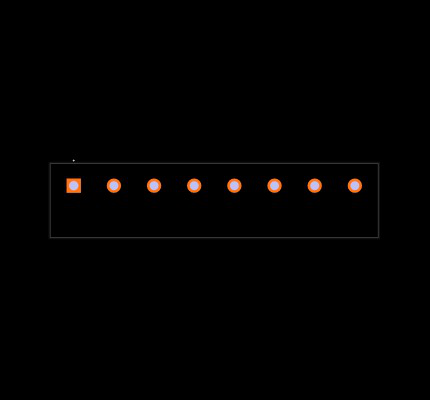

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4PCV-08-006
| Part Name | 4PCV-08-006 |
| Manufacturer | TE Connectivity |
| Bottom Termination Style | Printed Circuit Pin |
| Centerline (Pitch) | .325 |
| Top Hardware | Wire Clamp Combo Head |
| Housing Material | Polyamide |
| Screw Plating Material | Zinc |
| Barrier Strip Style | Tri-Barrier |
| Screw Size | 4-40 |
| Screw Head Type | Wire Clamp Combo Head |
| Number of Positions | 8 |
| Current Rating (Max) (A) | 20 |
| Block Style | Open Bottom with Standoffs |
| TE Internal Number | 9-1437648-1 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Rows | 1 |
| Product Type | Barrier Strip |
| Terminal Material | Copper Alloy |
| Packaging Method | Package |
| Packaging Quantity | 160 |
| Length | 2.66 |
| RoHS | True |
| Mounting Angle | Vertical |
| Number of Levels | 1 |
| Color | Black |
| Mounting Ears | Without |
| Current Rating (A) | 20 |
| Mounting Options | None |
| UL Flammability Rating | UL 94V-0 |
| Screw Material | Steel |
| Mounting Insert | Without |
| Voltage (V) | 150 |
| Terminal Plating Material | Tin |
| Wire Size | .3 – 3 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
