4TPE220MAZB

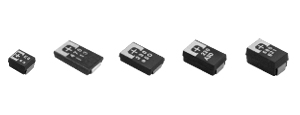

220uF SMD Solid Polymer Tantalum Capacitor, 4 V +/-20%, POSCAP Series | Panasonic Electronic Components 4TPE220MAZB
Availability: In Stock
Package Type: 3528-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 4TPE220MAZB by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 4TPE220MAZB
| Part Name | 4TPE220MAZB |
| Manufacturer | Panasonic |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 3.5 x 2.8 x 1.9 (mm) |
| Mounting Type | Surface Mount |
| Series | POSCAP TPE |
| Leakage Current (A) | 88 μA |
| Length | 3.5 (mm) |
| Equivalent Series Resistance | 35 (mΩ) |
| Height | 1.9 (mm) |
| Capacitance | 220 (µF) |
| Depth | 2.8 (mm) |
| Dielectric Material Family | Tantalum |
| Technology | Polymer |
| Minimum Operating Temperature | -55 (°C) |
| Electrolyte Type | Solid |
| Package/Case | B2 |
| Tolerance | ±20 (%) |
| Maximum Operating Temperature | +85 (°C) |
| Voltage (V) | 4 (V dc) |
