5-102393-2
08 AMPMODU MT ASSY DR.100CL SN
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-102393-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

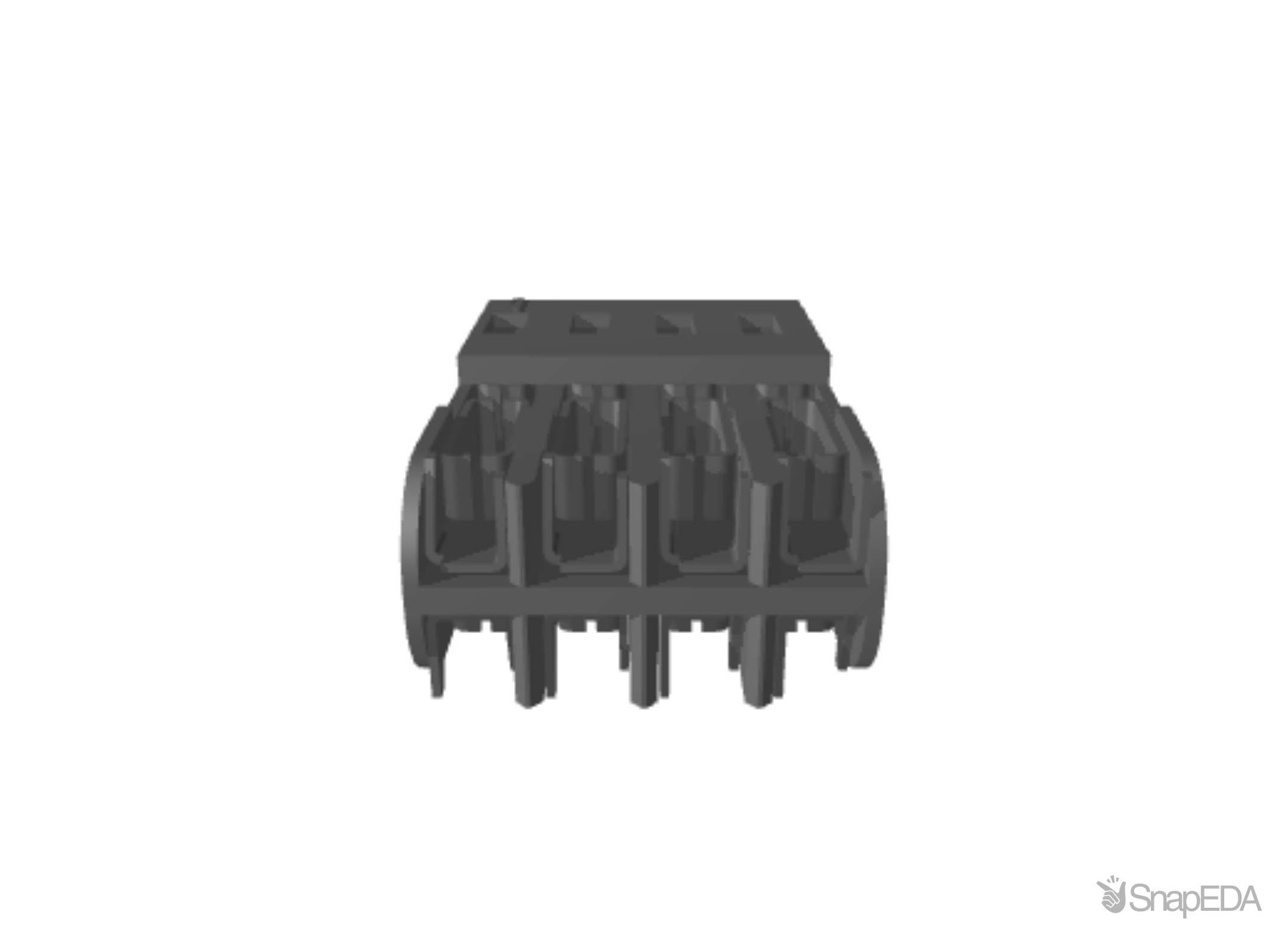

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-102393-2
| Part Name | 5-102393-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Dielectric Withstanding Voltage (V) | 600 V |
| Housing Entry Configuration | Both Ends Closed |
| Housing Material | Thermoplastic |
| Insulation Resistance | 5000 |
| Connector Style | Receptacle |
| Connector & Contact Terminates To | Wire & Cable |
| Insulation Diameter (Max) | 1.27 mm |
| TE Internal Number | 5-102393-2 |
| Number of Positions | 8 |
| Termination Method to Wire & Cable | Insulation Displacement Crimp (IDC) |
| Number of Rows | 2 |
| Housing Color | Black |
| Termination Resistance | 15 |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -65 – 105 |
| Insulation Diameter | 1.27 |
| Packaging Method | Tray |
| Connector Type | Housing |
| Packaging Quantity | 310 |
| Length | 10.16 |
| Applied Pressure | Standard |
| Mating Alignment | Without |
| PCB Contact Termination Area Plating Material | Tin |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Stamped | Yes |
| UL Flammability Rating | UL 94V-0 |
| Height | .24 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Wire Size | 30 – 26 |
| Mating Connector Lock | Without |
