5-104809-3
SnapVerified
Connector Header Through Hole 4 position 0.100" (2.54mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-104809-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

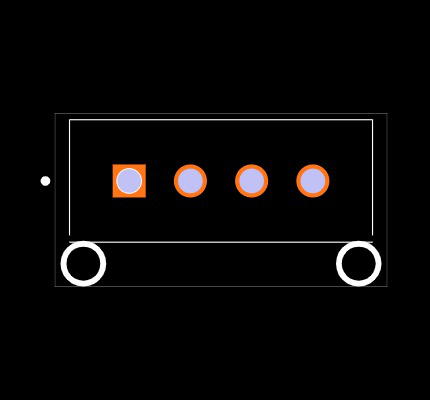

Footprint
No web preview
This Footprint is Available for

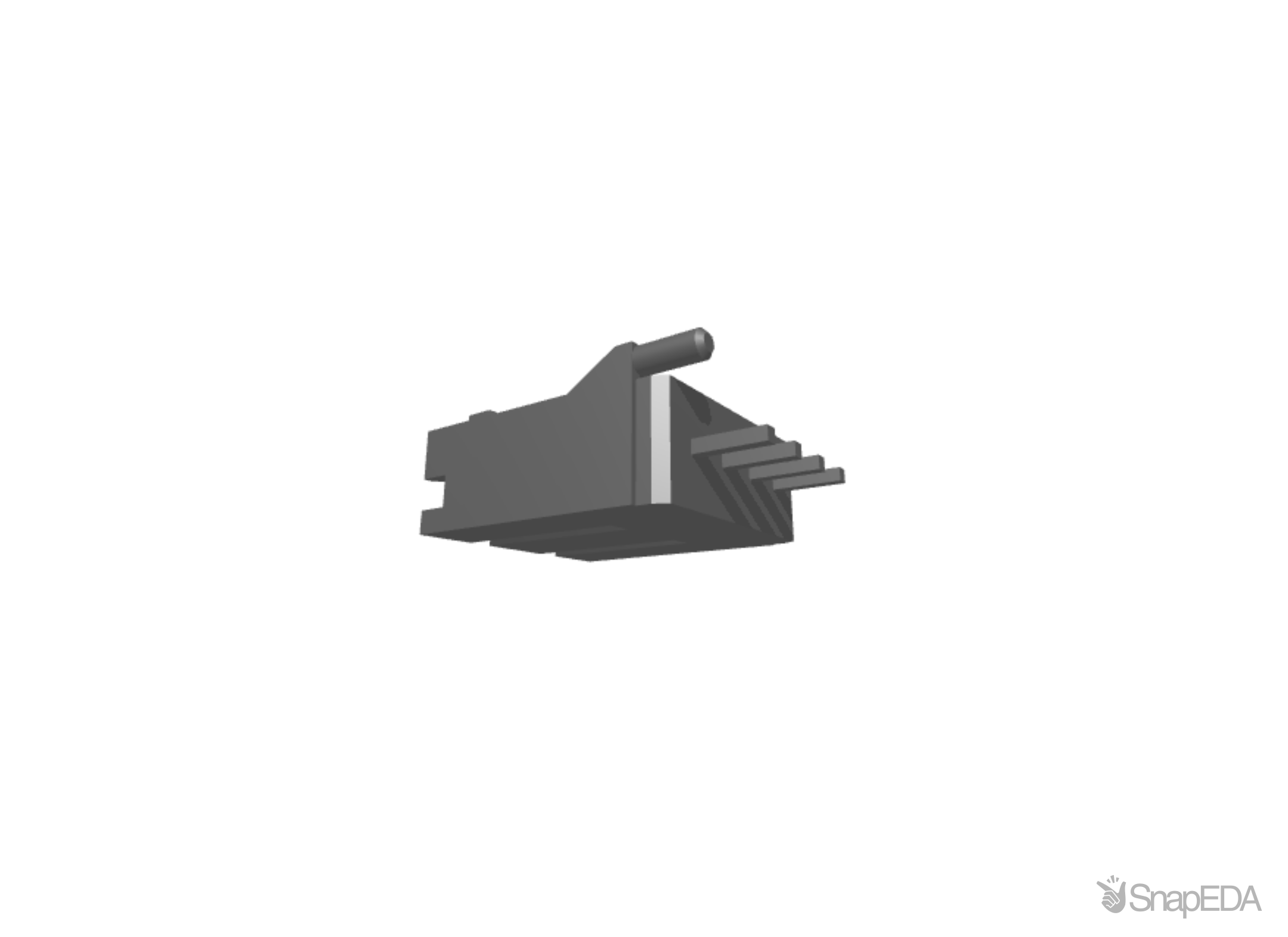

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-104809-3
| Part Name | 5-104809-3 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Latched |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | High |
| Dielectric Withstanding Voltage (V) | 600 |
| Mating Retention Type | Hold-Down |
| Housing Material | Thermoplastic |
| Insulation Resistance | 5000 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Hold-Down |
| Contact Retention Type | Locking Lance |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.58 |
| Termination Post & Tail Length | .13 |
| Contact Current Rating (Max) (A) | 3 |
| Mating Post Length | 5.84 |
| TE Internal Number | 5-104809-3 |
| PCB Mount Orientation | Vertical |
| PCB Mount Alignment | Without |
| Connector Height | 13.59 |
| Number of Rows | 1 |
| PCB Contact Termination Area Plating Material Thickness | 2.54 |
| Header Type | Shrouded |
| Termination Resistance | 15 |
| Contact Base Material | Brass |
| Contact Shape | Square |
| Housing Color | Black |
| Termination Method to Printed Circuit Board | Through Hole (SMT Compatible) |
| Connector Length | .5 |
| Termination Method to Wire & Cable | Crimp |
| Operating Temperature Range | -65 – 105 |
| Packaging Method | Tube |
| Packaging Quantity | 42 |
| Number of Positions | 4 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Approved Standards | CSA LR7189 |
| Mating Retention | With |
| Strain Relief | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 15 |
| Row-to-Row Spacing | 2.54 |
| PCB Connector Assembly Type | PCB Mount Header |
| Contact Retention | With |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5-104809-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
587
|
|
Visit Site | |
|
★ Featured
|
752
|
|
Visit Site | |
|
★ Featured
|
2,708
|
1 x $1.11
|
Visit Site | |
| Avnet America |
850
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
2,732
|
|
Visit Site | |
| Conrad |
2,732
|
1 x $0.89
|
Visit Site | |
| Farnell UK |
2,478
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
2,732
|
|
Visit Site | |
| Onlinecomponents |
547
|
|
Visit Site | |
| Powell Electronics |
1,803
|
|
Visit Site | |
| Sager |
|
3,024 x $0.89
|
Visit Site | |
| TME |
2,730
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
2,730
|
|
Visit Site |
No issues have been reported for the 5-104809-3
If you experienced any issues with the symbol or footprint, please report it.
