5-1393302-2
Electromechanical Relay 24VDC 324Ohm 120(NO)/45(NC)A SPDT (( 25.9mm 25.9mm 27.4mm)) THT Power Relay Automotive
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-1393302-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

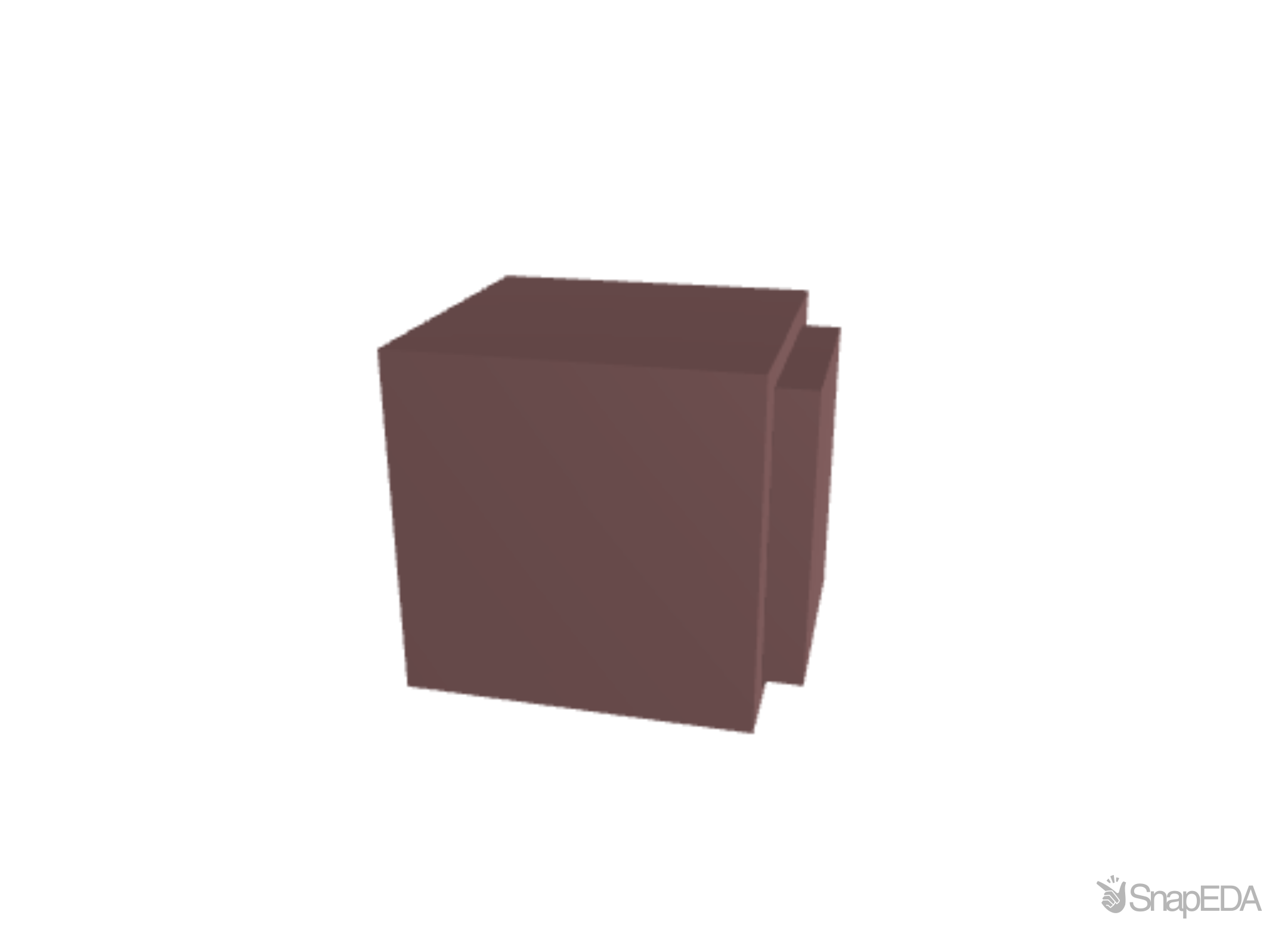

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-1393302-2
| Part Name | 5-1393302-2 |
| Manufacturer | TE Connectivity |
| Coil Power Rating (DC) | 1800 |
| Rated Voltage (V) | 24 |
| Contact Limiting Making Current (A) | 120 |
| Relay Type | Power Relay F4 |
| Height Class (Mechanical) | 20 – 25 mm |
| TE Internal Number | 5-1393302-2 |
| Width | 25.9 |
| Contact Limiting Continuous Current (A) | 60 |
| Coil Resistance | 324 |
| Contact Current Class (A) | 30 – 50 A |
| Contact Arrangement | 1 Form C (CO) |
| Insulation Initial Dielectric Between Contacts and Coil | 500 |
| Mounting Brackets | Without |
| Current Rating (85°C) (A) | 20 |
| Width Class (Mechanical) | 25 – 30 mm |
| Contact Base Material | Ag Alloy |
| Terminal Type | PCB-THT |
| Environmental Ambient Temperature (Max) | 125 |
| Length | 1.02 |
| Contact Switching Load (Min) | 1000mA @ 5VDC |
| Rated Coil Voltage (V) | 24 |
| Insulation Initial Dielectric Between Coil/Contact Class | 0 – 500 V |
| Coil Magnetic System | Monostable, DC |
| RoHS | True |
| Environmental Ambient Temperature Class | 105 – 125°C |
| Mounting Type | Printed Circuit Board |
| Weight | 35 |
| Contact Limiting Short-Time Current (A) | 240 |
| Contact Limiting Breaking Current (A) | 20 |
| Coil Power Rating Class | >1.5W |
| Height | 24.9 |
| Length Class (Mechanical) | 25 – 30 mm |
| Environmental Category of Protection | RTI |
| Insulation Initial Dielectric Between Open Contacts | 500 |
