5-1418637-5
CAN MODUL5X2 / 1X3POS., MQS
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-1418637-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

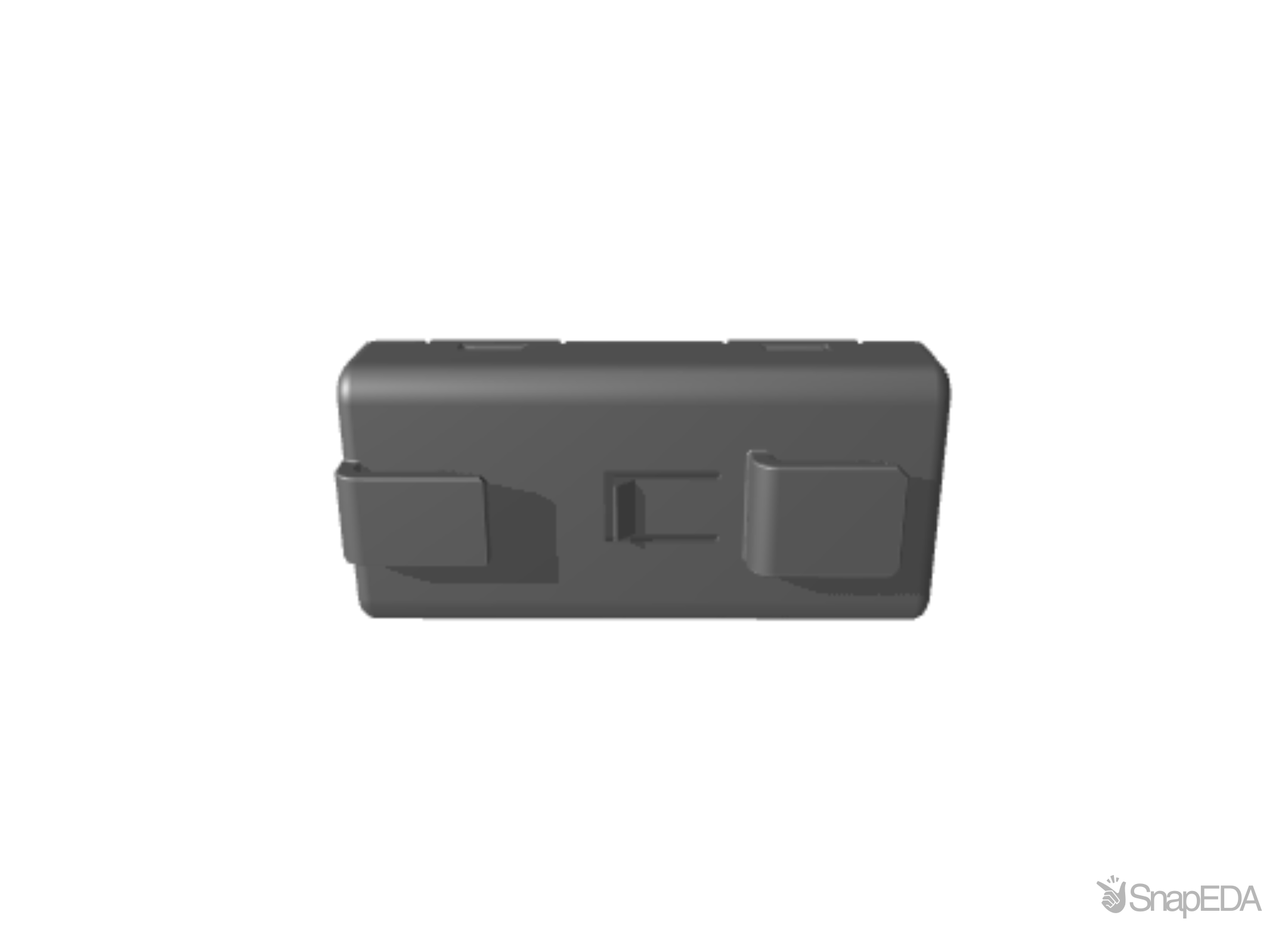

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-1418637-5
| Part Name | 5-1418637-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.5 |
| Circuit Application | Signal |
| UL Flammability Rating | None |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention Type | Solder Tail |
| PCB Mount Retention | Without |
| Tab Thickness | .025 |
| Operating Temperature (Max) | 70 |
| TE Internal Number | 5-1418637-5 |
| Number of Positions | 13 |
| PCB Mount Alignment | Without |
| Voltage Rating (Max) (V) | 24 |
| Locking Interface | With |
| Sealable | No |
| Hybrid Header | No |
| Mounting Orientation | Vertical/180 |
| Operating Temperature Range | -40 to 120 |
| Shielded | No |
| Mounting Holes | Without |
| Termination Method | Through Hole - Solder |
| Packaging Quantity | 500 |
| RoHS | True |
| Tab Width | .63 |
| Color | Natural |
| Interface Number | 114-18580 |
| Packaging Type | Loose Piece |
| Panel Mount Feature | Without |
| Interface Plating | Tin (Sn) |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
