5-1462037-1
RF Relay, DC, Bistable, 1 Coil, 2 Form C DPDT-CO, 2A Contact Rating, 1.5 VDC Coil Voltage, 250 VAC Contact Voltage, Axicom IM
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-1462037-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

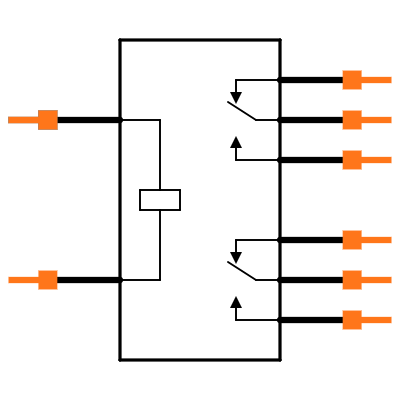

Symbol
No web preview
This Symbol is Available for

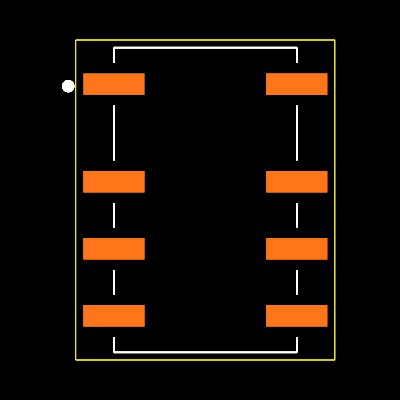

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-1462037-1
| Part Name | 5-1462037-1 |
| Manufacturer | TE Connectivity |
| Dimensions (L x W x H) (Approximate) | 10 x 6 x 5.65 |
| Coil Power Rating (DC) | 100 |
| Coil Special Features | Ultra High Sensitive Version |
| Contact Limiting Making Current (A) | 2 |
| Relay Type | IM Relay |
| Height Class (Mechanical) | 0 – 6 mm |
| Width | .222 |
| Insulation Initial Resistance | 1000000 |
| Contact Limiting Continuous Current (A) | 2 |
| Contact Switching Voltage (Max) (V) | 250 |
| Coil Resistance | 23 |
| Contact Current Class (A) | 0 – 2 A |
| Contact Arrangement | 2 Form C (2 CO) |
| Coil Type | Bistable |
| Contact Number of Poles | 2 |
| Contact Plating Material | Gold |
| TE Internal Number | 5-1462037-1 |
| Performance Type | Standard |
| Width Class (Mechanical) | 0 – 6 mm |
| Product Type | Relay |
| Terminal Type | PCB-SMT |
| Contact Special Features | Bifurcated/Twin Contacts |
| Insulation Initial Dielectric Between Contacts and Coil | 1800 |
| Operating Temperature Range | -40 – 85 |
| Coil Voltage Rating (V) | 1.5 |
| Packaging Method | Reel |
| Insertion Loss (HF Parameter) | -.33dB @ 900MHz |
| Environmental Ambient Temperature (Max) | 85 |
| Length | 10 |
| Length Class (Mechanical) | 0 – 10 mm |
| Contact Switching Load (Min) | .1mA @ .0001V |
| Insulation Special Features | 2500V Initial Surge Withstand Voltage between Contacts & Coil |
| Insulation Initial Dielectric Between Coil/Contact Class | 1500 V – 2500 VA |
| Coil Magnetic System | Bistable, 1 Coil |
| Actuating System | DC |
| RoHS | True |
| Isolation (HF Parameter) | -18.8dB @ 900MHz |
| Environmental Ambient Temperature Class | 70 – 85°C |
| Additional Features | Gull Wing |
| Weight | .026 |
| Mounting Type | Printed Circuit Board |
| Contact Limiting Short-Time Current (A) | 2 |
| Contact Current Rating (A) | 2 |
| Contact Limiting Breaking Current (A) | 2 |
| Coil Power Rating Class | 50 – 300 mW |
| Height | 5.65 |
| Voltage Standing Wave Ration (HF Parameter) (V) | 1.06 @ 100MHz |
| Termination Type | Surface Mount |
| Insulation Initial Dielectric Between Adjacent Contacts | 1000 |
| Contact Voltage Rating (V) | 250 |
| Environmental Category of Protection | RTV |
| Insulation Initial Dielectric Between Open Contacts | 1000 |
| Contact Material | PdRu+Au |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
