5-146468-5
SnapVerified
05 MODII HDR SRST UNSHRD STKG
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-146468-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

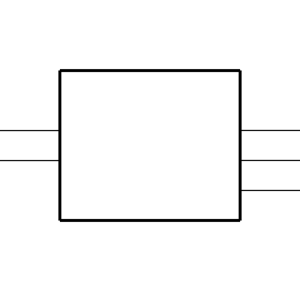

Symbol
No web preview
This Symbol is Available for

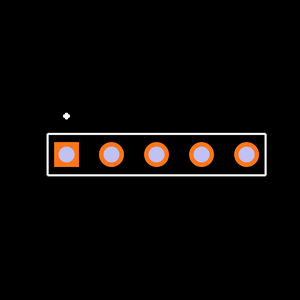

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-146468-5
| Part Name | 5-146468-5 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Stack Height | 20.32 |
| Housing Material | Thermoplastic |
| Insulation Resistance | 5000 |
| Number of Positions | 5 |
| PCB Mount Retention | Without |
| Approved Standards | UL E28476 |
| Termination Post & Tail Length | .12 |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Post Length | 2.79 |
| TE Internal Number | 5-146468-5 |
| PCB Mount Orientation | Vertical |
| Number of Rows | 1 |
| PCB Contact Termination Area Plating Material Thickness | 100 – 200 |
| Contact Base Material | Brass |
| Contact Shape | Square |
| Housing Color | Black |
| Operating Temperature Range | -65 – 125 |
| Packaging Method | Carton |
| Packaging Quantity | 480 |
| Stackable | Yes |
| Contact Layout | Inline |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Post Size | .025 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 100 – 200 |
| Contact Current Rating (Max) (A) | 3 |
| PCB Contact Termination Area Plating Material Finish | Matte |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the 5-146468-5
