5-1718323-1
39 way LEAVYSEAL group 5 E key tab housing for male terminals; with mating tab width .11 inch/2.8 millimeters.
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-1718323-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

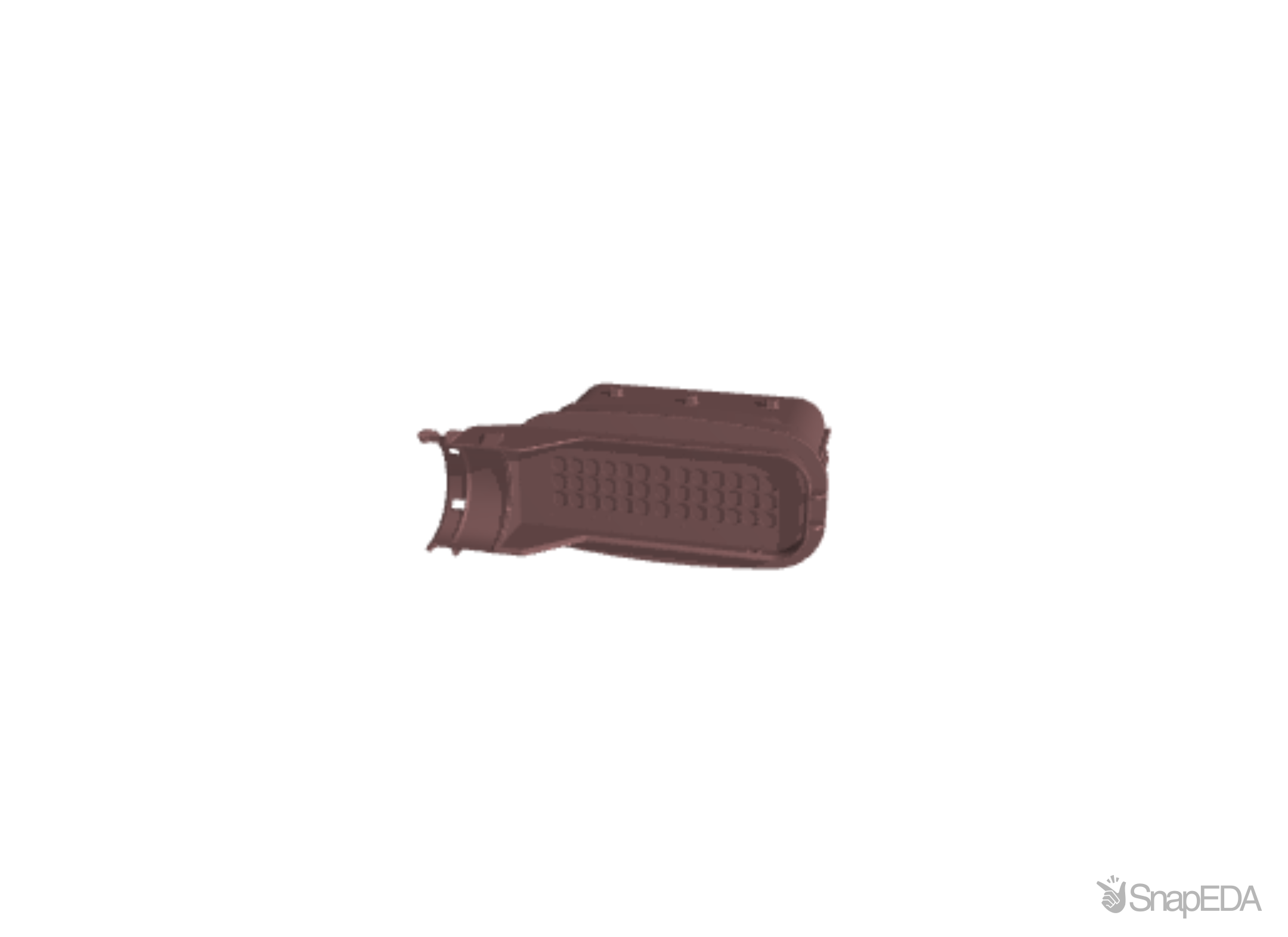

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-1718323-1
| Part Name | 5-1718323-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .197 |
| Circuit Application | Signal |
| Mounting Feature | Without |
| Width | 2.783 |
| Operating Voltage (V) | 36 |
| Connector Position Assurance Capable | No |
| Connector Style | Housing for male terminals |
| Number of Positions | 39 |
| Hybrid Connector | No |
| TE Internal Number | 5-1718323-1 |
| Connector System | Wire-to-Wire |
| Number of Rows | 3 |
| Sealable | Yes |
| Body Material | PBT GF |
| Terminal Position Assurance | Yes |
| Nominal Voltage Architecture (V) | 12 |
| Polarized | Yes |
| Operating Temperature Range | -40 – 248 |
| Degree of Protection | IP67 |
| Packaging Method | Box |
| Packaging Quantity | 80 |
| Length | 4.459 |
| Cable Exit Angle | 90° |
| Serviceable | Yes |
| RoHS | True |
| Mating Tab Width | .11 |
| Strain Relief | Yes |
| Color | Green |
| UL Flammability Rating | UL 94-HB |
| Height | 1.803 |
| Row-to-Row Spacing | 5.5 |
| Primary Locking Feature | On the Terminal |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Mounting Type | Plug-In |
| Gender | Male |
| Colour | Green |
| Height | 45.8 (mm) |
| Housing Material | PBT |
| Width | 113.25 (mm) |
| Depth | 70.7 (mm) |
| Number Of Rows | 3 |
| Minimum Operating Temperature | -40 (°C) |
| Number Of Contacts | 39 |
| Type | Automotive connector housing |
| Maximum Operating Temperature | +120 (°C) |
