5-292132-2
SnapVerified
CT P/HDR BOX V 12P YELLOW
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-292132-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

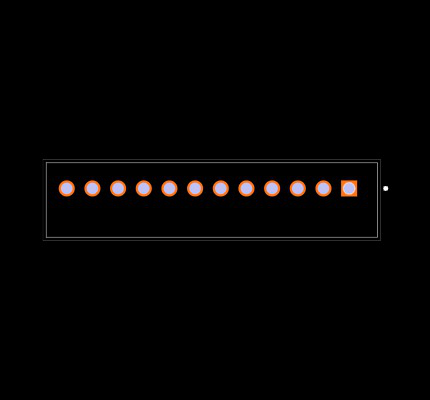

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-292132-2
| Part Name | 5-292132-2 |
| Manufacturer | TE Connectivity |
| Contact Retention Within Housing | Without |
| Contact Current Rating (Max) (A) | 4 A |
| Centerline (Pitch) | 2 mm[.079 in] |
| Agency/Standard | UL |
| Circuit Application | Power & Signal |
| Housing Material | 66 Nylon |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 125 VDC |
| PCB Mount Alignment Type | Kinked Legs |
| Number of Positions | 12 |
| PCB Mount Retention Type | Kinked Legs |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .8 mm[.031 .063 in] |
| Termination Post & Tail Length | 3.2 mm[.126 in] |
| CSA File Number | LR 7189 |
| Contact Shape & Form | Round,Rounded |
| Operating Temperature Range | -40 to 221 C[-40 to 105 F] |
| TE Internal Number | 5-292132-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 6.8 mm[.267 in] |
| Number of Rows | 1 |
| Agency/Standard Number | CSA,UL |
| Housing Color | Yellow |
| Connector Width | 5.8 mm[.228 in] |
| Contact Mating Area Plating Material Finish | Matte |
| Contact Base Material | Brass |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 1 m[39.37 in] |
| Mating Retention | Without |
| Connector Length | 25.8 mm[1.0157 in] |
| UL File Number | E28476 |
| Assembly Process Feature | Pick and Place Cover |
| Contact Mating Area Length | 4.2 mm[.165 in] |
| Packaging Method | Bag/Box |
| Packaging Quantity | 200 |
| Contact Layout | Inline |
| Round Termination Post & Tail Diameter | .6 mm[.024 in] |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Header Type | Shrouded |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Product Highlights | [PCB Connector Assembly Type=PCB Mount Header, Connector System=Wire-to-Board, Header Type=Shrouded, Sealable=No, Connector & Contact Terminates To=Printed Circuit Board, PCB Mount Orientation=Vertical, Number of Positions=12, Number of Rows=1, Operating Voltage=125 VAC, Contact Base Material=Brass, Contact Mating Area Plating Material=Tin, Contact Mating Area Plating Material Finish=Matte, Contact Mating Area Plating Material Thickness=1 m, Contact Type=Pin, Termination Post & Tail Length=3.2 mm, Termination Method to Printed Circuit Board=Through Hole - Solder, PCB Mount Retention Type=Kinked Legs, PCB Mount Alignment=Without, Mating Retention=Without, PCB Mount Retention=With, Connector Mounting Type=Board Mount, Centerline (Pitch)=2 mm, Housing Color=Yellow, Housing Material=66 Nylon, Wire Size=28 22 AWG, Operating Temperature Range=-40 221 C, Assembly Process Feature=Pick and Place Cover, Circuit Application=Power & Signal, UL Flammability Rating=UL 94V-0, Agency/Standard=UL, Agency/Standard Number=CSA,UL, CSA File Number=LR 7189, UL File Number=E28476, Packaging Quantity=200, Packaging Method=Bag/Box] |
| Contact Mating Area Plating Material Thickness | 1 m[39.37 in] |
| PCB Connector Assembly Type | PCB Mount Header |
| Mating Pin Diameter | .6 mm[.024 in] |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin |
| Wire Size | 28 22 AWG |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
No issues have been reported for the 5-292132-2
If you experienced any issues with the symbol or footprint, please report it.
