5-533285-2
SnapVerified
BOX II 4 ROW 120 POS RCPT ASSY
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-533285-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

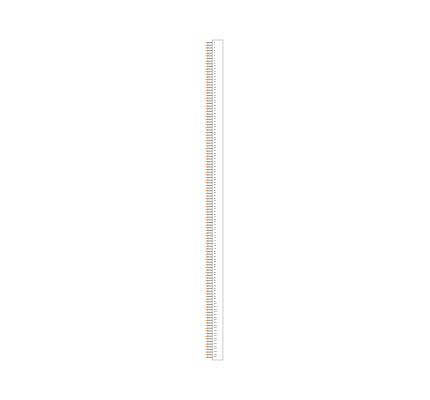

Symbol
No web preview
This Symbol is Available for

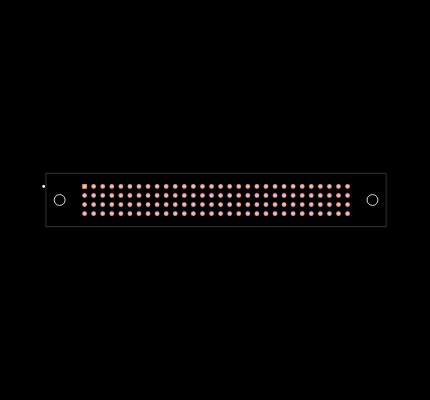

Footprint
No web preview
This Footprint is Available for

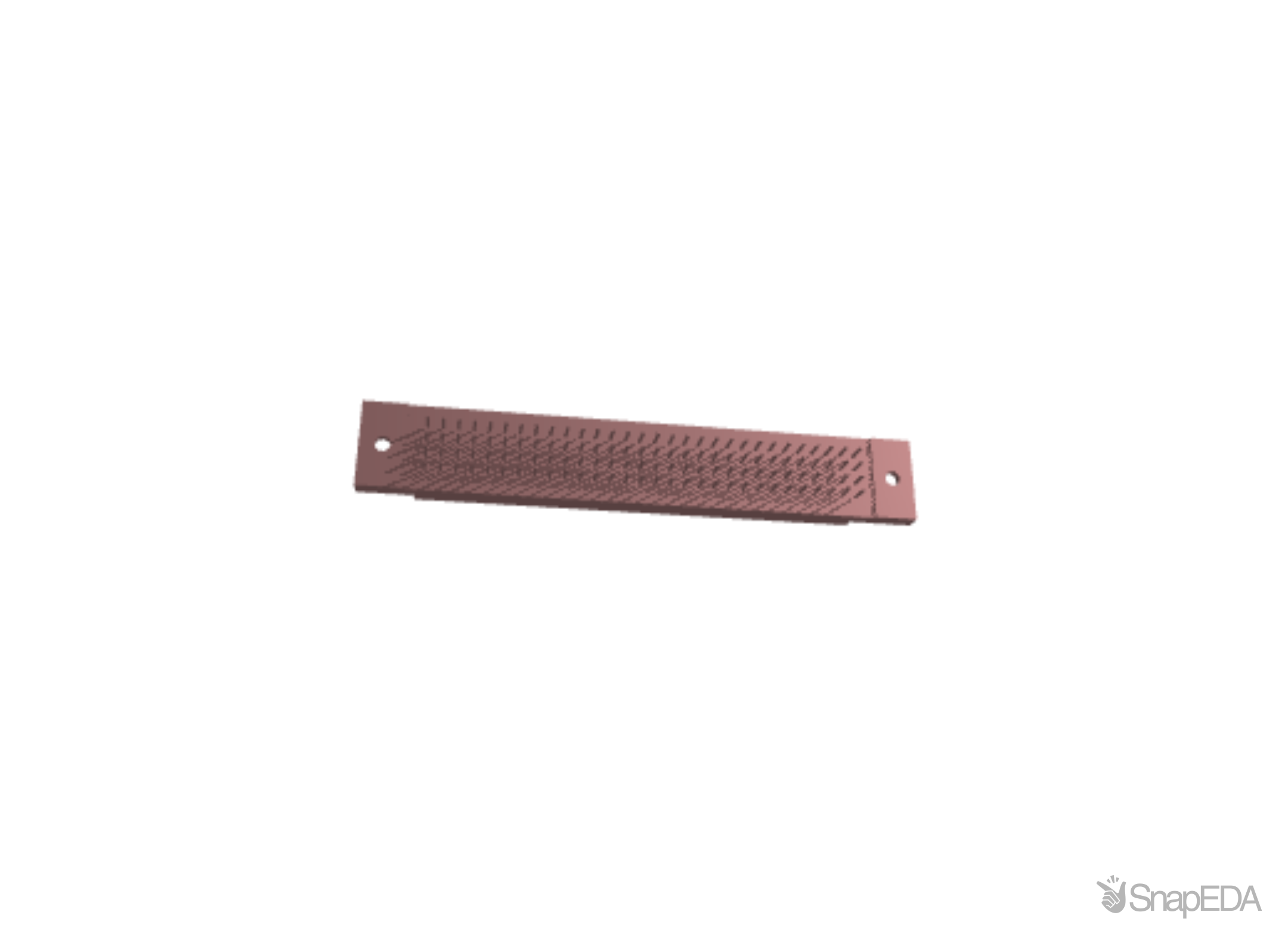

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-533285-2
| Part Name | 5-533285-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Number of Positions | 120 |
| PCB Mount Retention Type | Mounting Hole |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .093 |
| Termination Post & Tail Length | 3.78 |
| Contact Current Rating (Max) (A) | 3 |
| TE Internal Number | 5-533285-2 |
| PCB Mount Orientation | Vertical |
| Connector Height | 10.16 |
| Number of Rows | 4 |
| Housing Color | Brown |
| Contact Base Material | Beryllium Copper |
| Assembly Process Feature | None |
| Operating Temperature Range | -65 – 125 |
| Packaging Method | Tube |
| Packaging Quantity | 6 |
| Contact Configuration | Four-Beam |
| Contact Layout | Matrix |
| Make First / Break Last | No |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| RoHS | True |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Stack Height | .6 |
| Contact Mating Area Plating Material Thickness | 30 |
| Row-to-Row Spacing | 2.54 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| High Temperature Compatible | Yes |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Mating Alignment | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5-533285-2 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
216 x $209.43
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
6 x $303.24
|
Visit Site | |
| Heilind Americas |
|
216 x $223.39
|
Visit Site | |
| Interstate Connecting Components |
|
216 x $223.39
|
Visit Site | |
| Newark |
74
|
1 x $234.35
|
Visit Site | |
| Onlinecomponents |
74
|
|
Visit Site | |
| Powell Electronics |
49
|
6 x $245.72
|
Visit Site | |
| Sager |
|
6 x $293.19
|
Visit Site | |
| TME |
72
|
6 x $268.15
|
Visit Site | |
| Verical |
72
|
6 x $244.18
|
Visit Site |
No issues have been reported for the 5-533285-2
