5-747905-2
D Sub Connector, Amplimite Hdp-20, Amplimite Hdp-20 Series, De, Receptacle, 9, Steel, Solder
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-747905-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

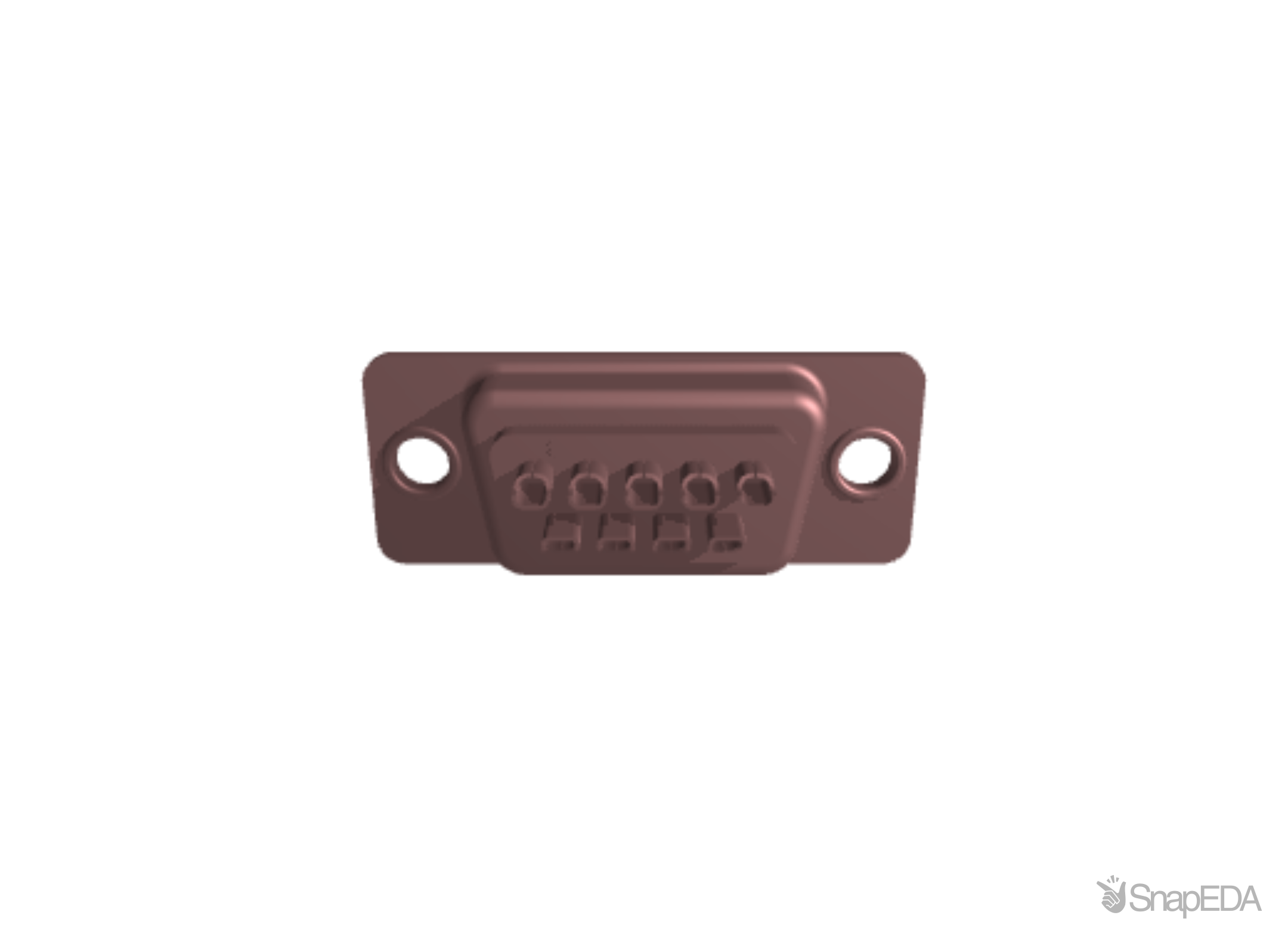

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-747905-2
| Part Name | 5-747905-2 |
| Manufacturer | TE Connectivity |
| Shell Plating Material | Tin |
| 実装方法 | Tray |
| Centerline (Pitch) | 2.77 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Insert Flammability Rating | UL 94V-0 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Shell Size | 1 |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Mounting Holes |
| Number of Positions | 9 |
| PCB Mount Retention Type | None |
| Termination Method to Wire & Cable | Solder |
| TE Internal Number | 5-747905-2 |
| Preloaded | Yes |
| Connector System | Cable-to-Board |
| Contact Underplating Material | Nickel |
| Grade | Standard |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Enclosure | Without |
| Contact Size | 20 |
| Operating Temperature Range | -55 – 105 |
| Shielded | Yes |
| Grounding Indents | Without |
| 端子の下地めっきの材料 | Nickel |
| Contact Mating Area Plating Material | Gold Flash |
| Contact Configuration | Solder Cup |
| Insert Material | Thermoplastic |
| RoHS | True |
| Mounting Angle | Straight |
| Contact Base Material | Phosphor Bronze |
| Color | Black |
| UL Flammability Rating | UL 94V-0 |
| Mating Connector Lock | With |
| Contact Current Rating (Max) (A) | 3 |
| Contact Mating Area Plating Thickness | .8 |
| Shell Type | Full Metal Shell |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin-Copper |
| Wire Size | .5 – .6 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Termination Method | Solder |
| Current Rating (A) | 3 (A) |
| Dimensions | 30.8 x 12.5 x 14.9 (mm) |
| D-Sub Shell Size | E |
| Voltage Rating (V) | 250.0 V |
| Gender | Female |
| Body Orientation | Straight |
| Pitch | 2.77 (mm) |
| Depth | 14.9 (mm) |
| D Connector Type | Standard D-Sub |
| Housing Material | Steel |
| Width | 12.5 (mm) |
| Length | 30.8 (mm) |
| Minimum Operating Temperature | -55.0 (°C) |
| Series | Amplimite HD-20 |
| Mounting Type | Panel Mount |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 9 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Phosphor Bronze |
No issues have been reported for the 5-747905-2
