5-917691-1
Rectangular Connector Housings 2.5 SIGNAL D/LOCK PLUG HSG 7P GWT
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5-917691-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

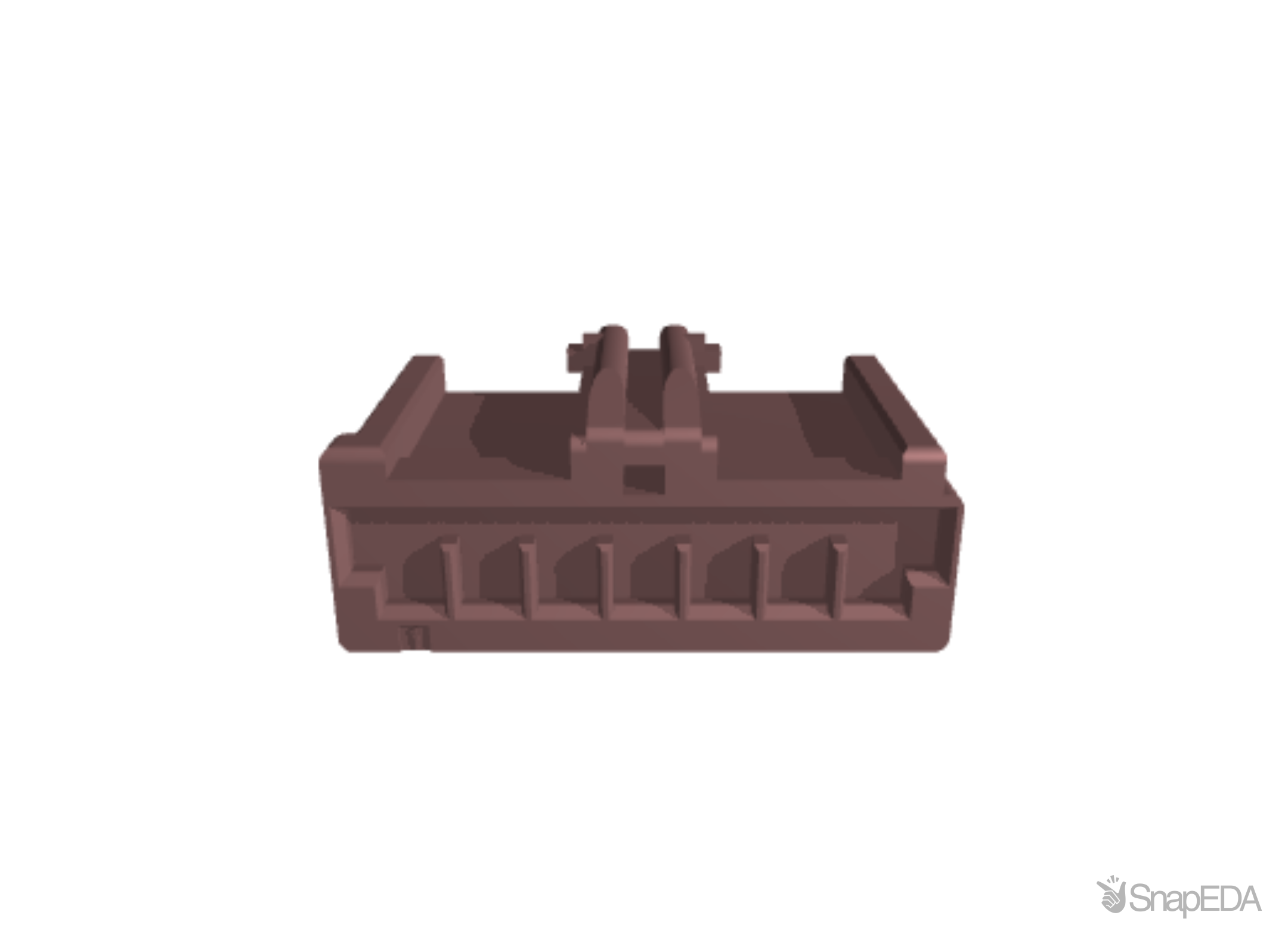

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5-917691-1
| Part Name | 5-917691-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.5 |
| Circuit Application | Signal |
| Multiple Contact Types | Without |
| Housing Material | Nylon 66 |
| Operating Voltage (V) | 250 |
| Circuit Identification Feature | Without |
| Connector Style | Plug |
| Connector & Contact Terminates To | Printed Circuit Board |
| VDE Tested | Yes |
| Contact Current Rating (Max) (A) | 3 |
| TE Internal Number | 5-917691-1 |
| UL Rating | Recognized |
| Connector System | Wire-to-Board |
| Number of Rows | 1 |
| Housing Color | Natural |
| Product Type | Connector |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| UL File Number | E28476 |
| Operating Temperature Range | -22 – 221 |
| CSA Certified | Yes |
| Packaging Method | Bag |
| Connector Type | Housing |
| Shunts/Shorting Bars | Without |
| Agency/Standard | CSA |
| Length | 20 |
| Number of Positions | 7 |
| Packaging Quantity | 300 |
| CSA Rating | Certified |
| Insertion Force | 5.88 Newton |
| RoHS | True |
| Sealable | No |
| Assembly Integration Feature | Without |
| Height | 11 |
| Row-to-Row Spacing | 2.5 |
| CSA File Number | LR7189 |
| Contact Retention | Without |
| Contact Type | Socket |
| Preloaded | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
