50.12.9.024.1000

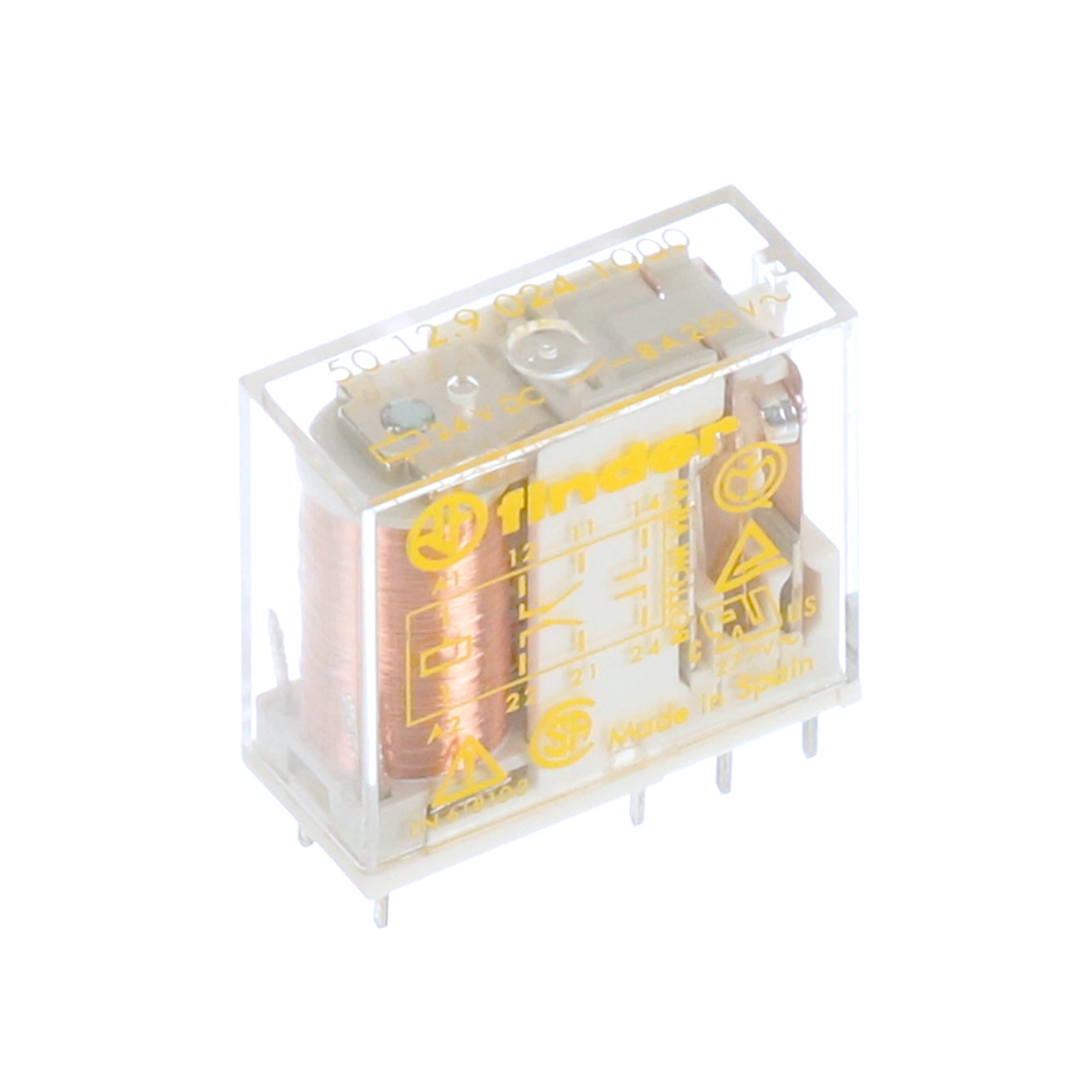

Relay with forcibly guided contacts, DPDT 8A, 24V DC coil, AgNi contact | Finder 50.12.9.024.1000
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 50.12.9.024.1000 by Finder and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 50.12.9.024.1000
| Part Name | 50.12.9.024.1000 |
| Manufacturer | Finder |
| Category | Industrial Controls |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Depth | 12.4 (mm) |
| Life | 100000 (Electrical) Cycles, 10000000 (Mechanical) (Cycles) |
| Standards Met | EN61810-3 type B |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage (Ac) (V) | 400 (V) |
| Coil Power | 700 (mW) |
| Series | 50 |
| Switching Current (A) | 8 (A) |
| Coil Voltage (V) | 24 (V dc) |
| Number Of Poles | 2 |
| Length | 29 (mm) |
| Height | 25 (mm) |
| Coil Resistance | 820 (Ω) |
| Maximum Switching Power (Ac) | 2 k (VA) |
| Minimum Operating Temperature | -40 (°C) |
| Isolation Coil To Contact | 6 (kV) |
| Contact Configuration | DPDT |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Through Hole |
| Contact Material | Silver Alloy |
Inventory for the 50.12.9.024.1000 by Finder from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
826
|
|
Visit Site | |
| RS Americas |
422
|
|
Visit Site | |
| Verical |
704
|
|
Visit Site |
No issues have been reported for the 50.12.9.024.1000
