500762-0481

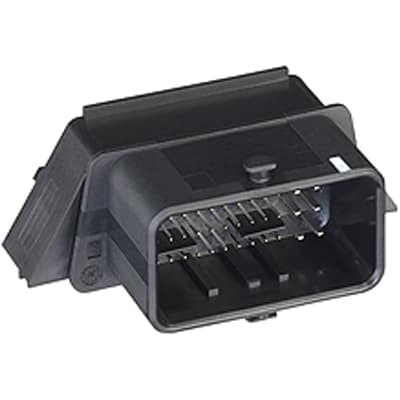

CMC Series, 48 Way Through Hole Plug Header, with Solder Termination | Molex Incorporated 500762-0481
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 500762-0481 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

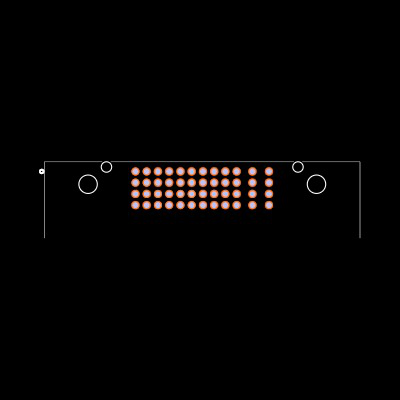

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 500762-0481
| Part Name | 500762-0481 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Copper Alloy |
| Series | CMC |
| Current Rating (A) | 6 (A) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Through Hole |
| Gender | Male |
| Colour | Black |
| Height | 27 (mm) |
| Housing Material | PBT |
| Width | 69.9 (mm) |
| Depth | 49 (mm) |
| Number Of Rows | 4 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 48 |
| Type | Header |
| Maximum Operating Temperature | +105 (°C) |
| Series Number | 500762 |
