501568-0607

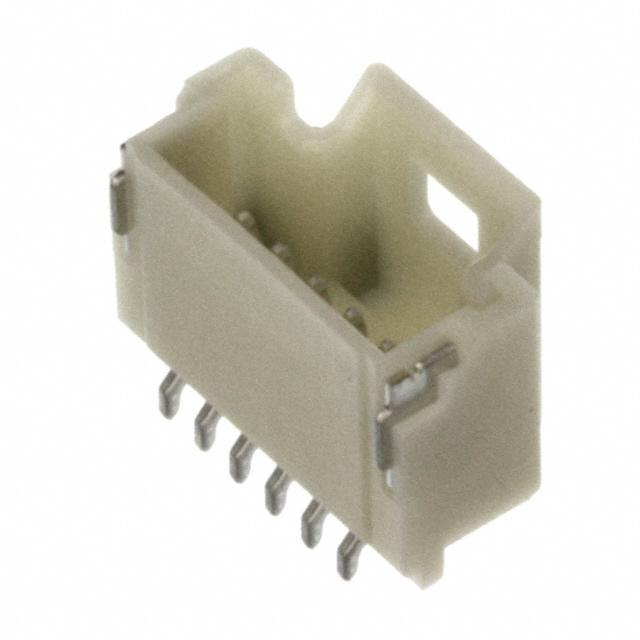

6w single row smt right-angle header 1mm | Molex Incorporated 501568-0607
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 501568-0607 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 501568-0607
| Part Name | 501568-0607 |
| Manufacturer | Molex |
| Category | Connectors |
| Design Resource | https://www.molex.com/molex/custom-cable-creator/snapeda |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Brass |
| Current Rating (A) | 1.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50.0 V |
| Series | Pico-Clasp |
| Body Orientation | Right Angle |
| Pitch | 1.0 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Number Of Contacts | 6 |
| Series Number | 501568 |
