501571-2007
Headers, 20CKT WTB CONN DR RIGHT ANGLE | Molex Incorporated 501571-2007
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 501571-2007 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

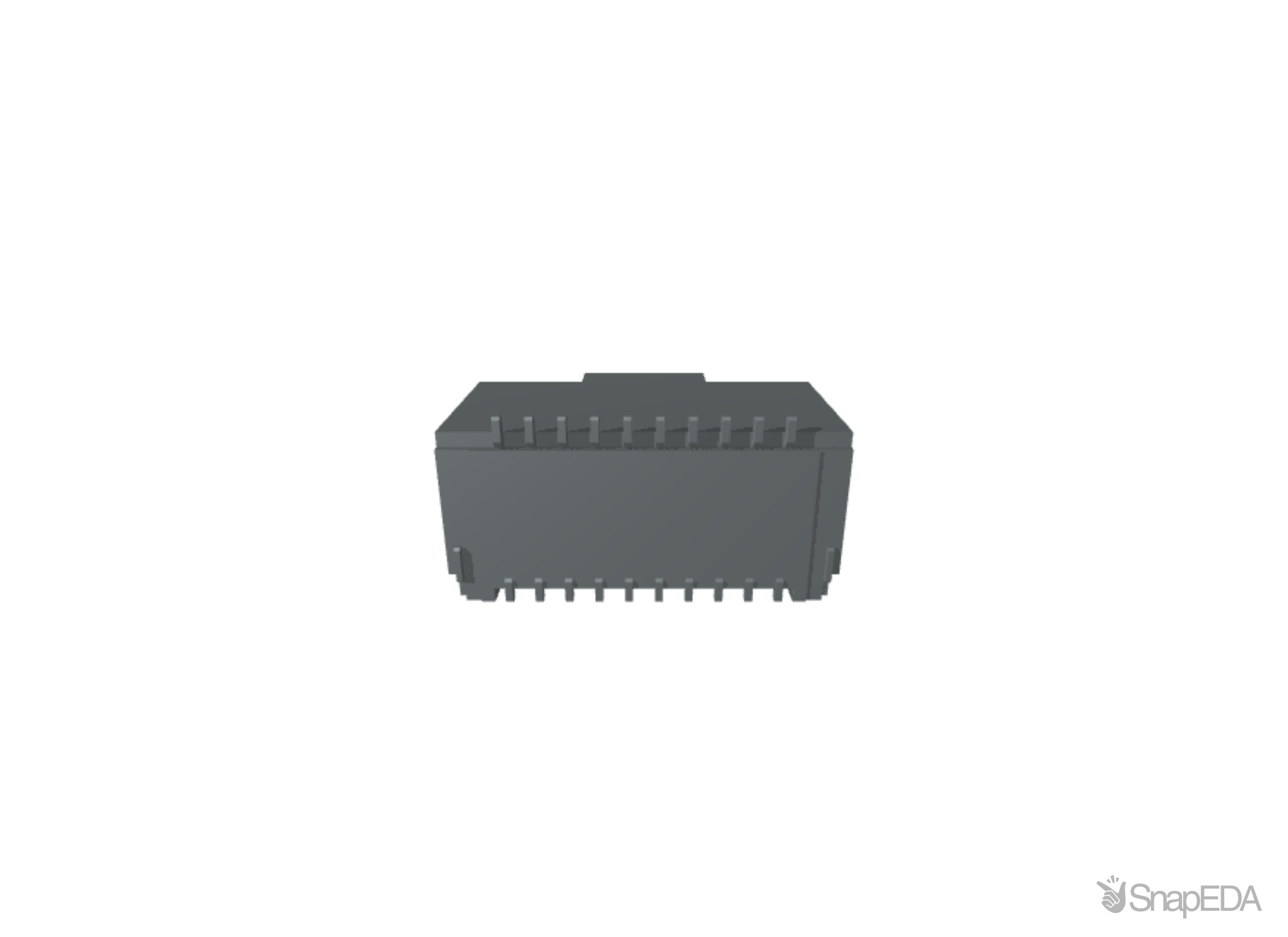

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 501571-2007
| Part Name | 501571-2007 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.0 (A) |
| Shrouded Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50.0 V |
| Series | Pico-Clasp |
| Body Orientation | Right Angle |
| Pitch | 1.0 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 20 |
| Series Number | 501571 |
Inventory for the 501571-2007 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
9,456
|
|
Visit Site | |
|
★ Featured
|
3,756
|
515 x $0.68
|
Visit Site | |
| Arrow Europe |
7,200
|
800 x $1.52
|
Visit Site | |
| Avnet America |
14,400
|
|
Visit Site | |
| Chip One Stop |
3,131
|
|
Visit Site | |
| Heilind Electronics |
133
|
|
Visit Site | |
| Newark |
14,400
|
|
Visit Site | |
| Onlinecomponents |
3,131
|
|
Visit Site | |
| RS Americas |
44
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TTI Americas |
3,200
|
800 x $0.98
|
Visit Site | |
| Verical |
7,200
|
800 x $1.06
|
Visit Site |
No issues have been reported for the 501571-2007
If you experienced any issues with the symbol or footprint, please report it.
